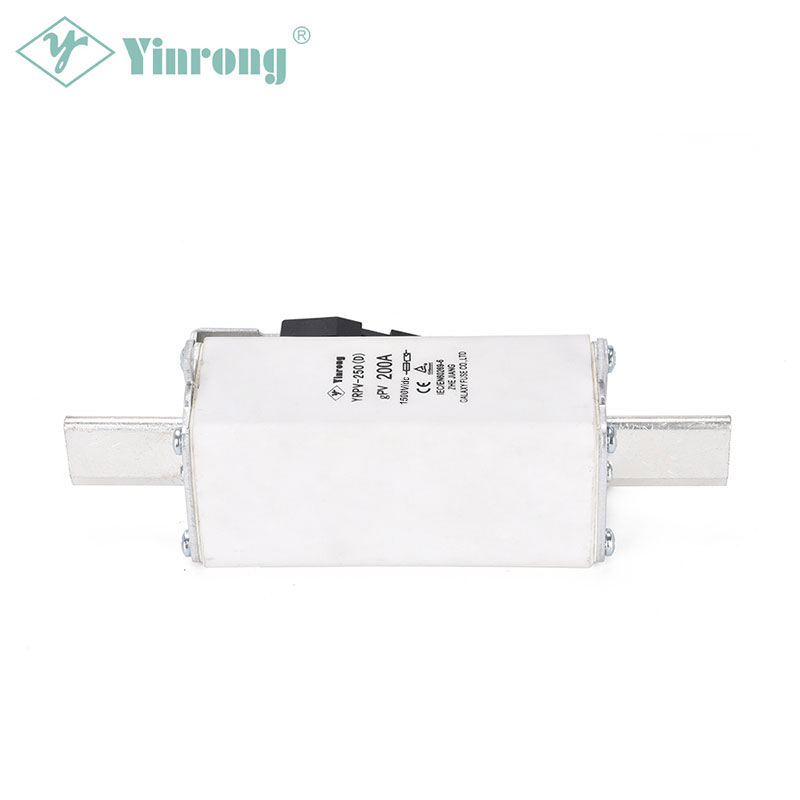

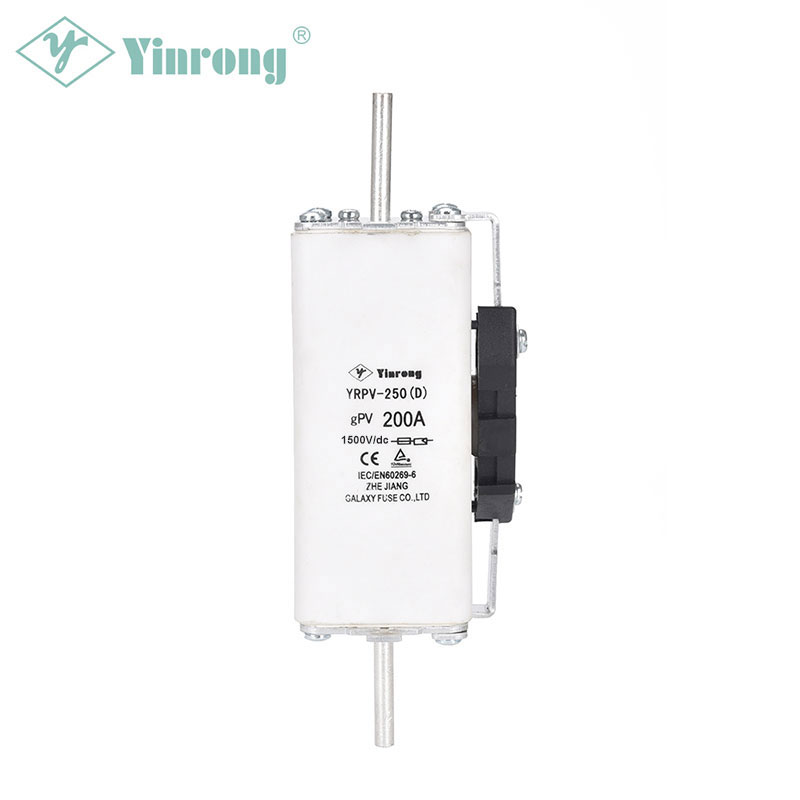

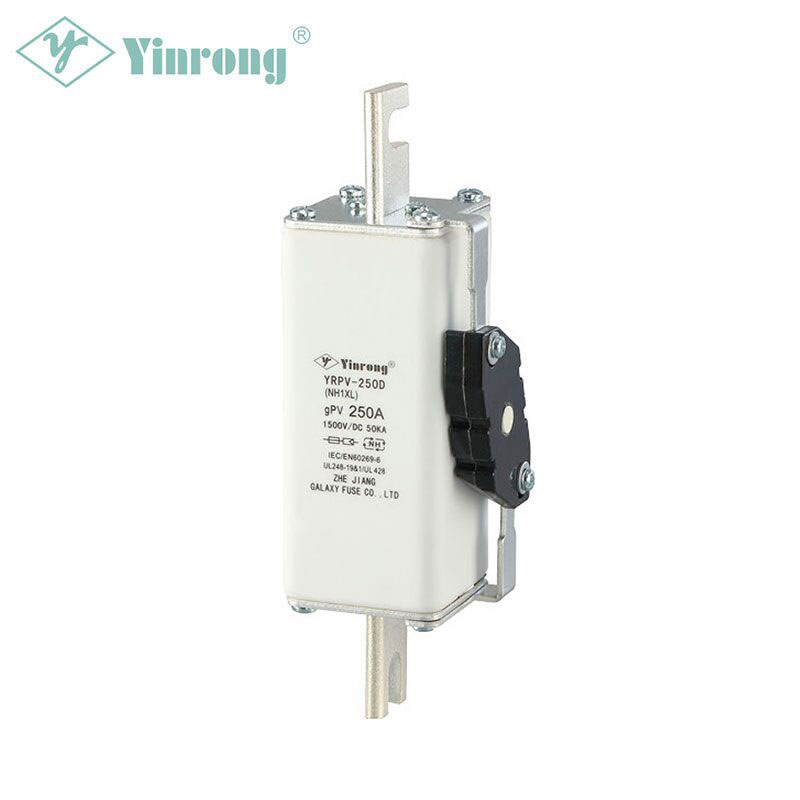

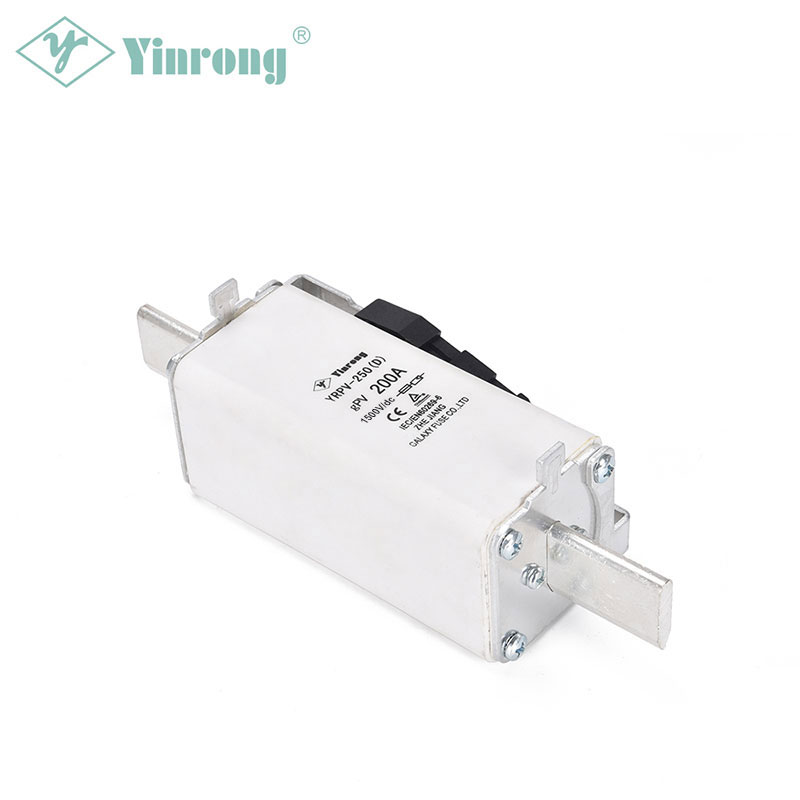

1500VDC 250A NH1XL Solar PV Fuse Link
YRPV-250(D)
Galaxy Fuse is a leading China 1500VDC 250A NH1XL Solar PV Fuse Link manufacturers. Chinese fuse supplier Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) constantly developing and innovating high-level performance Solar PV Fuse products to meet the emerging needs of the Photovoltaic (PV) industry. YRPV-250D 1500VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced construction fuse link with an NH1XL standardized size can protect 1500VDC Photovoltaic (PV) systems effectively. YRPV-250D 1500VDC Solar PV Fuse Link offers various ampere ratings from 80A to 250A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV Combiner box, PV array, PV Inverter DC input.
Model:YRPV-250(D)
Send Inquiry
Product Description
1500VDC 250A NH1XL Solar PV Fuse Link
• GB/T13539.6
• gPV
• 80-250A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized NH1XL construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• Striker and microswitch available
• PV array protection
• Inverters
• In-line PV module protection
• Microswitch
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION
Approvals & Standards
• IEC60269-6
• GB/T13539.6
Class of Operation
• gPVFeatures & Benefits
• 1500VDC Photovoltaic (PV) system available• 80-250A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized NH1XL construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• Striker and microswitch available
Applications
• Combiner box• PV array protection
• Inverters
• In-line PV module protection

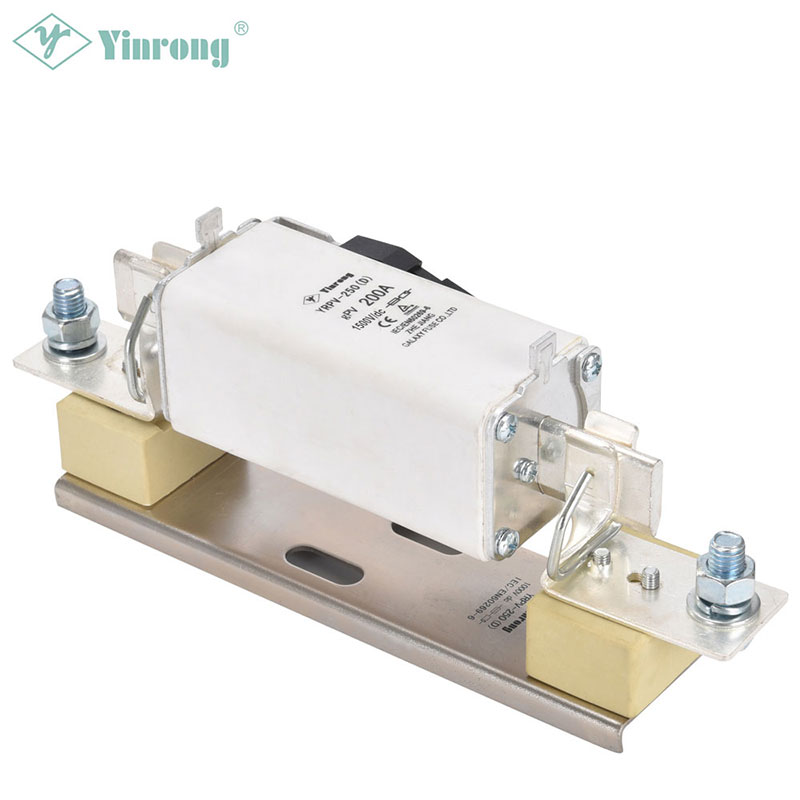

Recommended Fuse Holder
• YRPV-250D 1500VDC Fuse BaseOptional Accessories
• Striker• Microswitch
Country of Origin
• People's Republic of ChinaParameters
| Product code | Rated current | Breaking capactity | Safety certificate | Power loss1.0In(W) | Net weight | ||
|---|---|---|---|---|---|---|---|
|
|
|
|||||
| YRPV250DNA/SH | 80-250A | 1500Vdc | ○ | ○ | ○ | 37.5 | 0.925kg |
Size (mm)
Model Explanation
① ……Galaxy fuse code……YR
②……“Photovoltaic”……PV
③……Maximum rated current of fuse……250A
④ ……Rated current of fuse link……E.g:200A
Time-current Curve
