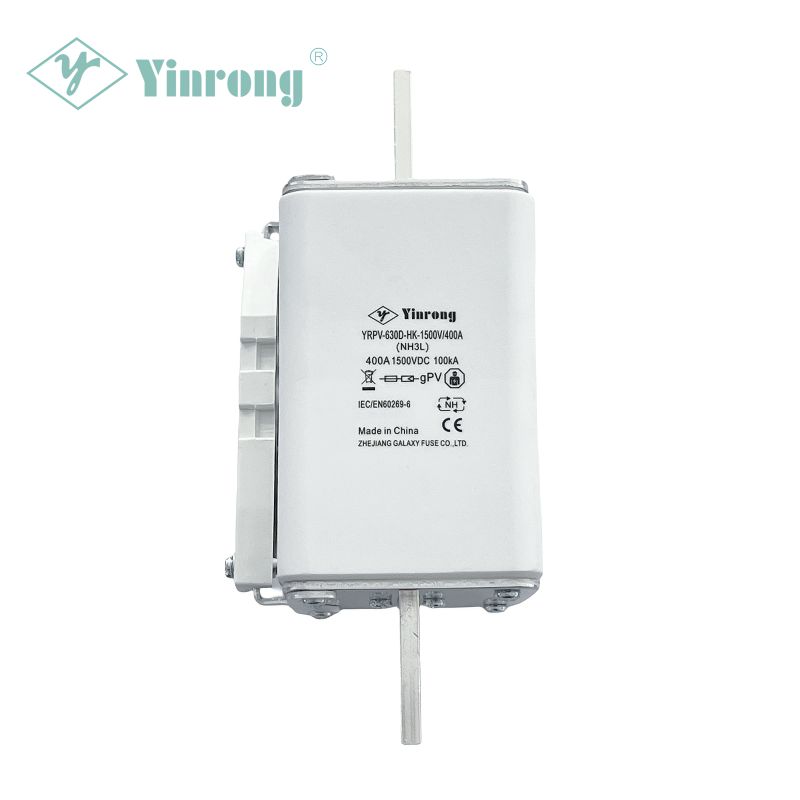

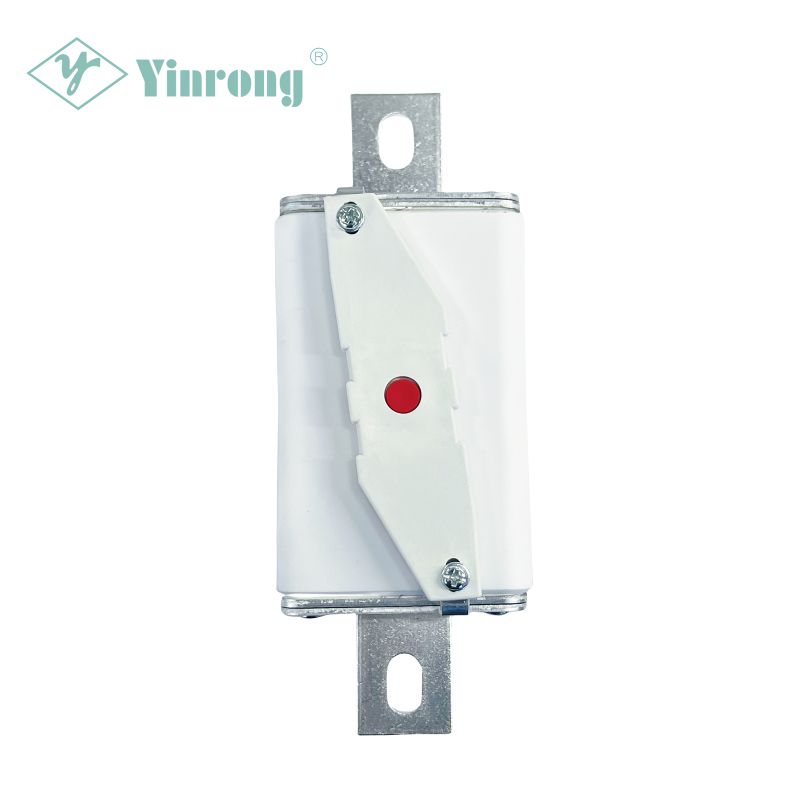

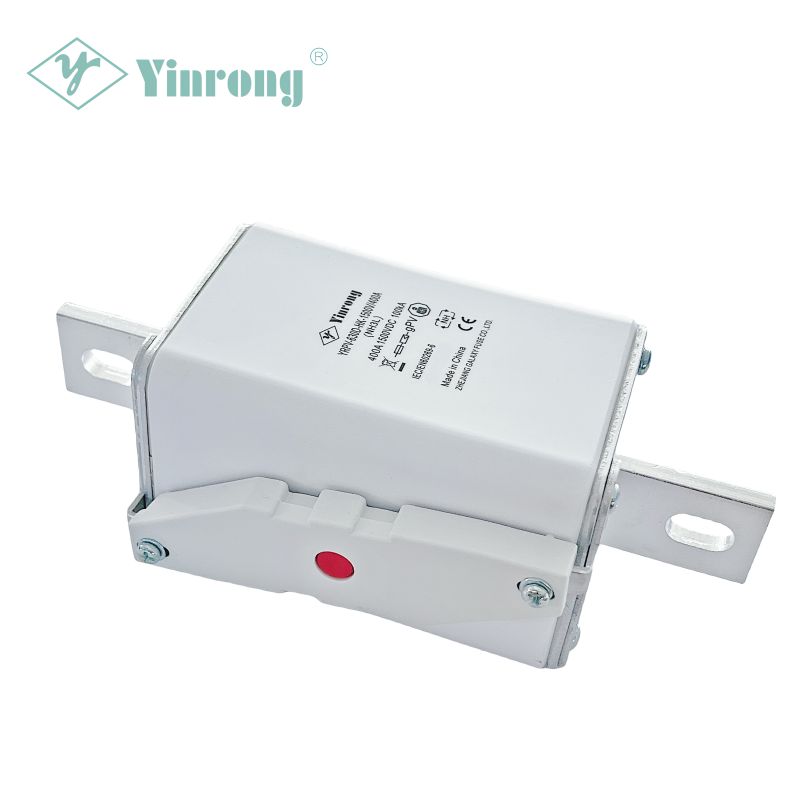

1500VDC 630A 3L Bolt type Solar PV Fuse Link

YRPV-630D-HK

Galaxy Fuse is a leading China 1500VDC 630A 3L Bolt type Solar PV Fuse Link manufacturers. Chinese Fuse manufacturer Zhejang Galaxy Fuse Co., Ltd. (Yinrong) designed and manufactured Solar PV Fuse independently to meet the emerging needs of the Photovoltaic (PV) industry aroundthe world.YRPV-630D 1500VDC Bolt type Solar PV Fuse Link is specifically engineered to protecting Photovoltaic (PV) array combiners and DC disconnects. This NH construction fuse link with an 3L standardized size can protect 1500VDC Photovoltaic (PV) systems effectively. YRPV-630D-HK 1500VDC Solar PV Fuse Link offers various ampere ratings from 315A to 630A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV array protection,PV inverter DC input protection and so on.

Model:YRPV-630D-HK

Send Inquiry

Product Description

YRPV-630D-HK 1500VDC 630A 3L Bolt type Solar PV Fuse Link is a bolted type full range of photovoltaic protection fuse, with low arc pressure, low power consumption, high breaking ability. Protect and insulate photovoltaic cell modules or arrays, as well as protect other cooperating circuit systems.

Approvals & Standards

• IEC60269-1

• GB13539.1

• IEC60269-6

• GB13539.6

Class of Operation

• gPV

Features & Benefits

• 1500VDC Photovoltaic (PV system available 315-630A ampere ratings available)

• Meets IEC60269-6 standard for global acceptancestandardized 3L construction

• Low power dissipation design for high energy efficiency

• NH screw mountable

• 100kA breaking capacity

• Striker and microswitch available

Applications

• PV array level protection

• In-line PV module protection

• Inveters

• Re-combiner units

Optional Accessories

• Striker

• Microswitch

Country of Origin

• Zhejiang,China

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	Power Loss （W）
YRPV-630D-HK-1500V/315A	1500	315	CE:100kA	56
YRPV-630D-HK-1500V/350A		350		59
YRPV-630D-HK-1500V/355A		355		60
YRPV-630D-HK-1500V/400A		400		63
YRPV-630D-HK-1500V/450A		450		67
YRPV-630D-HK-1500V/500A		500		73
YRPV-630D-HK-1500V/630A		630		80

Size（mm）

Time-Current Curve
