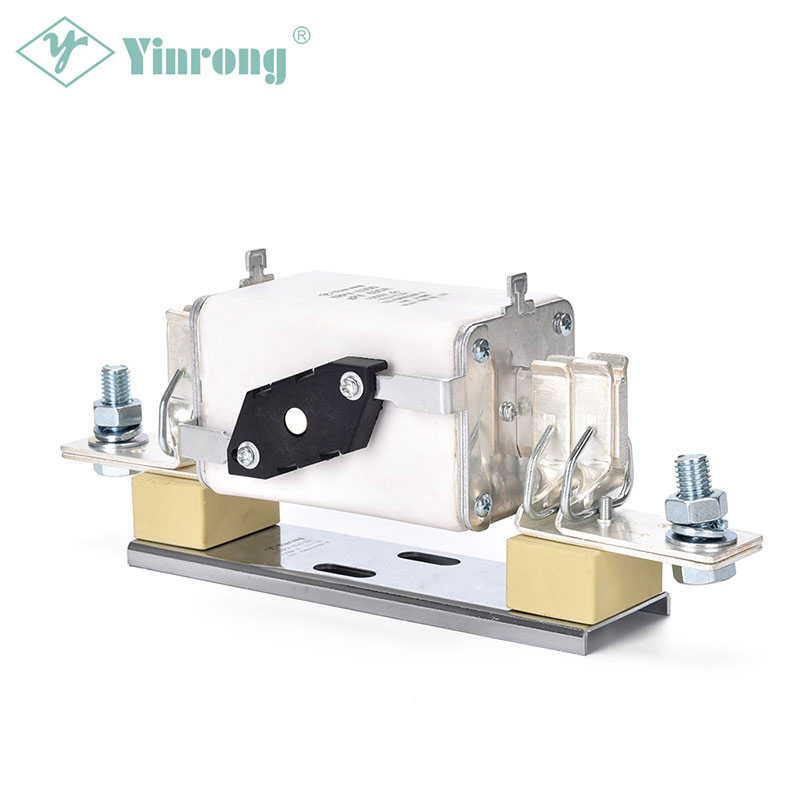

1500VDC 630A 3L Solar PV Fuse Link

YRPV-630(D)

Galaxy Fuse is a leading China 1500VDC 630A 3L Solar PV Fuse Link manufacturers. Chinese PV Fuse manufacturer Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) designed and manufactured Solar PV Fuse independently to meet the emerging needs of the Photovoltaic (PV) industry around the world. YRPV-630D 1500VDC Solar PV Fuse Link is specifically engineered to protecting Photovoltaic (PV) array combiners and DC disconnects. This NH construction fuse link with an 3L standardized size can protect 1500VDC Photovoltaic (PV) systems effectively. YRPV-630D 1500VDC Solar PV Fuse Link offers various ampere ratings from 315A to 630A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV array protection, PV Inverter DC input protection.

Model:YRPV-630(D)

Send Inquiry

Product Description

1500VDC 630A 3L Solar PV Fuse Link

Approvals & Standards

• IEC60269-6
• GB/T13539.6

Class of Operation

• gPV

Features & Benefits

• 1500VDC Photovoltaic (PV) system available
• 315-630A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized 3L construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• 20kA breaking capacity
• Striker and microswitch available

Applications

• Combiner box
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection

Recommended Fuse Holder

• YRPV-630D 1500VDC Fuse Base

Optional Accessories

• Striker
• Microswitch

Country of Origin

• People's Republic of China

Parameters

Product code	Rated current	Breaking capactity	Safety certificate			Power loss1.0In(W)	Net weight
Product code	Rated current	Breaking capactity				Power loss1.0In(W)	Net weight
YRPV630D/315NH	315A	1500Vdc TUV&CE:20kA	○	○	○	44.4	1.35kg
YRPV630D/350NH	350A		○	○	○	52.3
YRPV630D/400NH	400A		○	○	○	58.2
YRPV630D/500NH	500A		○	○	○	52.5
YRPV630D/630NH	630A		○	○	○	91.9

Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)

Model Explanation

① ……Galaxy fuse code……YR

②……“Photovoltaic”……PV

③……Maximum rated current of fuse……630A

④ ……Rated current of fuse link……E.g:500A

Time-current Curve
