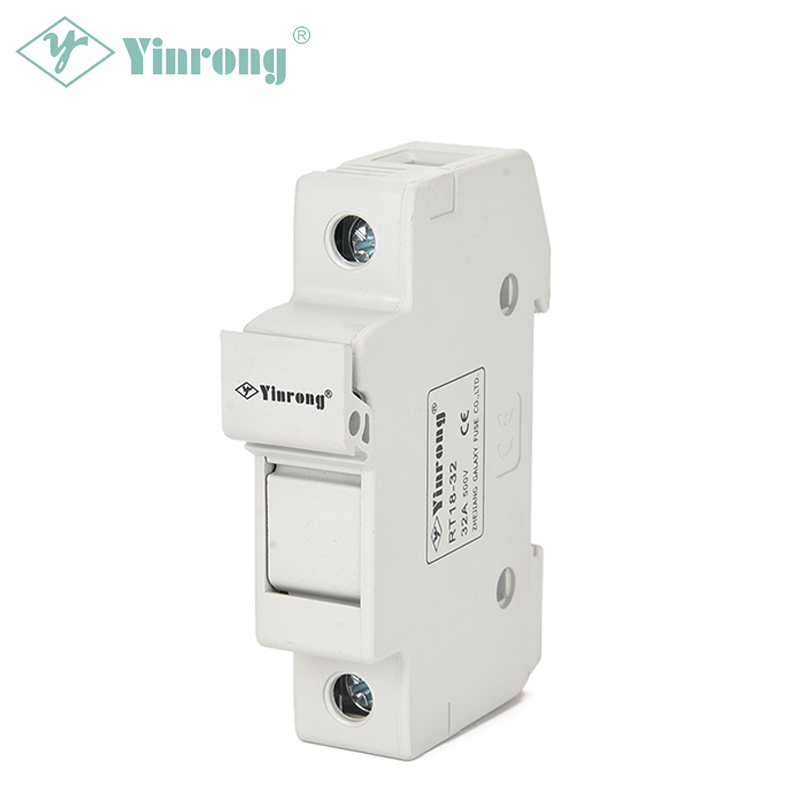

500VAC 32A 10×38mm DIN Rail Fuse Holder
  • 500VAC 32A 10×38mm DIN Rail Fuse Holder500VAC 32A 10×38mm DIN Rail Fuse Holder
  • 500VAC 32A 10×38mm DIN Rail Fuse Holder500VAC 32A 10×38mm DIN Rail Fuse Holder
  • 500VAC 32A 10×38mm DIN Rail Fuse Holder500VAC 32A 10×38mm DIN Rail Fuse Holder
  • 500VAC 32A 10×38mm DIN Rail Fuse Holder500VAC 32A 10×38mm DIN Rail Fuse Holder
  • 500VAC 32A 10×38mm DIN Rail Fuse Holder500VAC 32A 10×38mm DIN Rail Fuse Holder

500VAC 32A 10×38mm DIN Rail Fuse Holder

Galaxy Fuse’s (Yinrong) RT18-32(X) 10×38mm Fuse Holder is specifically designed to provide fast-acting protection under overload current conditions associated with industrial applications. The recommended fuse link size is 10×38mm, which can safely protect general industrial applications. All circuits up to 690V for protection of motors, transformers, low voltage distribution, control circuits and so on. RT18-32(X) 10×38mm Fuse Holder was made of the flame-retardant shell with V0 standard, and the dead-front design made it possible to match the busbar mounting. RT18-32(X) 10×38mm Fuse Holder is also available in 1, 2, 3 and 4-pole configurations.

Send Inquiry

Product Description

500VAC 32A 10×38mm DIN Rail Fuse Holder

Approvals & Standards

• IEC60269-1
• IEC60269-2

Class of Operation

• gG/gL
• aM
• aR

Features & Benefits

• RT18-32 10×38mm Fuse Link recommended
• Covering 250VAC, 380VAC, 500VAC, and 690VAC electrical distribution circuits and various industrial applications
• 32A ampere ratings
• Available in 1, 2, 3 and 4-pole configurations
• Meets IEC standards for global acceptance
• Flame retardant shell with V0 standard
• Low temperature rise for better performance of the circuit protection
• DIN Rail mounting
• No fuse pullers or tools required for fuse removal

Applications

• Motor protection
• Transformers
• Low voltage distribution
• Control circuits

Recommendations:

• Do not operate under load
• Use 75°C CU wire only

Country of Origin

• People's Republic of China

Parameters

Product code Rated current Rated Voltage
Recommended Fuse Link Model/Size
Net weight
RT18-32 32A 380VAC

500VAC

RT18-32(Φ10.3*38mm) 58.5g
RT18-32X
32A 61.5

Size (mm)
