690V Flush End Square Body High Speed Fuse

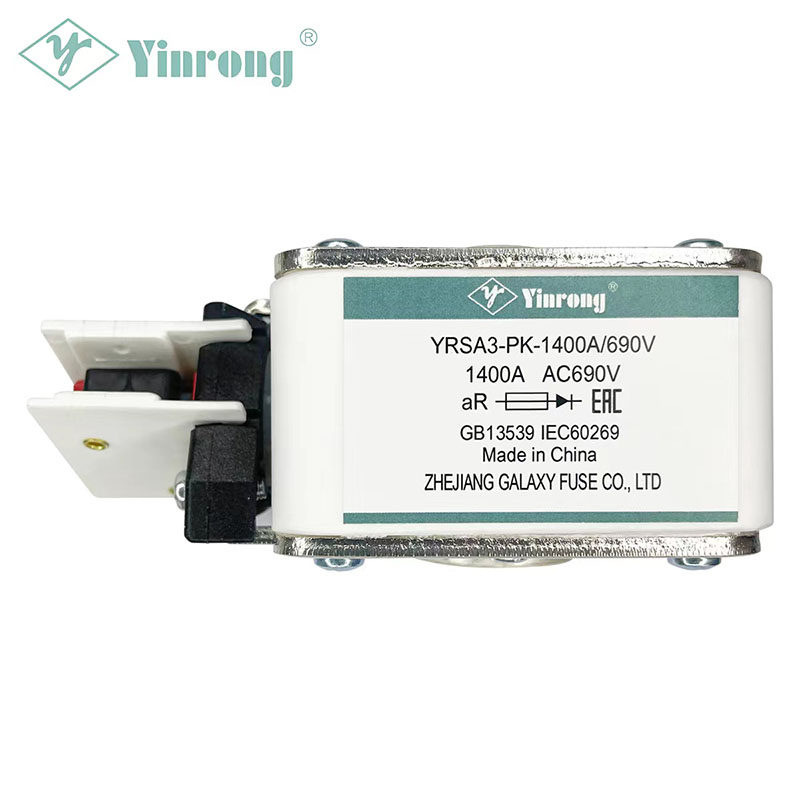

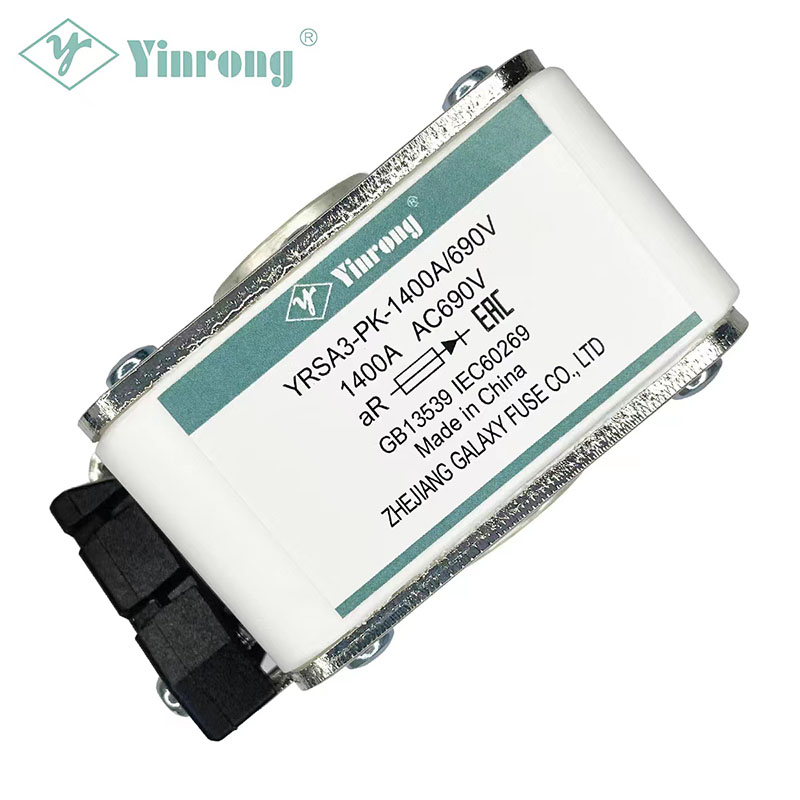

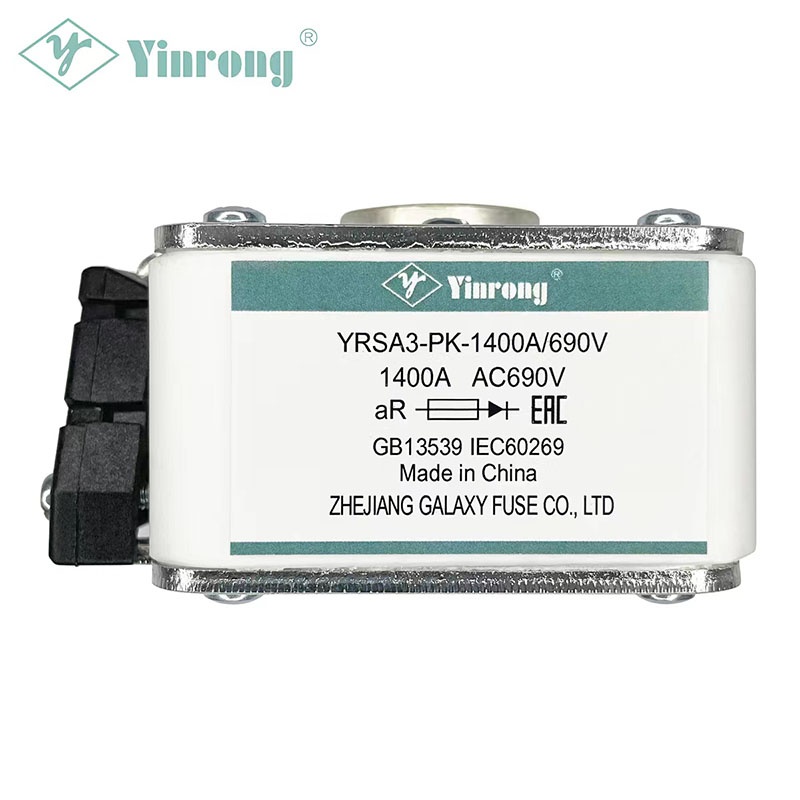

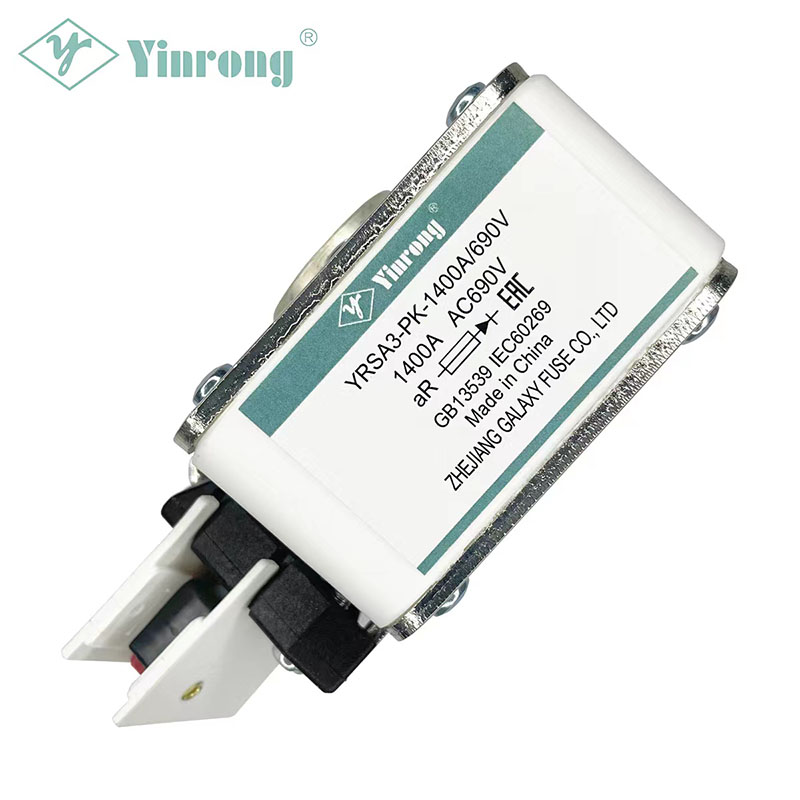

Galaxy Fuse is a leading China 690V Flush End Square Body High Speed Fuse manufacturers. China fuse supplier Galaxy Fuse (Yinrong)’s YRSA3-PK square body high speed fuse provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These square body fuses are available in two different operation classes gR and aR. YRSA3-PK gR fuse is designed for both overload and short-circuit protection. YRSA3-PK aR fuse is designed for short-circuit protection only. YRSA3-PK Square body high speed fuse is specially designed to protect semiconductor devices, provides a wide amperage rating of 500-2000A under the rated voltage of 690V/700VAC, which can fit most semiconductor devices. This YRSA3-PK Square body high speed fuse conformed to the nation standard GB13539.4 and the international electrical committee standard IEC60269-4. This square series of fuses for semiconductor equipment protection has low I²t value, high current limiting capability and high breaking capability. Many square body fuses are equipped with a trip-indicator. This trip indicator can operate a field-mountable micro switch which is easily mounted directly to busbar. Galaxy Fuse (Yinrong) also affords various high speed fuses to meet global requirements.

Send Inquiry

Product Description

Approvals & Standards

• GB/T13539.4
• IEC60269-4

Class of Operation

• gR
• aR

Features & Benefits

• 690V(IEC)/700V(UL) AC electrical system available
• 500-2000 ampere ratings available
• Extremely high Interrupting rating
• Superior cycling ability
• High current limitation
• Direct busbar mount design

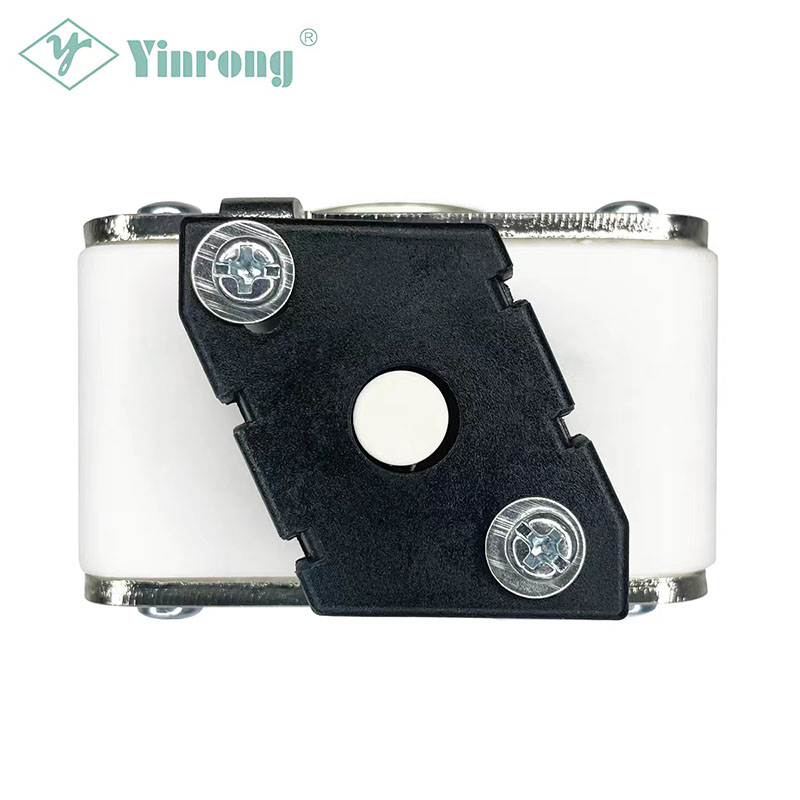

• Visual micro switch fuse blown indication
• Conforms to IEC standards for global acceptance

Applications

• Power rectifiers
• Semiconductor
• DC drives
• ESS battery pack
• DC Common bus
• Power converters
• Other power conversion devices

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	A±2	B±2	C±2	D±2.5	E±1	F	G±1
YRSA3-PK	690VAC (IEC) 700VAC (UL)	500-2000A	AC: 200kA	53(65)	44	75	92	φ30	M12	10
①YRSA3-PK: 1600-2000A, A=65 ②G: stud screw-in depth

Size (mm)
