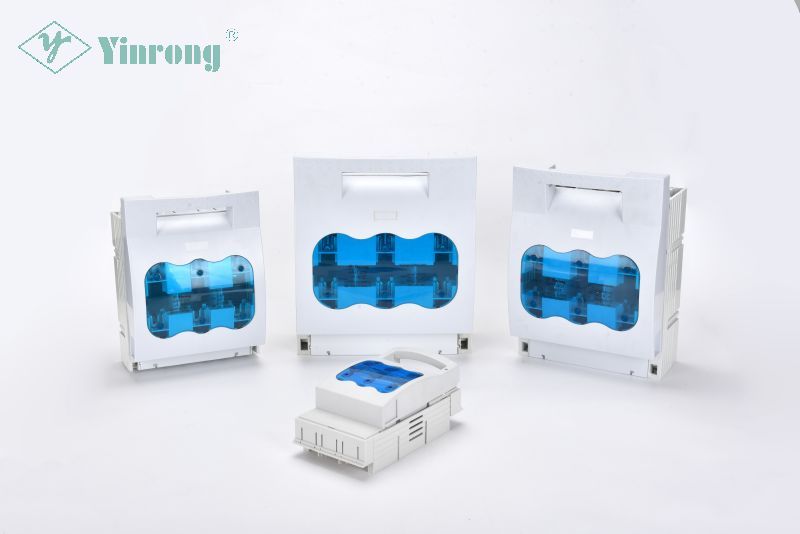

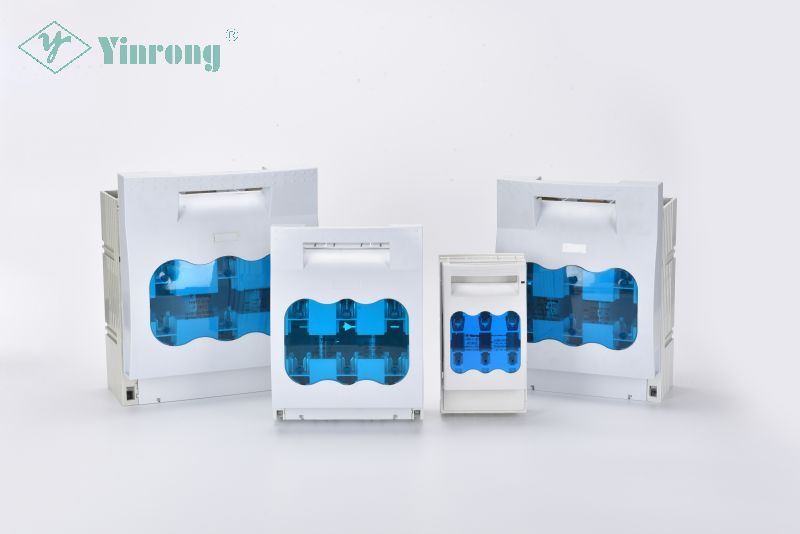

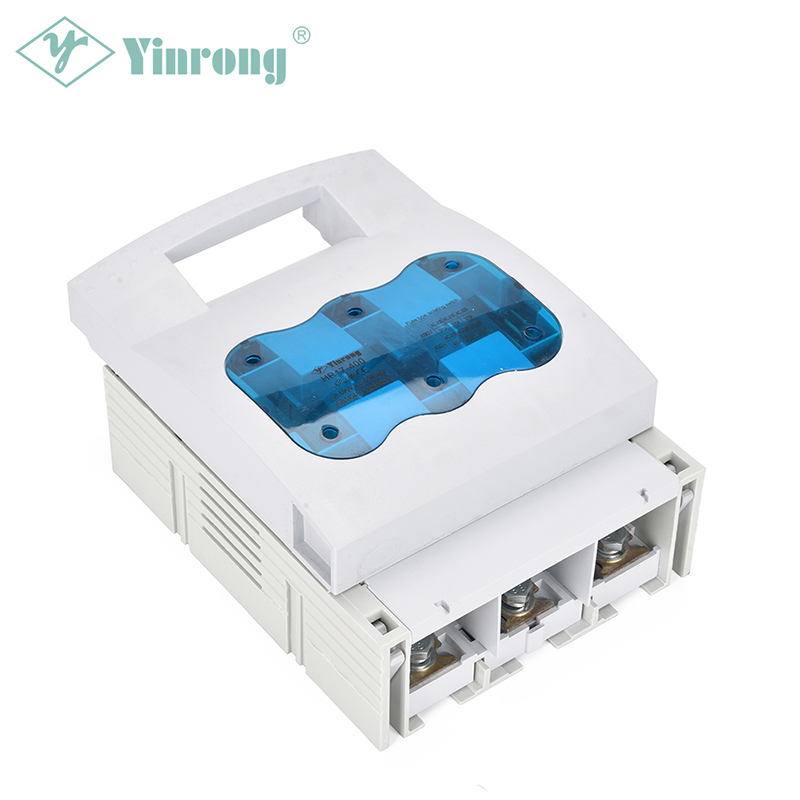

690VAC 400A Horizontal 3P Fuse Switch Disconnector
  • 690VAC 400A Horizontal 3P Fuse Switch Disconnector690VAC 400A Horizontal 3P Fuse Switch Disconnector
  • 690VAC 400A Horizontal 3P Fuse Switch Disconnector690VAC 400A Horizontal 3P Fuse Switch Disconnector
  • 690VAC 400A Horizontal 3P Fuse Switch Disconnector690VAC 400A Horizontal 3P Fuse Switch Disconnector

690VAC 400A Horizontal 3P Fuse Switch Disconnector

Galaxy Fuse’s (Yinrong) YR:HR17-690VAC 400A Horizontal 3P Fuse Switch Disconnector is suitable for short circuit protection and overload protection of cable and power equipment of the distribution system. In the case of a short circuit, the current can be broken by the fuse link inside. With the features of high isolating function and high durability, YR:HR17-400/3 Horizontal Fuse switch disconnector can withstand high short circuits.

Send Inquiry

Product Description

690VAC 400A Horizontal 3P Fuse Switch Disconnector

Approvals & Standards

• IEC60947-3

Features & Benefits

• High isolation function
• High durability
• Withstands high short circuits
• 400A ampere ratings
• 3 pole version
• Allows checking the state of the fuses through a transparent cover.

Applications

• Machine switching (on/off) (HVAC, Crane, Pump, Conveyor)
• Power distribution
• Low voltage switchboard
• Motor control centers (Isolating and protecting motor starters)
• Security applications
• Power plants
• UPS and telecom applications

Recommended Fuse Link

• NT2 Fuse Link
• NH2 Fuse Link

Country of Origin

• People's Republic of China

Parameters

Model / Size Rated Voltage (V) Rated current (A) Power Frequency Withstand Voltage (V) Recommended Fuse Link Model/Size Overall Dimension
A E H H1 B
YR:HR17-400/3 690V 400A 3000V NT2,NH2 288 210 126 335 130

Size (mm)
