690VAC 400A NT2 HRC Fuse

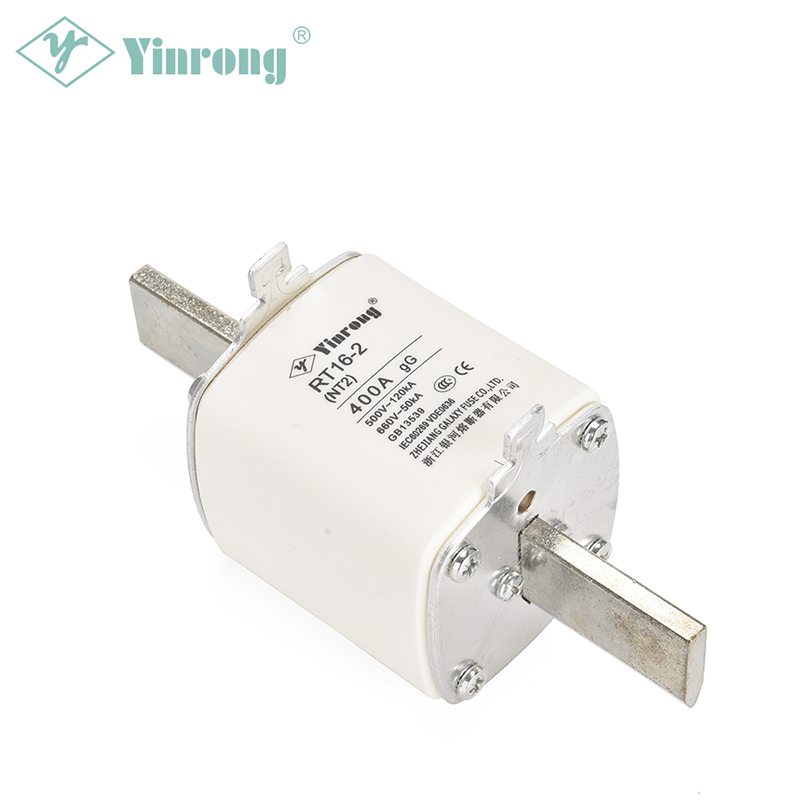

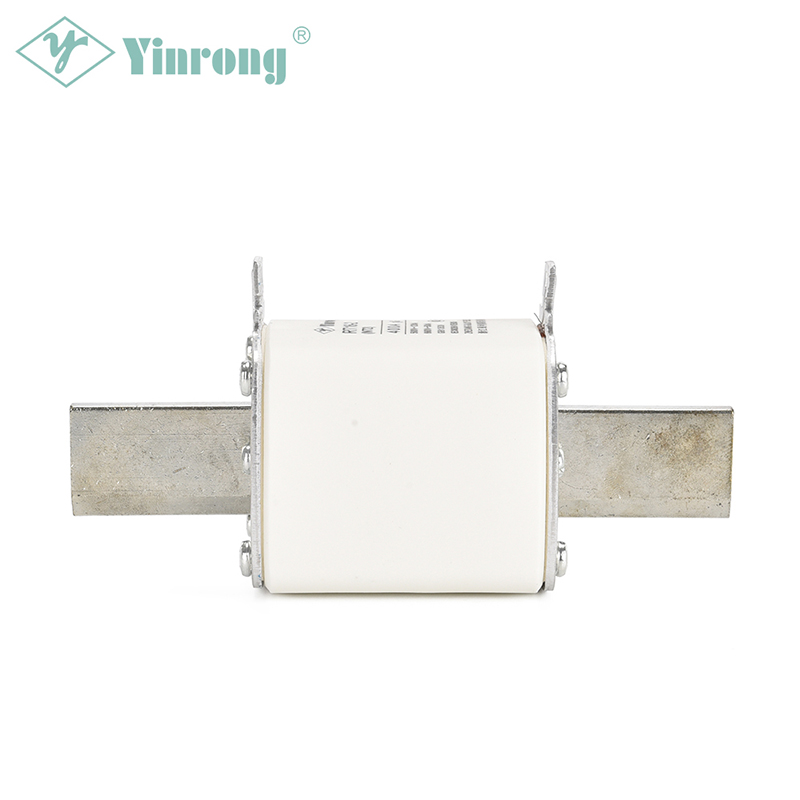

Galaxy Fuse’s (Yinrong) 690VAC 400A NT2 HRC Fuse is generally designed to cover a wide range of protection for most of industrial applications with different operating class such as gG/gL, aM and aR. This square body with blade terminals fuse was made in a standardized configuration for global acceptance. 690VAC 400A NT2 HRC Fuse is available in multiple ampere ratings from 125A up to 400A, which helps match specific requirements in various industrial applications, such as motors, transformers, low voltage distribution, control circuits and so on.

Send Inquiry

Product Description

690VAC 400A NT2 HRC Fuse

Approvals & Standards

• IEC60269-1
• IEC60269-2

Class of Operation

• gG/gL
• aM
• aR

Features & Benefits

• Covering 500VAC, 690VAC, 800VAC and 1140VAC electrical distribution circuits and various industrial applications
• 125-400A ampere ratings available
• Full range protection
• Meets IEC standards for global acceptance
• Standardized square body with blade terminals construction
• Low power dissipation performance for lower temperature rise
• Open-ended installation

Applications

• General industrial applications
• Motor drives
• LV-net works
• Electric cabinet
• Solid state relays
• Semiconductor devices
• Power rectifiers
• Uninterruptable Power System
• Converters

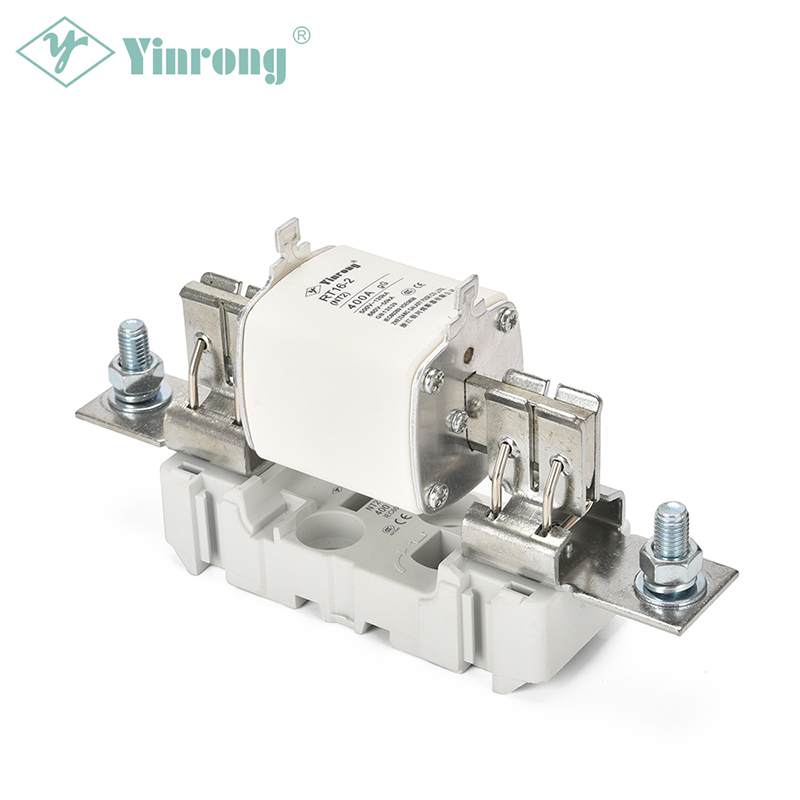

Recommended Fuse Holder

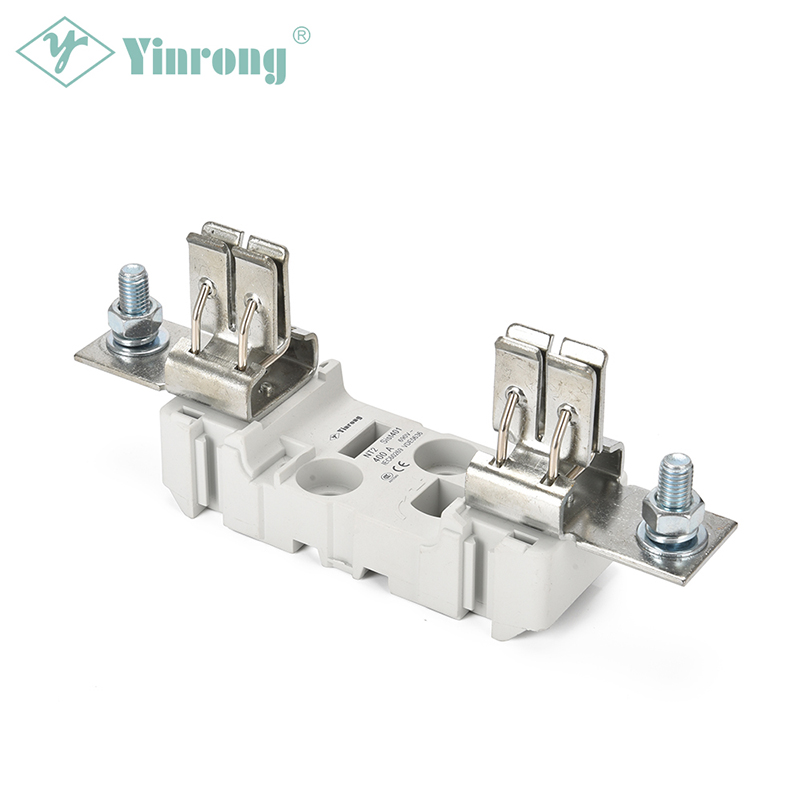

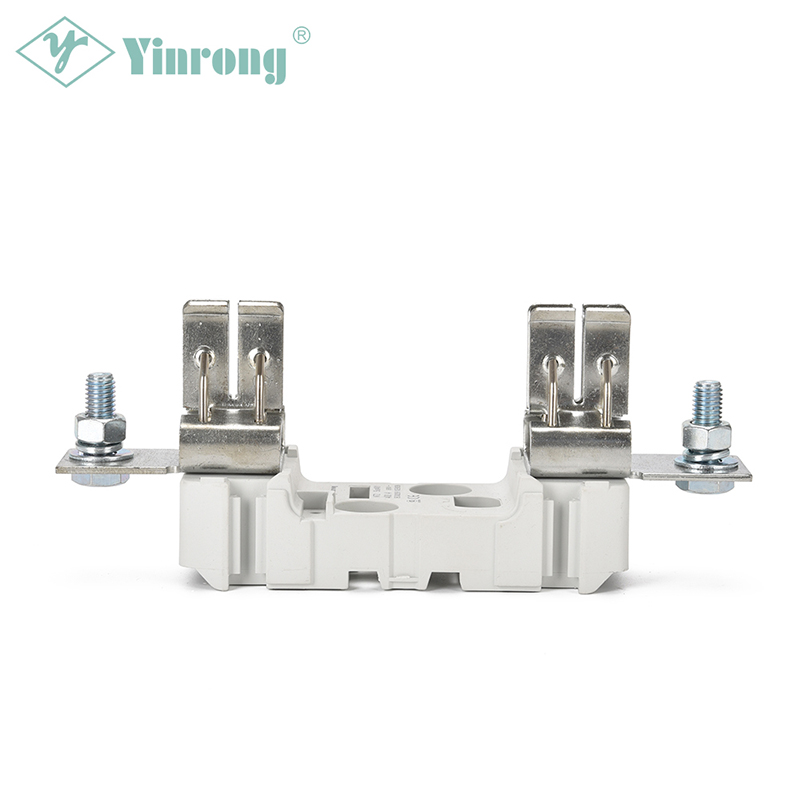

• YR:Sist401 (NT2 Fuse Base)

Optional Accessories

• NT Fuse Handle (Extractor)

Country of Origin

• People's Republic of China

Parameters

Model/Size Rated Voltage (V) Rated current (A) Overall Dimension
A D E H H1 H2
NT2 500/690 125, 160, 200, 224, 250, 300, 315, 355, 400 150 68 58 72 25 58


Model/Size Rated Voltage (V) Rated current (A) Overall Dimension
A B F H
YR:Sist401 690 400 224 200 35 89

Size (mm)
