Photovoltaic Fuse Material Differences and Distinctions

I. Introduction

Photovoltaic (PV) fuses are critical components in ensuring the safety and protection of photovoltaic power systems. They safeguard circuits against overcurrent conditions, helping prevent damage to the system and ensuring long-term reliability. The materials used in the construction of photovoltaic fuses significantly influence their performance, including their current rating, temperature tolerance, and response time.

In this article, we will explore the differences between the materials used in photovoltaic fuses, the impact of these materials on fuse performance, and how to select the right fuse for various applications. Additionally, we will highlight products from Zhejiang Galaxy Fuse Co., Ltd. and reference internationally recognized IEC standards for fuse protection.

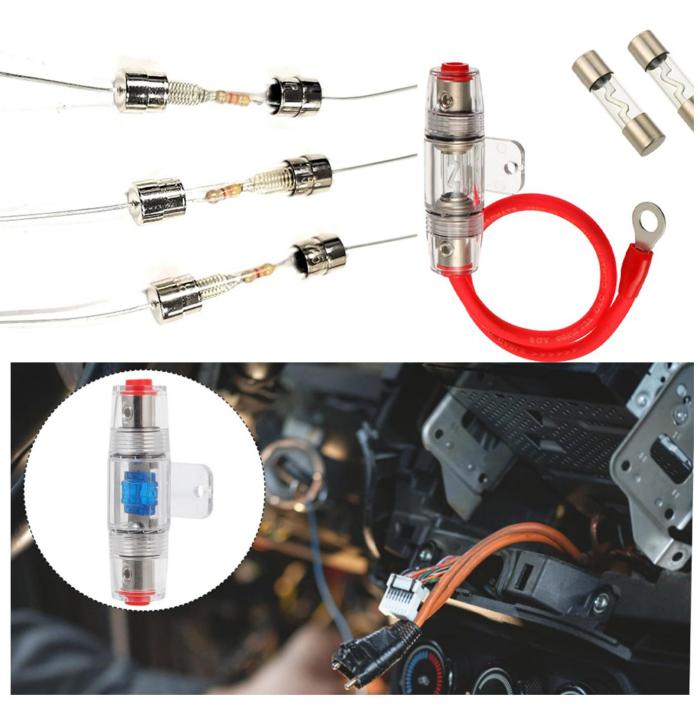

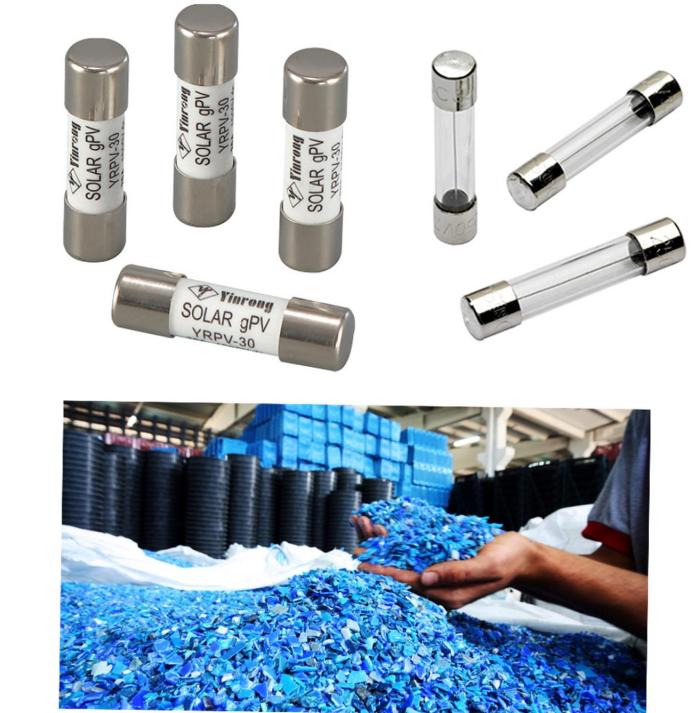

II. Main Materials Used in Photovoltaic Fuses

(A)Fuse Element Materials

1.Silver Wire

○Characteristics: Silver offers superior electrical conductivity, a low resistance, and a moderate melting point. It is ideal for high-current applications that require rapid response times.

○Applications: Silver wire fuses are particularly suitable for large-scale centralized PV power plants, where high reliability and minimal downtime are essential.

Example Product: The YRS94FA High-Speed Fuse from Zhejiang Galaxy Fuse Co., Ltd. uses advanced materials for high-speed protection in large-scale PV systems. Rated for 700V and 400A, this fuse is designed to handle high current overloads and short circuits efficiently.

○Learn more about YRS94FA High-Speed Fuse

2.Copper Wire

○Characteristics: Copper is a cost-effective alternative to silver, offering good conductivity, though it is more prone to oxidation in high-temperature environments.

○Applications: Copper wire fuses are commonly used in distributed PV systems, such as residential rooftop solar, where the electrical environment is less extreme.

3.Alloy Wire (e.g., Tin-Bismuth Alloy)

○Characteristics: Alloys such as tin-bismuth offer precise control over melting points and current ratings, making them ideal for sensitive electronic protection.

○Applications: These fuses are widely used in photovoltaic inverters, where protection needs to be both accurate and compact.

(B)Insulation Materials

1.Ceramic

○Characteristics: Ceramic provides excellent high-temperature resistance, mechanical strength, and superior electrical insulation properties.

○Applications: Ceramic-insulated fuses are typically used in high-voltage PV systems, where insulation integrity is critical under extreme conditions.

2.Glass Fiber

○Characteristics: Glass fiber offers good heat resistance, flexibility, and ease of processing into various shapes.

○Applications: Glass fiber is commonly used in both the external casing and internal insulation components of PV fuses.

3.Plastic (e.g., Polyester and Engineering Plastics)

○Characteristics: Plastics are low-cost, provide good electrical insulation, and are suitable for moderate-temperature environments.

○Applications: Plastic-insulated fuses are ideal for lower-cost applications such as residential PV systems.

III. Performance Differences of Photovoltaic Fuses Based on Materials

(A) Electrical Performance

1.Melting Characteristics

○Silver wire fuses are highly responsive and can blow quickly in the event of a short circuit, protecting the system from further damage.

oAlloy wire fuses, such as those made from tin-bismuth, allow for more precise control over overload situations, providing accurate protection.

2.Rated Voltage and Current

○Ceramic-insulated fuses typically have a higher voltage rating than plastic-insulated fuses, making them suitable for high-voltage applications. The YRS93F High-Speed Fuse, rated for 700V and 150A, is designed to protect against short circuits and overloads in PV systems.

○Learn more about YRS93F High-Speed Fuse

(B) Thermal Protection Performance

1.Temperature Resistance

○Ceramic-insulated fuses can handle higher temperatures without losing their integrity, making them ideal for use in large, high-voltage PV installations.

○Plastic-insulated fuses may deform at higher temperatures, compromising their insulating properties.

2.Heat Dissipation

○Fuses with metal casings provide better heat dissipation, helping prevent excessive overheating. For instance, the YRS92F High-Speed Fuse, rated for 700V and 100A, is designed to maintain stable operation even under overload conditions.

○Learn more about YRS92F High-Speed Fuse

IV. Application Scenarios Based on Material Differences

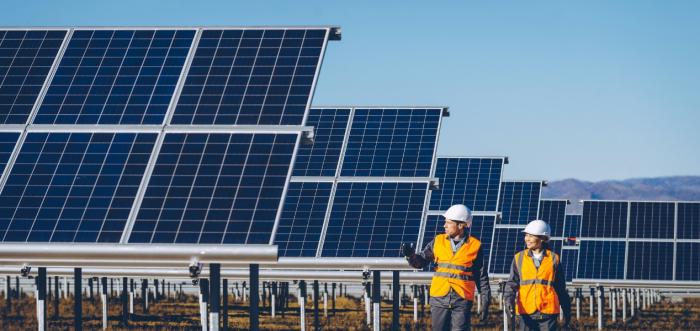

(A) Centralized Photovoltaic Power Plants

●Requirements: High current handling capacity, long-term reliability, and minimal downtime.

●Recommended Materials: Silver wire elements paired with ceramic insulation are ideal for large-scale PV systems that require high voltage and temperature resistance. The YRS94FA High-Speed Fuse is an excellent choice for large PV power plants.

(B) Distributed Photovoltaic Systems (e.g., Rooftop Solar)

●Requirements: Cost-effectiveness, reliability, and adaptability to varying environmental conditions.

●Recommended Materials: Copper wire elements combined with glass fiber or high-performance plastic insulation provide a balance between performance and cost, making them ideal for residential or small commercial PV systems.

(C) Photovoltaic Inverters and Sensitive Equipment

●Requirements: Precision protection for sensitive components, compact size, and accurate overload response.

●Recommended Materials: Alloy wire elements, such as tin-bismuth, paired with ceramic or glass fiber insulation, are ideal for inverter applications where precise protection is necessary.

V. IEC Standards for Photovoltaic Fuses

When selecting photovoltaic fuses, it is essential to ensure they meet the relevant IEC standards, which set out the safety and performance requirements for fuses used in electrical systems, including PV applications.

1.IEC 60269-1: This standard outlines the general rules for fuses, including performance, construction, and testing. It is essential for ensuring the safety and functionality of fuses in various applications, including photovoltaic systems.

○Learn more about IEC 60269-1

2.IEC 60269-2: Specifies requirements for low-voltage fuses for use in electrical installations and equipment, which include photovoltaic systems. It focuses on protecting against short circuits and overloads.

○Learn more about IEC 60269-2

3.IEC 60947-3: Defines the requirements for disconnectors, switch-disconnectors, and fuses used in electrical circuits. It is crucial for ensuring reliable operation in PV systems, particularly for protection and isolation purposes.

○Learn more about IEC 60947-3

4.IEC 61730: Provides guidelines for the design and testing of photovoltaic modules, including the protection mechanisms required, such as fuses, to ensure the safety and longevity of PV systems.

○Learn more about IEC 61730

VI. Conclusion

The materials used in photovoltaic fuses—whether silver, copper, or alloys—directly influence their electrical and thermal performance, making it essential to select the appropriate fuse for each specific application. Ceramic, glass fiber, and plastic insulation materials each offer distinct benefits for different operational environments.

By understanding the performance characteristics of each material and adhering to established IEC standards, system designers and operators can ensure that their photovoltaic systems are well-protected and operate efficiently. For those looking for reliable fuse solutions, Zhejiang Galaxy Fuse Co., Ltd. offers top-tier products like the YRS94FA, YRS93F, and YRS92F High-Speed Fuses, each designed to meet the stringent demands of modern photovoltaic systems.
