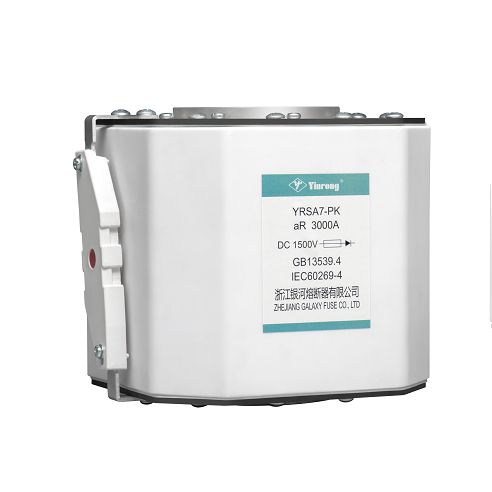

How Does a Square Body High Speed Fuse Improve System Safety

In my two decades of navigating the electrical component industry, one question I hear constantly is, what truly stands between a sophisticated electronic system and catastrophic failure. The answer often lies in a component that is both humble and profoundly critical. From my experience, the choice of protective device isn't just a specification checkmark; it's the foundation of operational integrity. This is where the fundamental role of a Square Body High Speed Fuse becomes undeniable, and why our engineering team at Galaxy Fuse has dedicated itself to perfecting this technology. A robust Square Body High Speed Fuse is your first and most reliable line of defense, designed not just to interrupt a fault, but to do so with a speed and precision that safeguards your entire investment.

What Makes a Square Body High Speed Fuse So Crucial for Safety

The core safety function of any fuse is to interrupt overcurrents. But the real question is, how does a Square Body High Speed Fuse accomplish this so effectively where other devices might falter. The secret isn't in a single feature, but in a symphony of engineered elements working in concert. The square body design isn't just for physical robustness; it allows for a larger internal arc-quenching medium, typically high-purity silica sand. When a severe short-circuit occurs, this filler absorbs the tremendous heat energy, cools the arc, and forces it to extinguish almost instantaneously. This rapid action is what we at Galaxy Fuse define as "clearing time," and it's measured in milliseconds. It’s this speed that prevents thermal and magnetic stresses from reaching your sensitive and expensive components like IGBTs and diodes.

How Do the Key Parameters of a Galaxy Fuse Square Body High Speed Fuse Translate to Real-World Protection

When you're evaluating a fuse for a critical application, you need to look beyond the basic part number. You need to understand the parameters that dictate its performance. Let's break down the specifications that make our Square Body High Speed Fuse a safety champion.

Here are the critical parameters you must consider

• Rated Voltage This is the maximum system voltage the fuse can safely interrupt. Using a fuse with an insufficient voltage rating can lead to a failure to clear the fault.

• Rated Current The maximum continuous current the fuse can carry without deteriorating or nuisance blowing.

• Interrupting Rating This is a critical safety metric. It's the maximum fault current the fuse can safely interrupt. Our Galaxy Fuse products are designed with extremely high interrupting ratings to handle the worst-case scenarios.

• I²t Value This represents the let-through energy during a fault. A lower I²t value means less thermal stress is passed on to your protected components, a key safety advantage of a true high-speed fuse.

• Peak Arc Voltage The maximum voltage the fuse generates internally while clearing a fault. A well-designed fuse controls this to prevent damage to semiconductor layers.

The following table provides a snapshot of how these parameters come to life in a typical Galaxy Fuse product line.

Why Should You Care About the Construction Materials of Your Fuse

I've seen systems fail because the fuse body couldn't withstand environmental stress or internal pressures. So, what is our Square Body High Speed Fuse made of that makes it so dependable. The ceramic body offers high mechanical strength and excellent thermal endurance. The end caps are precision-made from pure copper or silver-plated copper to ensure minimal resistance and thus, minimal heat generation under normal load. The internal fuse element is often a silver or silver-plated material, chosen for its stable performance and predictable melting characteristics. This meticulous attention to material science is what sets a Galaxy Fuse apart; it's built not just to function, but to endure.

Are You Confident Your Current Fuse is Protecting Your Semiconductor Investment

This is the question I want every engineer and procurement manager to ask themselves. In my career, the most costly failures I've witnessed were almost always preventable. A sub-standard fuse might cost less upfront, but the price of a single avoided downtime event or a saved variable speed drive is immeasurable. The precision of a Square Body High Speed Fuse from Galaxy Fuse is engineered specifically for this purpose. It provides what we call "discriminating protection," meaning it acts so fast that only the faulty circuit is isolated, allowing the rest of your system to continue running. This isn't just about preventing damage; it's about ensuring operational continuity and profitability.

Your system's safety and reliability should never be a gamble. The data is clear, and the engineering is proven. By choosing a fuse designed with these principles, you are not just buying a component; you are investing in peace of mind. We have only scratched the surface of how the right component can transform your system's resilience. Our technical team is ready to help you analyze your specific needs and recommend the perfect solution. Contact us today with your application details, and let's build a safer, more reliable system together. We are looking forward to your inquiry.
