How to Choose the Right EV Fuse for Your Electric Vehicle's High-Voltage System

If you’re designing, maintaining, or upgrading an electric vehicle, you know the high-voltage system is its lifeblood. Protecting this critical circuit isn’t just about compliance—it’s about safety, reliability, and performance. A key guardian in this system is the often-overlooked EV Automotive and EVSE Fuse. Selecting the wrong one can lead to costly downtime or safety hazards. At Galaxy Fuse, we specialize in crafting fuses that meet the precise demands of modern electric mobility. Let’s navigate the key questions you need to ask to ensure optimal protection.

What Are the Critical Parameters for an EV Fuse

Choosing a fuse goes beyond just amperage. The high-voltage, high-energy environment of an EV demands a component designed for unique stresses. Here are the non-negotiable parameters:

• Voltage Rating (DC): This must exceed your system’s maximum operating voltage. A 400V system needs a fuse rated for 450V DC or, better yet, 500V or 800V DC for future-proofing and safety margin.

• Current Rating: This should be based on the continuous current load with appropriate derating for temperature. Intermittent peaks should not cause nuisance blowing.

• Interrupting Rating (Breaking Capacity): This is crucial. It’s the maximum fault current the fuse can safely interrupt without rupture. For EV batteries, this rating must be exceptionally high—often 10kA or more.

• Energy Rating (I²t): This value defines the thermal let-through energy during a fault. A lower I²t helps protect sensitive downstream components like IGBTs in the inverter.

• Operating Temperature: Under-hood or near-battery locations experience extreme heat. The fuse must perform reliably across a wide temperature range, from -40°C to 125°C.

How Do Our Fuse Specifications Translate to Real-World Performance

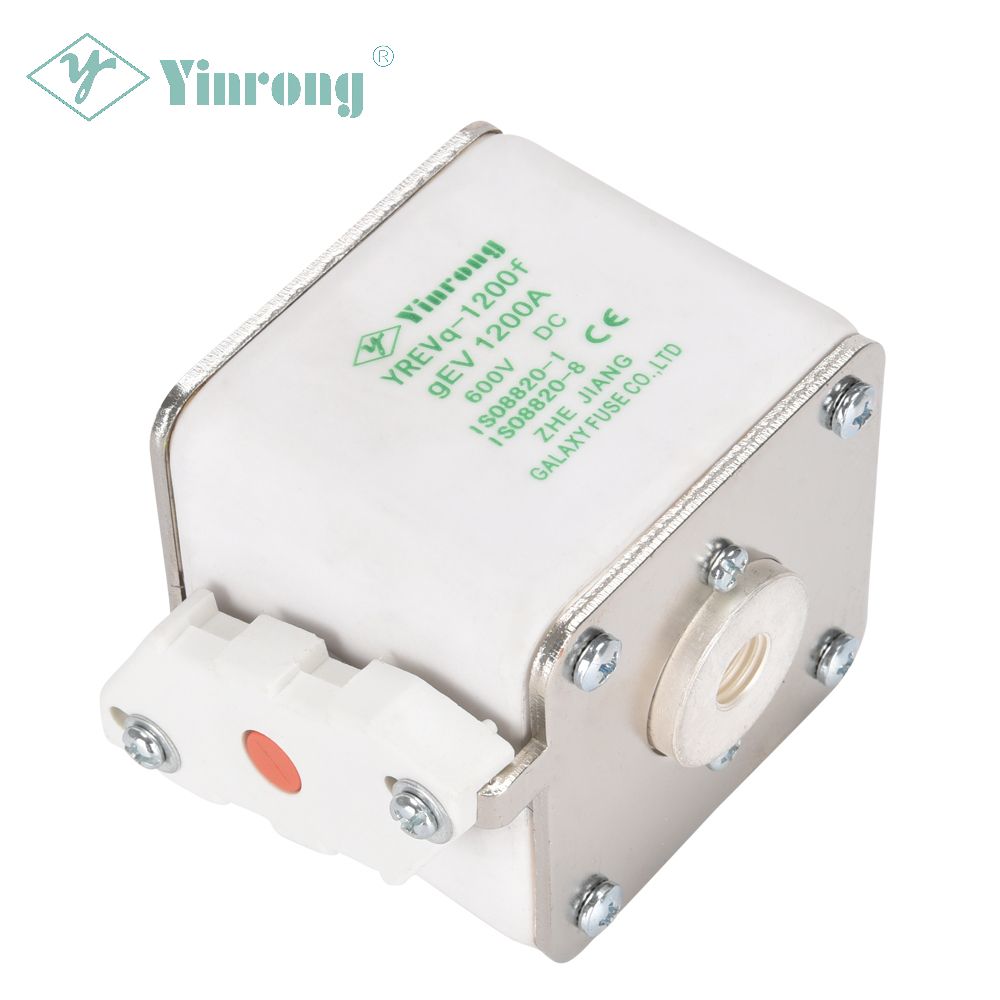

At Galaxy Fuse, we engineer our products with these harsh realities in mind. Our flagship EV Automotive and EVSE Fuse series is built to deliver unwavering protection. Let’s break down the specs that matter in a clear format.

Galaxy Fuse HV Series - Key Technical Data

This data isn’t just numbers on a sheet. It represents our commitment to solving core pain points: preventing fire risks from inadequate interruption, avoiding nuisance trips from poor temperature handling, and ensuring system longevity through precise energy limitation. When we develop a new EV Automotive and EVSE Fuse, we focus on these real-world challenges.

Why Should the Physical Design and Durability Matter to You

I’ve seen designs fail not from electrical specs, but from mechanical ones. Vibration resistance is paramount in a moving vehicle. Our fuses feature robust construction and anti-vibration designs to maintain stable connections. Furthermore, size and form factor are critical in packed EV battery boxes. Our offerings include compact, space-saving designs without compromising any electrical performance. Choosing a Galaxy Fuse means selecting a component built for the physical rigors of the road, not just the electrical demands.

Is Your Fuse Provider Aligned with the Future of E-Mobility

The evolution towards higher voltages and faster charging is relentless. Your component choices today must not hinder your roadmap tomorrow. Partnering with a specialist like Galaxy Fuse means accessing expertise and a product roadmap that evolves with the industry. Our engineers are focused on the next generation of EV Automotive and EVSE Fuse technology, ensuring you’re always ahead of the curve.

Don’t let fuse selection be an afterthought. Protecting your high-voltage investment requires a precise, reliable, and certified solution. We invite you to contact us today to discuss your specific application. Our team is ready to provide detailed datasheets, samples, and expert support. Reach out now for a consultation and let Galaxy Fuse be your partner in safe and innovative electric vehicle design.
