Why Is the 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder a Critical Safety Component for Modern Solar Power Systems

As solar energy projects continue to scale toward higher voltages and greater power densities, protecting photovoltaic systems from overcurrent faults has become more important than ever. The 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder plays a vital role in ensuring system safety, operational reliability, and long-term performance.

Whether you are designing utility-scale solar farms, commercial rooftop installations, or advanced energy storage systems, selecting the right fuse holder can significantly impact system protection and maintenance efficiency. In this comprehensive guide, we explore the features, applications, installation considerations, technical advantages, and purchasing factors associated with the 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder.

Table of Contents

• What Is a 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder?
• Why Is Overcurrent Protection Important in Solar Systems?
• Key Features of the 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder
• Technical Specifications Overview
• How Does a Solar Fuse Holder Work?
• Benefits of DIN Rail Installation
• Applications in Solar Power Systems
• How to Select the Right Solar Fuse Holder
• Installation Best Practices
• Why Choose Galaxy Fuse?
• Future Trends in PV Protection
• Frequently Asked Questions
• Conclusion

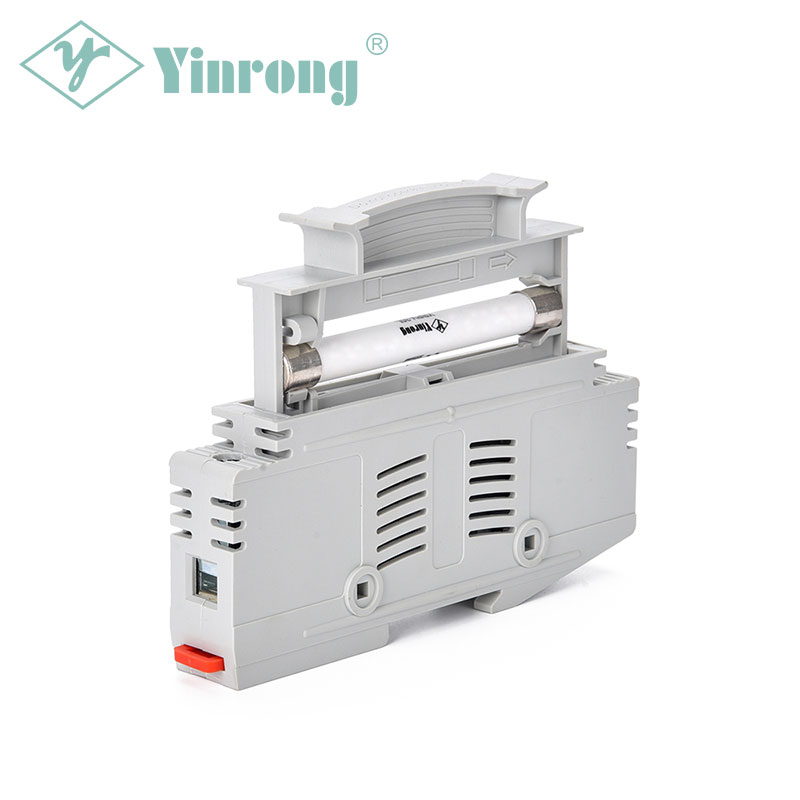

What Is a 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder?

A 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder is a specialized electrical protection device designed to securely hold and connect cylindrical photovoltaic fuses rated up to 1500V DC and 30A. It is primarily installed within combiner boxes, inverter protection panels, battery energy storage systems, and DC distribution cabinets.

Unlike standard fuse holders used in low-voltage applications, solar fuse holders must safely interrupt direct current under demanding environmental and electrical conditions. The 1500VDC rating makes this fuse holder particularly suitable for modern utility-scale solar installations where higher DC voltages help reduce cable losses and improve overall system efficiency.

Why Is Overcurrent Protection Important in Solar Systems?

Solar photovoltaic systems continuously generate electricity whenever sunlight is available. During abnormal conditions such as short circuits, reverse currents, equipment failures, or wiring faults, dangerous overcurrents may occur.

Without proper protection, these fault currents can lead to:

• Damaged solar modules
• Overheated conductors
• Combiner box failures
• Inverter damage
• Electrical fires
• Costly downtime

The 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder works together with a photovoltaic fuse to isolate faulted circuits quickly, minimizing equipment damage and improving overall system reliability.

Key Features of the 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder

High-quality solar fuse holders offer several important performance advantages:

High DC Voltage Capability

Designed specifically for photovoltaic applications, the holder safely supports systems operating at up to 1500VDC.

30A Current Rating

Suitable for a wide range of PV string protection requirements.

10×85mm Fuse Compatibility

Accommodates industry-standard cylindrical solar fuses widely used in photovoltaic protection systems.

DIN Rail Mounting

Allows fast and secure installation inside electrical cabinets and combiner boxes.

Flame-Retardant Housing

Manufactured using high-performance engineering materials that provide excellent thermal stability and fire resistance.

Reliable Electrical Contact

Ensures low contact resistance and long-term operational stability.

Technical Specifications Overview

How Does a Solar Fuse Holder Work?

The fuse holder serves as the mechanical and electrical interface between the photovoltaic fuse and the system wiring.

During normal operation:

• Current flows through the fuse element.
• The fuse holder provides secure electrical connections.
• The circuit remains operational.

When a fault occurs:

• Current exceeds the fuse's rated value.
• The fuse element melts.
• The circuit opens immediately.
• Equipment is protected from damage.

The holder then allows maintenance personnel to replace the fuse quickly and safely.

Benefits of DIN Rail Installation

DIN rail mounting has become the preferred installation method for industrial and solar electrical equipment.

These advantages contribute significantly to lower installation costs and simplified maintenance procedures.

Applications in Solar Power Systems

The 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder is widely used across numerous renewable energy applications.

Utility-Scale Solar Farms

Large solar farms often operate at 1500VDC architectures to reduce system losses and improve energy output.

Commercial Rooftop Systems

Commercial facilities rely on effective PV protection to ensure continuous operation and investment security.

Industrial Solar Installations

Factories and industrial sites require dependable protection solutions capable of handling demanding operating conditions.

Battery Energy Storage Systems

Modern storage systems frequently incorporate DC protection devices to safeguard batteries and power conversion equipment.

Solar Combiner Boxes

One of the most common applications is protecting individual PV strings within combiner boxes.

How to Select the Right Solar Fuse Holder

When choosing a solar fuse holder, engineers should evaluate several critical factors:

• Maximum system voltage
• Continuous operating current
• Fuse dimensions
• Installation environment
• Compliance requirements
• Temperature performance
• Manufacturer reputation

Selecting an incorrectly rated fuse holder may compromise both safety and equipment reliability.

For modern utility-scale projects, the 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder provides an ideal balance of performance, durability, and installation convenience.

Installation Best Practices

Proper installation helps maximize safety and product lifespan.

1. Disconnect all power sources before installation.
2. Verify fuse holder ratings match system specifications.
3. Mount securely onto a standard DIN rail.
4. Use recommended conductor sizes.
5. Tighten terminals according to torque requirements.
6. Inspect connections periodically.
7. Replace damaged fuses immediately.
8. Follow local electrical regulations.

Routine maintenance inspections can significantly reduce the risk of unexpected failures.

Why Choose Galaxy Fuse?

As a professional manufacturer of photovoltaic circuit protection solutions, Galaxy Fuse provides products engineered for demanding solar applications.

Customers choose Galaxy Fuse because of:

• Extensive photovoltaic protection expertise
• Strict quality control procedures
• Reliable product performance
• Professional engineering support
• Consistent manufacturing standards
• Global market experience

The company's commitment to innovation and quality helps ensure that every 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder delivers dependable protection throughout its service life.

Future Trends in PV Protection Technology

The solar industry continues to evolve rapidly. Several emerging trends are influencing the future of photovoltaic protection devices:

• Higher DC system voltages
• Smarter monitoring systems
• Integrated protection modules
• Advanced fire safety requirements
• Improved material technologies
• Enhanced reliability standards

As solar projects continue growing in size and complexity, reliable protection solutions such as the 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder will remain indispensable components of modern renewable energy infrastructure.

Frequently Asked Questions

What fuse size is compatible with this holder?

The holder is designed specifically for standard 10×85mm photovoltaic fuses.

Can it be used in 1500V solar systems?

Yes. It is specifically engineered for photovoltaic systems operating up to 1500VDC.

What is the maximum current rating?

The rated current is 30A, making it suitable for many PV string protection applications.

Why is DIN rail mounting preferred?

DIN rail mounting simplifies installation, maintenance, and system organization while reducing installation time.

Where is the fuse holder typically installed?

It is commonly installed in solar combiner boxes, inverter cabinets, DC distribution panels, and battery energy storage systems.

Why should I choose Galaxy Fuse products?

Galaxy Fuse offers reliable quality, professional technical support, strict manufacturing standards, and products designed specifically for photovoltaic protection applications.

Conclusion

The 1500VDC 30A 10×85mm Solar PV DIN Rail Fuse Holder is a fundamental component for ensuring safe and reliable operation in modern photovoltaic systems. Its high-voltage capability, robust construction, standardized DIN rail installation, and compatibility with 10×85mm PV fuses make it an excellent choice for residential, commercial, and utility-scale solar projects.

By selecting high-quality protection solutions from Galaxy Fuse, project developers, installers, and system integrators can improve safety, reduce downtime, and extend the operational lifespan of their solar infrastructure.

Looking for dependable photovoltaic circuit protection solutions for your next solar project? Contact us today to learn more about Galaxy Fuse products, receive technical support, request product specifications, or obtain a customized quotation. Our experienced team is ready to help you find the ideal protection solution for your renewable energy applications.
