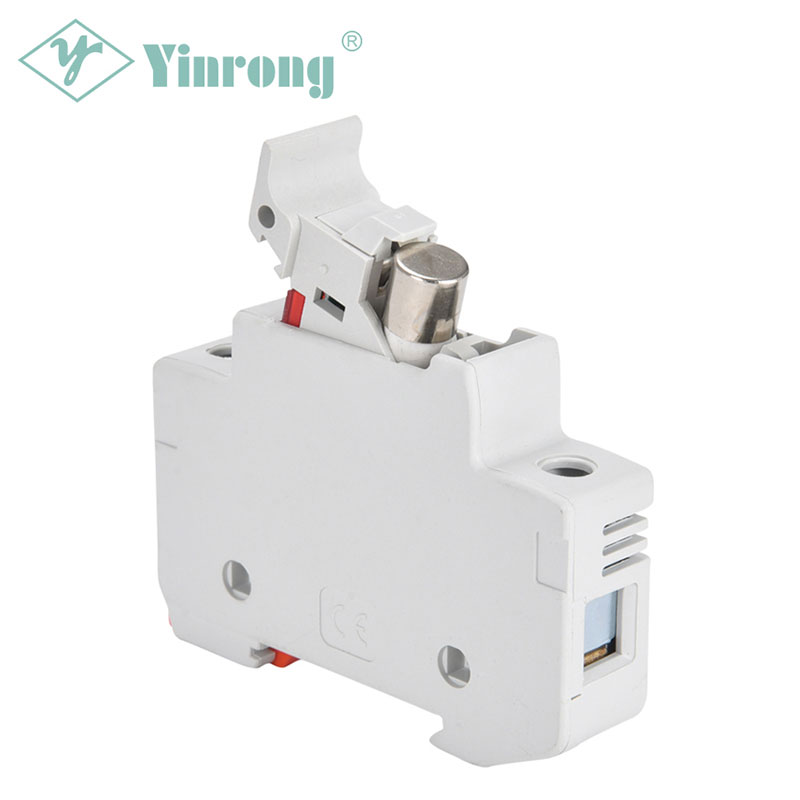

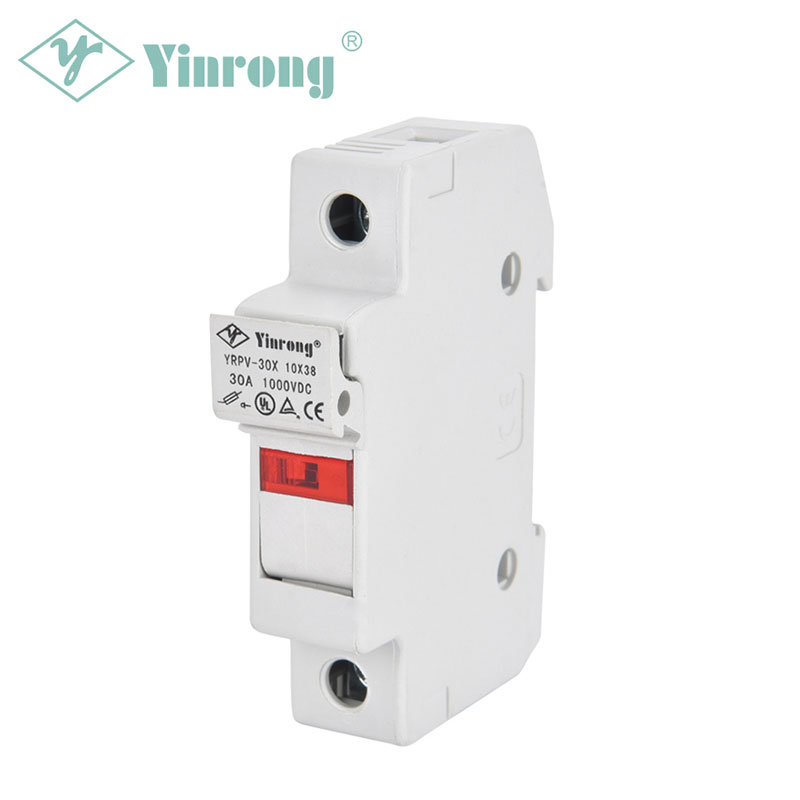

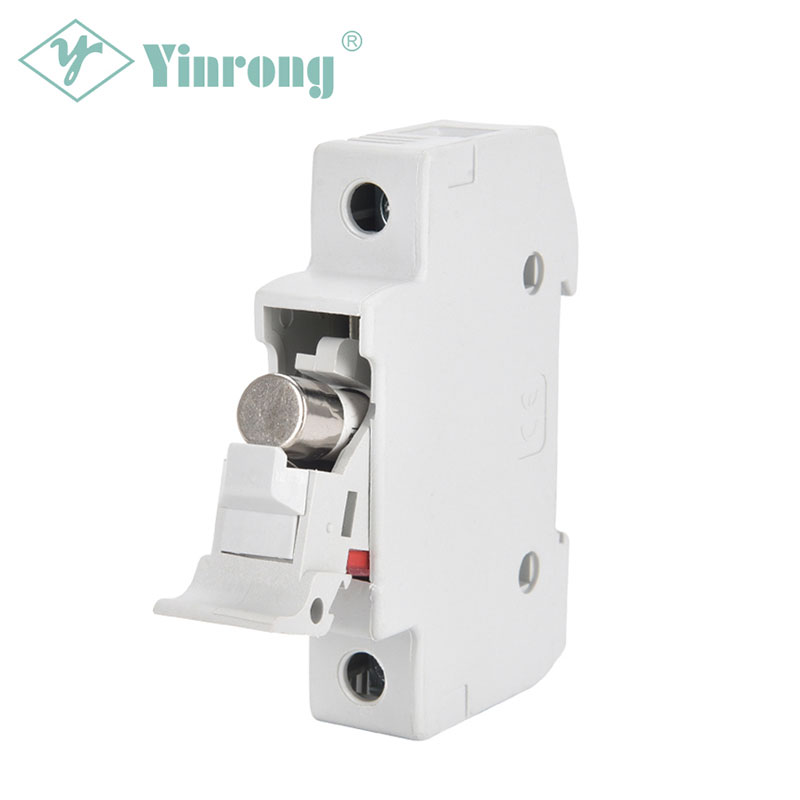

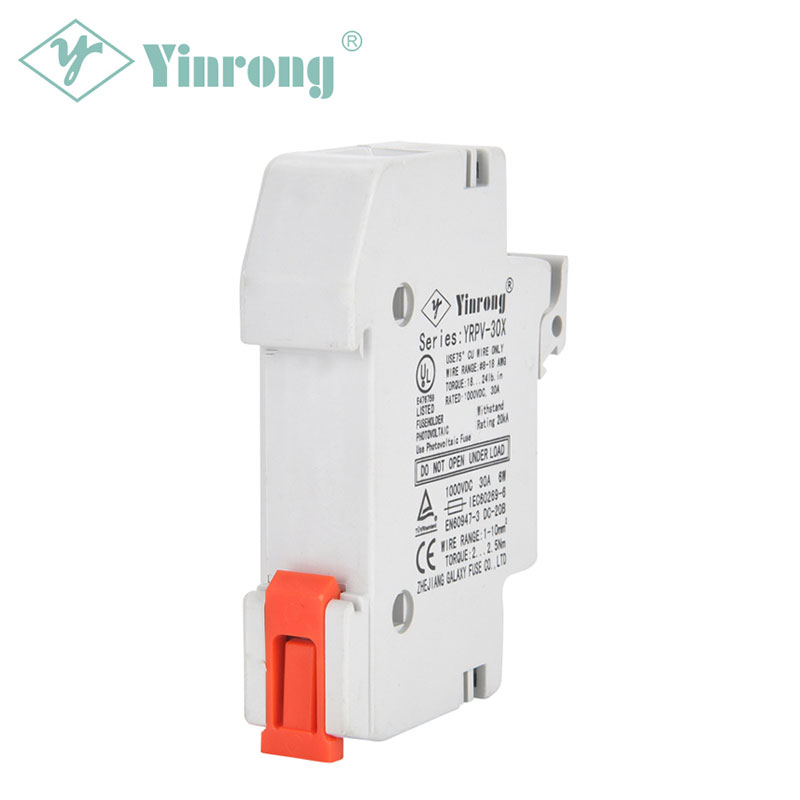

1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light
  • 1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light
  • 1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light
  • 1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light
  • 1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light

1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light

The YRPV-30X 1000VDC 10×38mm PV Fuse Holder is designed to house 1000VDC PV Fuse, which can provide fast-acting protection under overload current conditions associated with Photovoltaic (PV) systems. The recommended fuse link size is 10×38mm, which can safely protect 1000VDC Photovoltaic (PV) systems. The most common applications of this YRPV-30X 1000VDC 10×38mm PV Fuse are PV combiner boxes, inverters, PV string, PV array protection, etc. 1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light was made of the flame-retardant material with V0 standard, and it’s busbar mountable in the Photovoltaic (PV) system. YRPV-30X 1000VDC 10×38mm PV Fuse Holder also available in 1, 2, 3 and 4-pole configurations.

Send Inquiry

Product Description

1000VDC 30A 10×38mm Solar PV DIN Rail Fuse Holder with Indicator Light

Approvals & Standards

• IEC60269-6
• UL4248-19
• EN60947-3

Class of Operation

• gPV

Features & Benefits

• YRPV-30 1000VDC 10×38mm Fuse Link recommended
• 1000VDC Photovoltaic (PV) system available
• 30A ampere ratings
• Available in 1, 2, 3 and 4-pole configurations
• Meets IEC and UL standards for global acceptance
• TUV, CE approved
• Flame retardant shell with V0 standard
• Low temperature rise for better performance of the circuit protection
• DIN Rail mounting
• No fuse pullers or tools required for fuse removal

Applications

• Combiner box
• PV string, PV array protection
• Inverters
• Battery charge controllers
• Re-combiner units
• In-line PV module protection

Recommendations:

• Do not operate under load
• Use 75°C CU wire only
• LED light indicator available

Country of Origin

• People's Republic of China

Parameters

Product code Rated current Breaking capacity Safety certificate Recommended Fuse Link Model/Size Net weight



YRPV-30X 30A 1000Vdc YRPV-30(Φ10.3x38)mm 61.5g
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)
