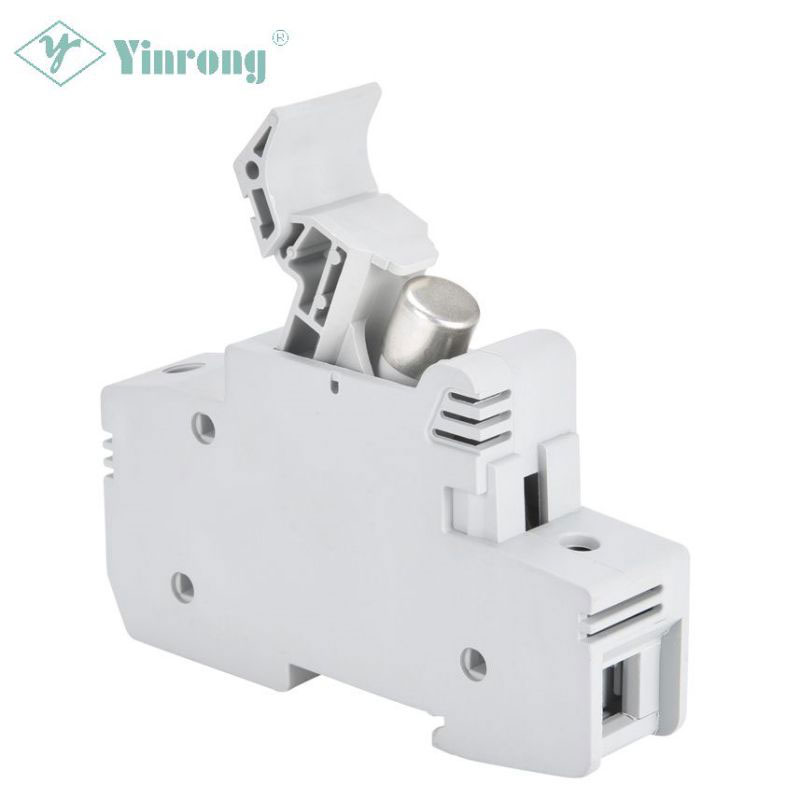

1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder
  • 1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder
  • 1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder
  • 1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder
  • 1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder

1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder

The YRPV-63 1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder is specifically designed to protect the Photovoltaic (PV) systems. The recommended fuse link is 14×65mm, which secures the 1500VDC Photovoltaic (PV) systems. The YRPV-63 1500VDC 14 x 65mm PV Fuse provides higher amperage protection in smaller spaces. The most commonly used YRPV-63 1500VDC 14×65mm PV Fuse applications include PV combiner boxes, inverters, PV string, PV array protection, etc. YRPV-63 1500VDC 14×65mm PV Fuse Holder was made of the flame-retardant shell with V0 standard, and the dead-front design made it available to fit most busbar mounting in the Photovoltaic (PV) system.

Send Inquiry

Product Description

1500VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder

Approvals & Standards

• UL248-19

Class of Operation

• gPV

Features & Benefits

• YRPV-63 1500VDC 14×65mm Fuse Link recommended
• 1500VDC Photovoltaic (PV) system available
• 63A ampere ratings
• Meets UL248-19 Photovoltaic standard for global acceptance
• UL approved
• Flame retardant shell with V0 standard
• Low temperature rise for better performance of the circuit protection
• 35mm DIN Rail mounting
• No fuse pullers or tools required for fuse removal

Applications

• Combiner box
• PV string, PV array protection
• Inverters
• Battery charge controllers
• In-line PV module protection

Recommendations:

• Do not operate under load
• Use 75°C CU wire only

Country of Origin

• People's Republic of China

Parameters

Product code Rated current Rated voltage Safety certificate Recommended Fuse Link Model/Size
Net weight



YRPV-63 63A 1500Vdc
YRPV-63(Φ14.3x65)mm
125.5g
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)
