Home > Products > Solar Power Protection PV Fuse > 1500VDC Solar PV Fuse Holder > 1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder
1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder
  • 1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder
  • 1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder
  • 1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder
  • 1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder

1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder

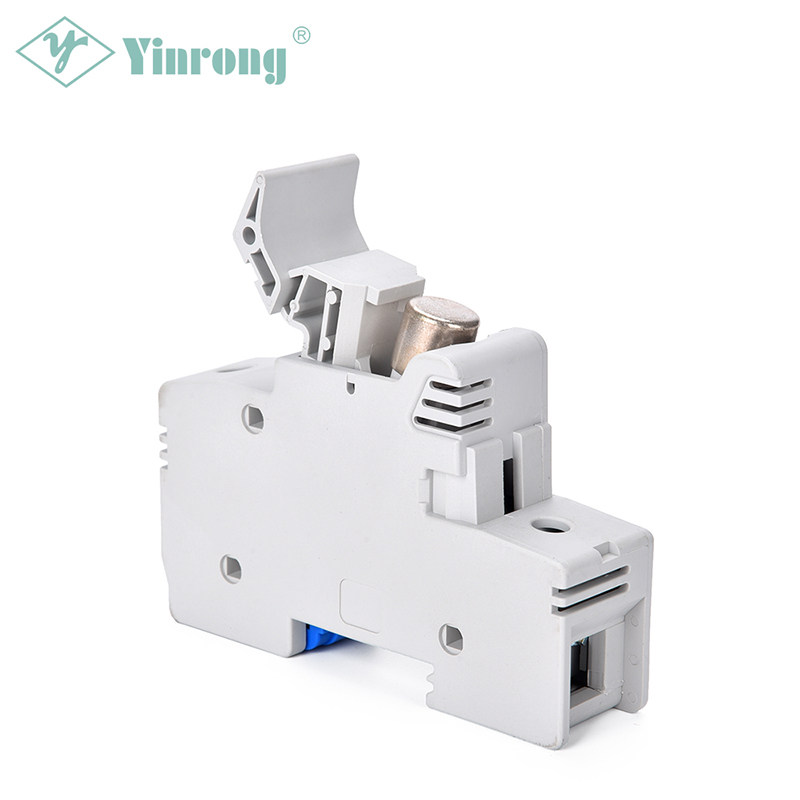

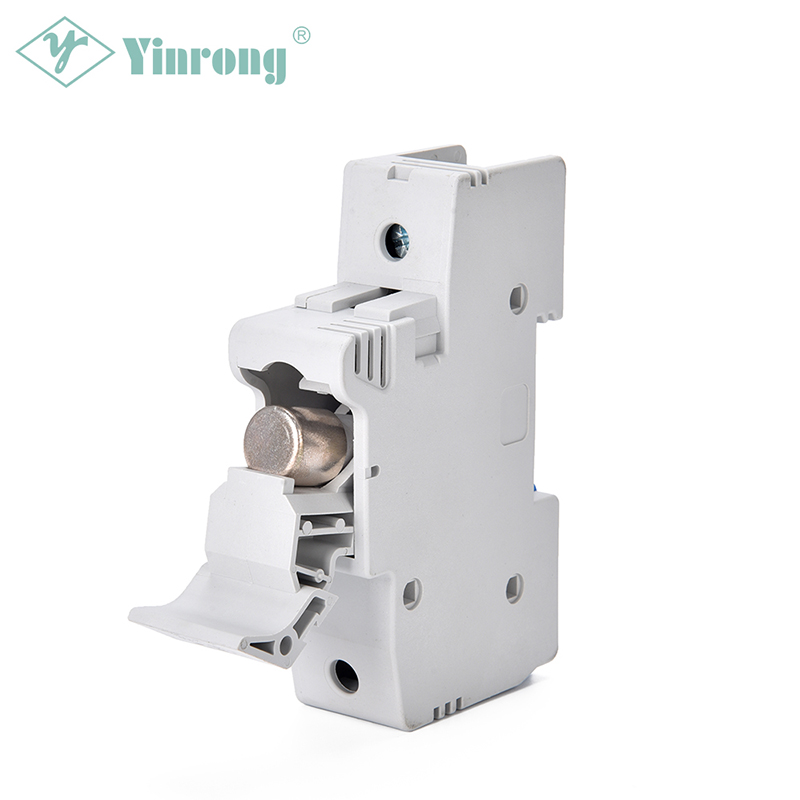

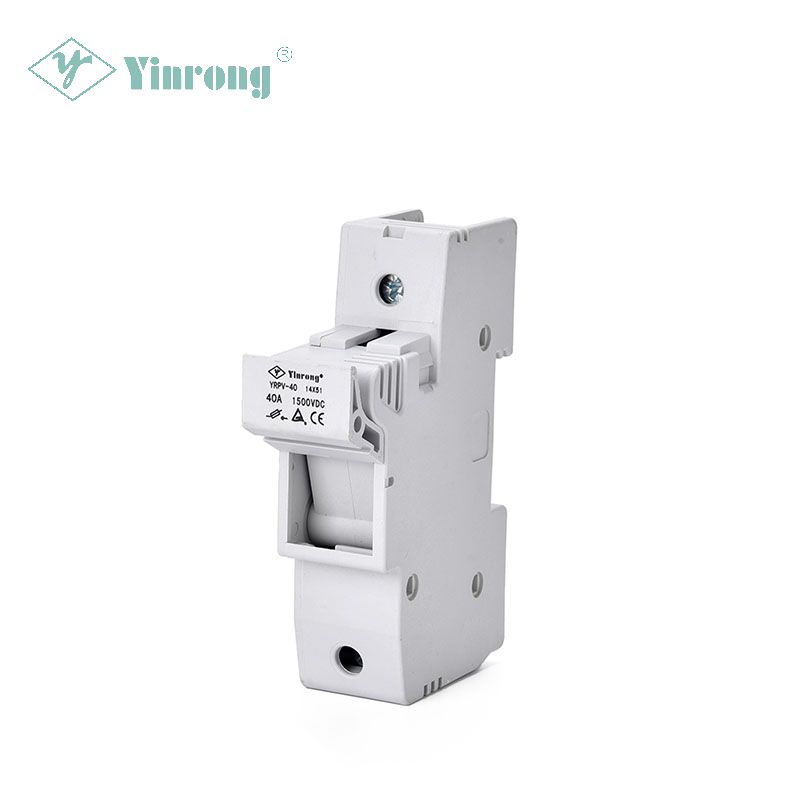

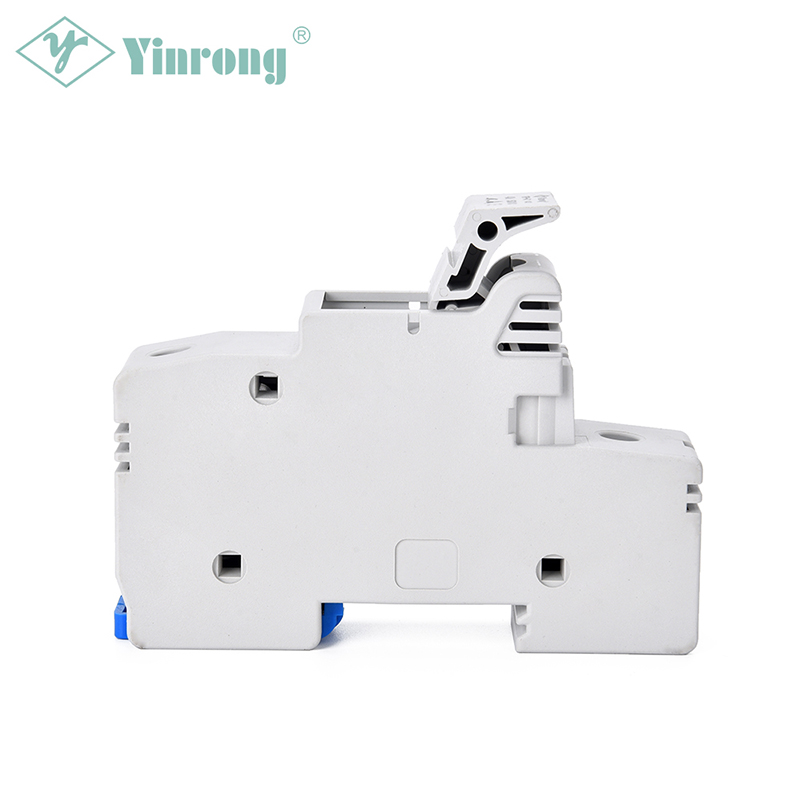

The YRPV-40 1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder is specifically designed to protect and isolate Solar Photovoltaic (PV) strings. The recommended fuse link size is 14×51mm and securely protects the 1500VDC Photovoltaic (PV) systems. The YRPV-40 1500VDC 14×51 mm PV fuse is most commonly used in Photovoltaic PV combiner boxes, inverters, battery charge controllers, etc. YRPV-40 1500VDC 14×51 mm PV Fuse Holder has a shell that meets the V0 flame-retardant standard and has a front-facing design to meet the requirements of the PV system for the busbar installation.

Send Inquiry

Product Description

1500VDC 40A 14×51mm Solar PV DIN Rail Fuse Holder

Approvals & Standards

• IEC60269-6
• EN60947-3

Class of Operation

• gPV

Features & Benefits

• YRPV-40 1500VDC 14×51mm Fuse Link recommended
• 1500VDC Photovoltaic (PV) system available
• 40A ampere ratings
• Meets IEC60269-6 standard for global acceptance
• TUV, CE approved
• Flame retardant shell with V0 standard
• Low temperature rise for better performance of the circuit protection
• 35mm DIN Rail mounting
• No fuse pullers or tools required for fuse removal

Applications

• Inverter
• Combiner boxes
• Battery charge controllers

Recommendations:

• Do not operate under load
• Use 75°C CU wire only

Country of Origin

• People's Republic of China

Parameters

Product code Rated Rated voltage Safety certificate Recommended Fuse Link Model/Size Net weight



YRPV-40 40A 1500Vdc YRPV-40(Φ14.3x51)mm
110.5g
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)
