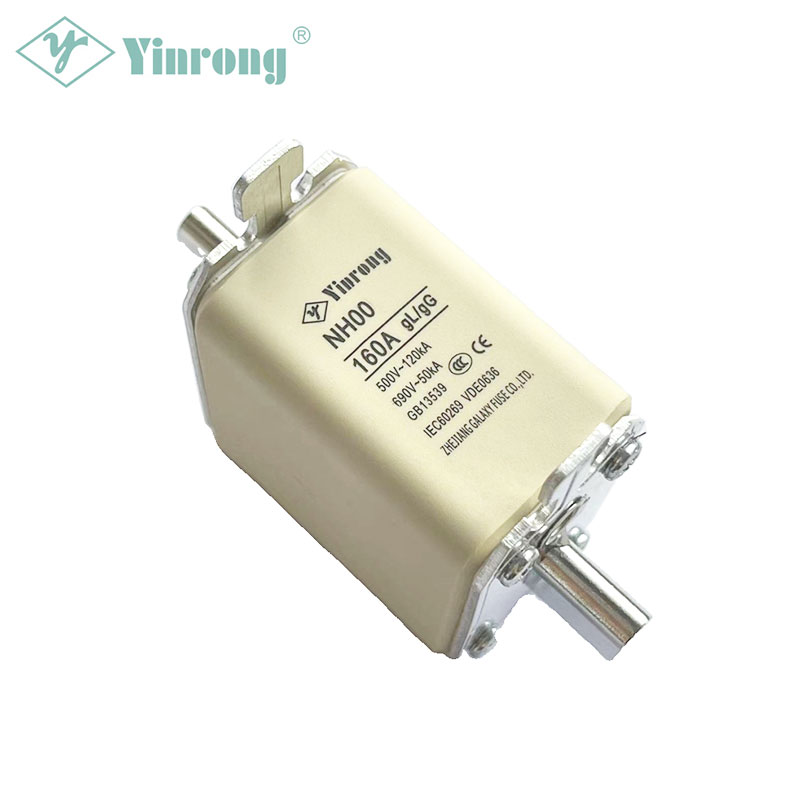

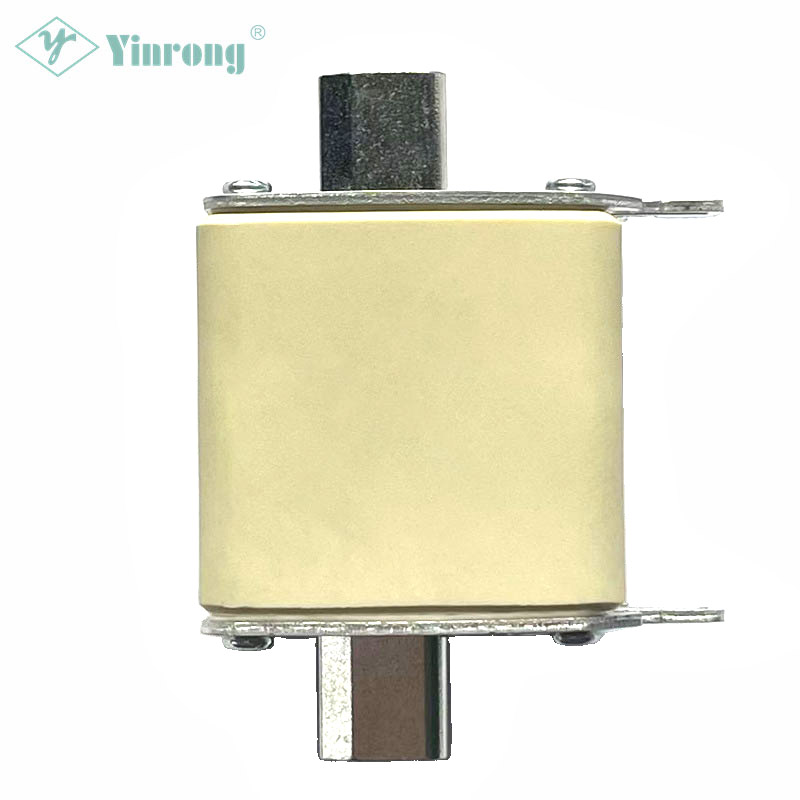

690VAC 160A NH00 HRC Fuse
China fuse supplier Galaxy Fuse’s (Yinrong) 690VAC 160A NH00 HRC Fuse has been designed to protect low voltage installations where expected short circuit currents are low with the different operating classes such as gG/gL, aM and aR. This square style with blade terminals ceramic fuse was made in a standardized size for global acceptance. 690VAC 160A NH00 HRC Fuse is available in multiple ampere ratings from 4A up to 160A, which helps match specific requirements in various industrial applications, such as motors, transformers, low voltage distribution, control circuits and so on.
Send Inquiry
Product Description
690VAC 160A NH00 HRC Fuse
Approvals & Standards
• IEC60269-1
• IEC60269-2
Class of Operation
• gG/gL
• aM
• aR
Features & Benefits
• Covering 500VAC, 690VAC, 800VAC and 1140VAC electrical distribution circuits and various industrial applications
• 4-160A ampere ratings available
• Full range protection
• Meets IEC standards for global acceptance
• Standardized square body with blade terminals construction
• Low power dissipation performance for lower temperature rise
• Open-ended installation
Applications
• General industrial applications
• Motor drives
• LV-net works
• Electric cabinet
• Solid state relays
• Semiconductor devices
• Power rectifiers
• Uninterruptable Power System
• Converters

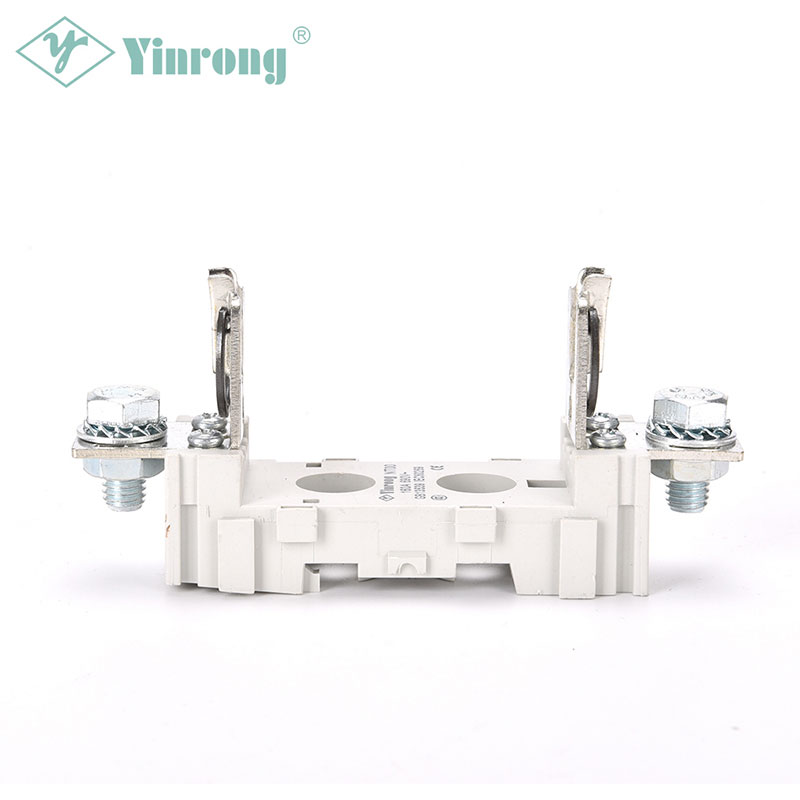

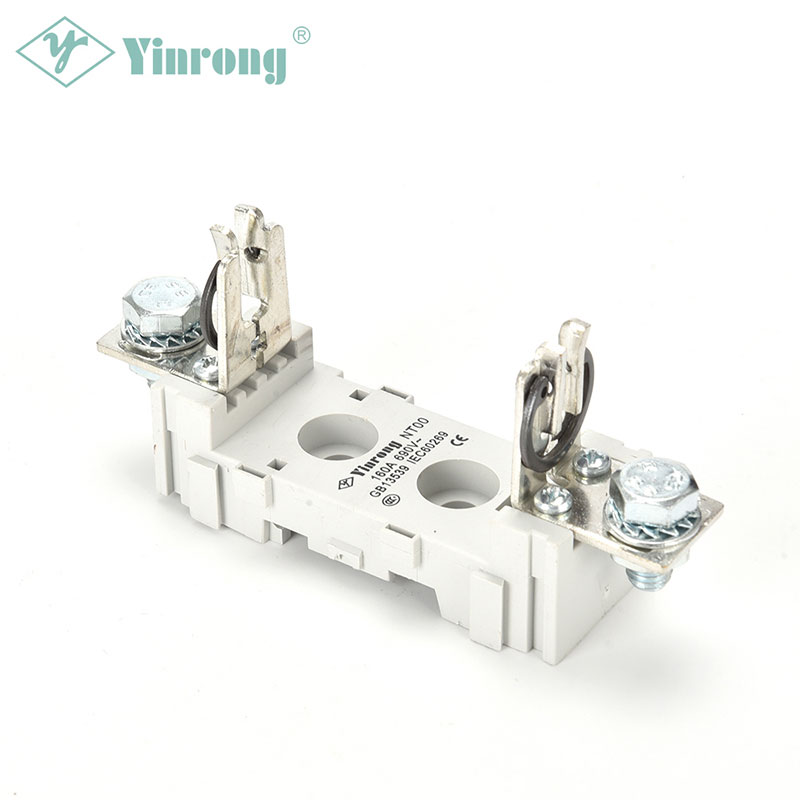

Recommended Fuse Holder
• YR:Sist101 (NH00 Fuse Base)
Optional Accessories
• NH Fuse Handle (Extractor)
Country of Origin
• People's Republic of China
Parameters
| Model/Size | Rated Voltage (V) | Rated current (A) | Overall Dimension | |||||
|---|---|---|---|---|---|---|---|---|
| A | D | E | H | H1 | H2 | |||
| NH00 | 500/690 | (4~100), 125, 160 | 78 | 53 | 30 | 60 | 15 | 48 |
| Model/Size | Rated Voltage(V) | Rated current(A) | Overall Dimension |
|---|---|---|---|
| YR:Sist101 | 690 | 160 | Fig.2 |
Size (mm)
