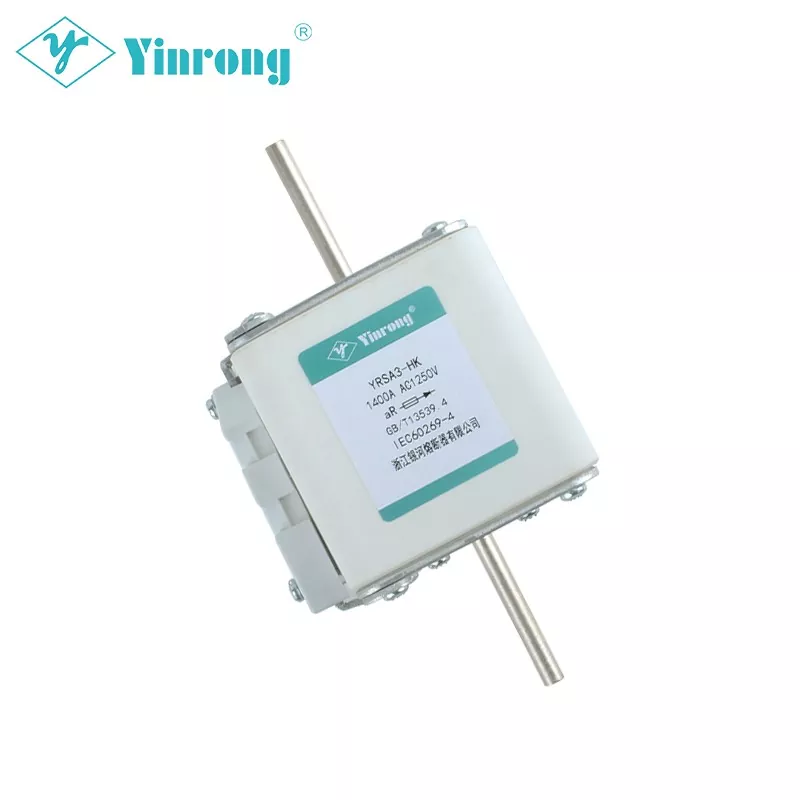

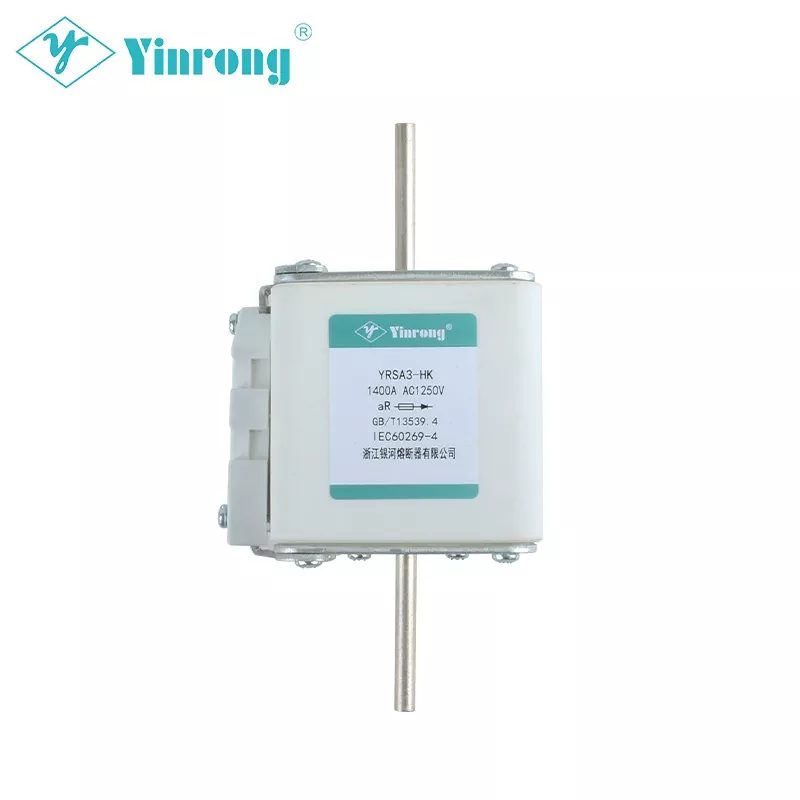

YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuse

Galaxy Fuse is a leading China YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuse manufacturers. China high speed semiconductor fuse supplier Galaxy Fuse (Yinrong)'s YRSA(x)-HK Series gR high speed fuses are specially designed to protect semiconductor devices.

Send Inquiry

Product Description

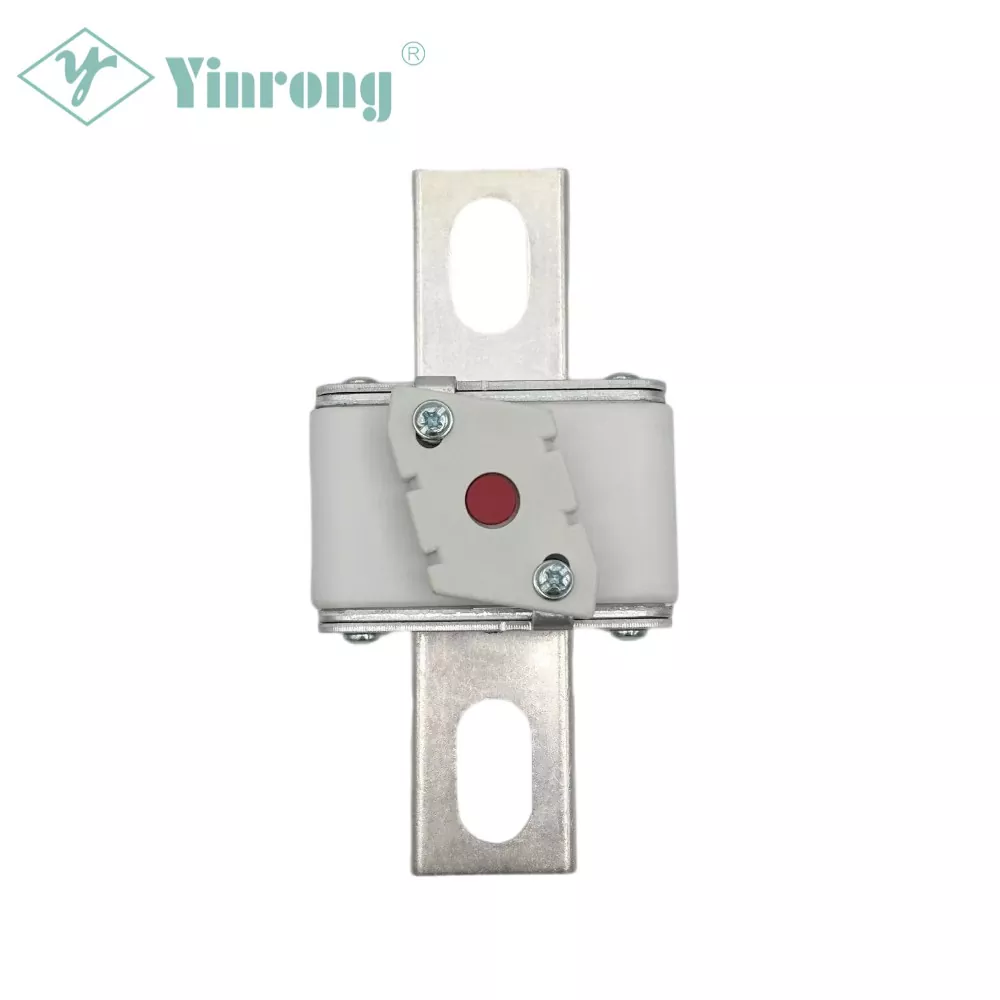

YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuses are designed for both overload and short-circuit protection. YRSA(x)-HK Series gR high speed fuses provide a wide amperage rating of 40-2000A under the rated voltage of 1250V (IEC/UL), which can typically fit most semiconductor devices. This YRSA(x)-HK Series gR high speed fuse conforms to the national standard GB13539.4 and the international electrical committee standard IEC60269-4.Many square body fuses are equipped with a trip-indicator. This trip indicator can operate a field-mountable micro-switch which is easily mounted directly onto the fuse. Galaxy Fuse (Yinrong) also affords various high speed fuses to meet customers' requirements.

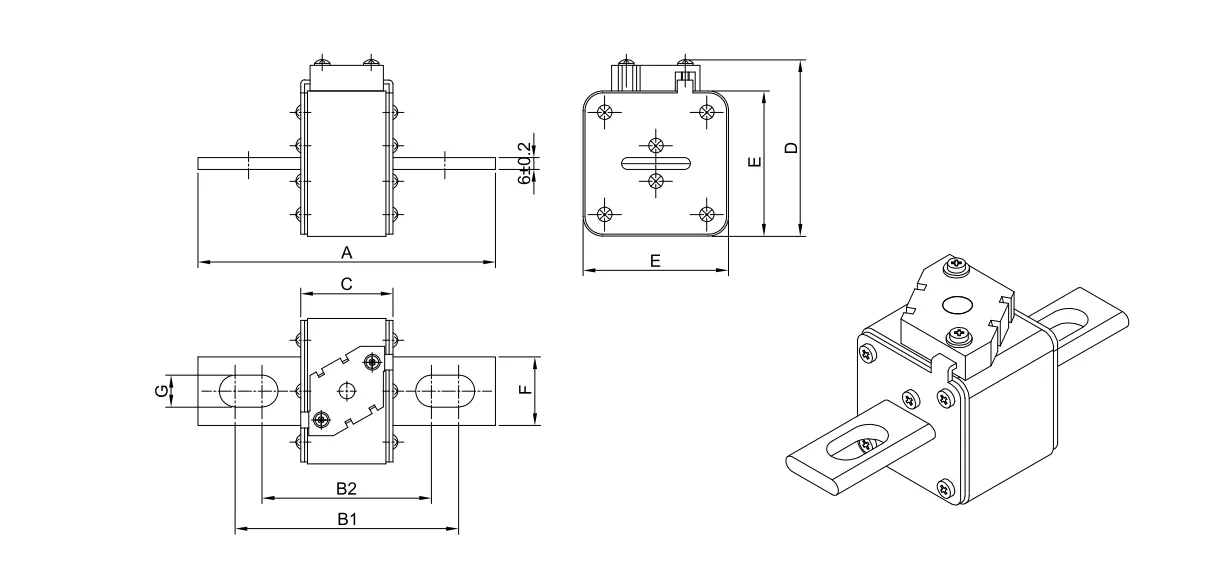

Size(mm)

P/N	A±2.5	A(115）±2.5	B1±2.5	B1（115）±2.5	B2±2.5	B2（115）±2.5	C±2.5	D±2.5	E±2	F±1	G±0.5
YRSA01-H	110	148	85	123	72	110	50	59	45	20	10
YRSA1-H	136	157	104	126	78	100	50	69	53	25	14
YRSA2-H	135	159	105	125	78	99	50	77	61	25	14
YRSA3-H	135	155	106	125	77	97	51	92	75	36	16

Approvals＆Standards

·GB/T13539.4

·IEC60269-4

·UL248-13

Class of Operation

·gR

·aR

Features＆Benefits

·1250VAC eletrical system available

·40-2000A ratings available

·Extremely high Interrupting rating

·Conforms to IEC standards for global acceptance

·Superior cycling ability

·High current limitation

·Visual and optional micro swith fuse blown indication

Applications

·Power conversion devices(UOS,inverter,rectifiers,drives)

·DC systems（DC common bus，DC injection braking）

·Battery protection application

·Electric vehicle charging stations

·Heaters and power supplies

·Other semiconductors

Country of Origin

·Peoples’s Republic of China

Conventional Fusing and Non-Fusing

Rated Current (A）	Conventional Time （h）	Conventional Current
		“gR”
		Inf	lf
ln≤63	1	1.13ln	1.6ln
63＜In≤160	2
160＜ln≤400	3
400＜ln	4
Note：ln is the rated current of the fuse; lnf is the conventional non-fusing current; if is the conventional fusing current.
