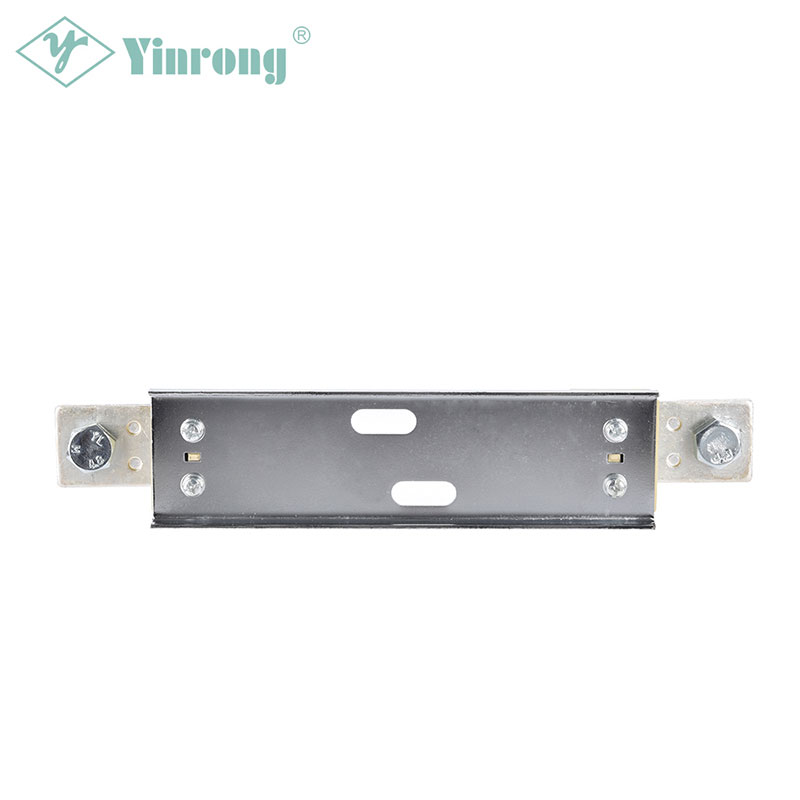

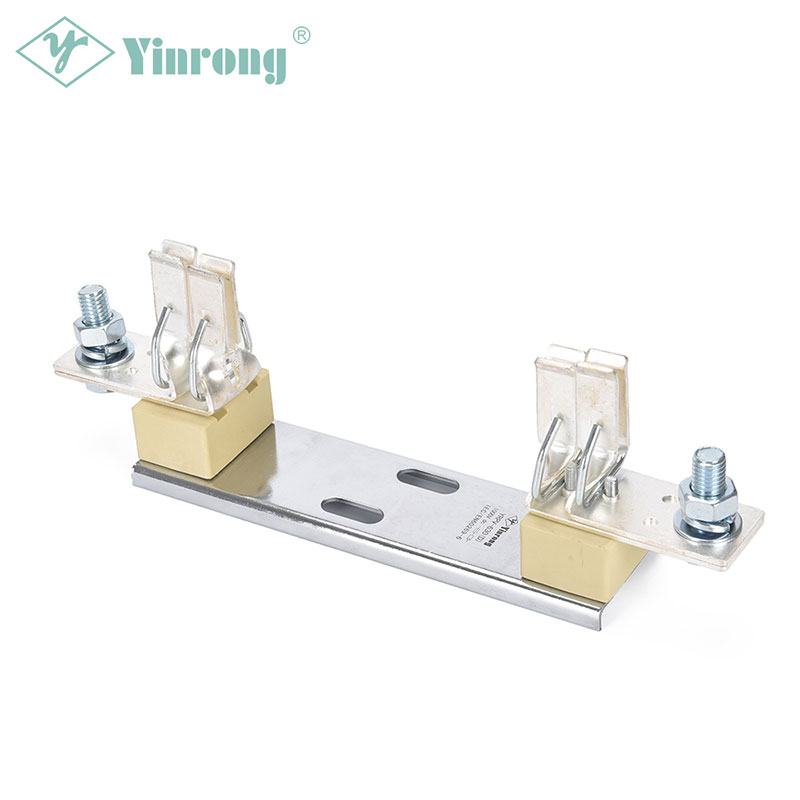

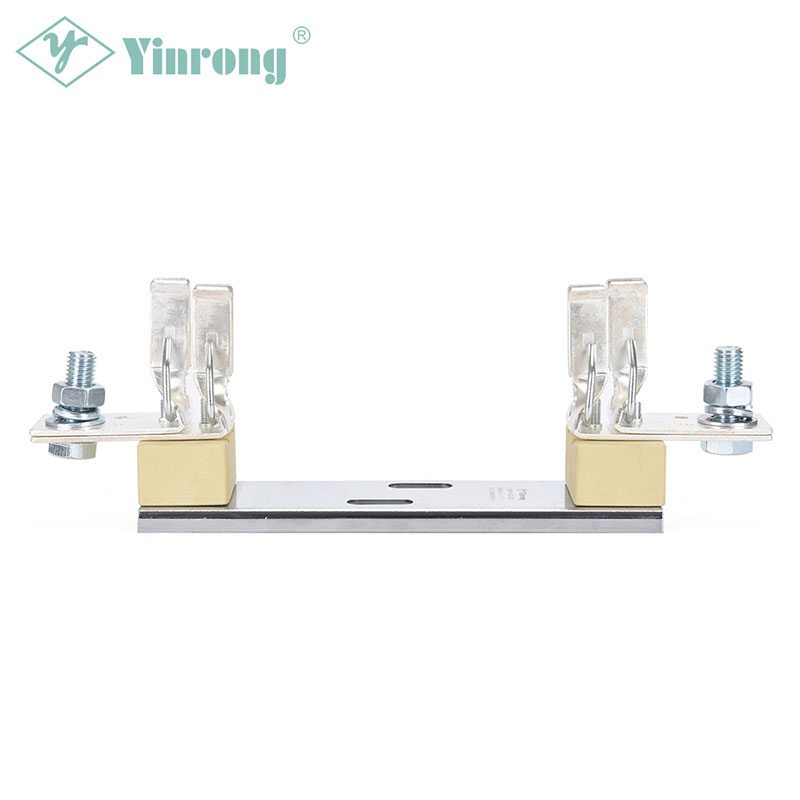

1500VDC 630A 3L Solar PV Fuse Base

The YRPV-630D 1500VDC 3L PV Fuse Holder is researched and designed for protecting Photovoltaic (PV) array combiner boxes and DC disconnects. The recommended fuse link size is YRPV-630D 1500VDC 3L Fuse Link, which can protect 1500VDC Photovoltaic (PV) systems effectively. YRPV-630D 1500VDC 3L PV Fuse is suitable for PV inverter protection and array combiner applications. This enlarged size of YRPV-630D 1500VDC 3L PV Fuse can offer higher ampere ratings up to 630A to meet various PV applications. The NH screw mounting fit most installation in the cabinet of the Photovoltaic (PV) system.

Send Inquiry

Product Description


Approvals & Standards

• IEC60269-1
• EN60269-6

Class of Operation

• gPV

Features & Benefits

• YRPV-630D 1500VDC 3L Fuse Link recommended
• 1500VDC Photovoltaic (PV) system available
• 630A ampere ratings
• Meets IEC IEC60269-6 standard for global acceptance
• Steel plate enables high strength and durability
• Low temperature rise for better performance of the circuit protection
• NH screw mountable

Applications

• Combiner box
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection

Recommendations:

• Do not operate under load
• Use 75°C CU wire only

Country of Origin

• People's Republic of China


Parameters

Product code Rated current Rateed voltage Safety certificate Fitted with fuse-link model size Net weight
YRPV-630D 630A 1500Vdc YRPV-630D 0.93kg
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)
