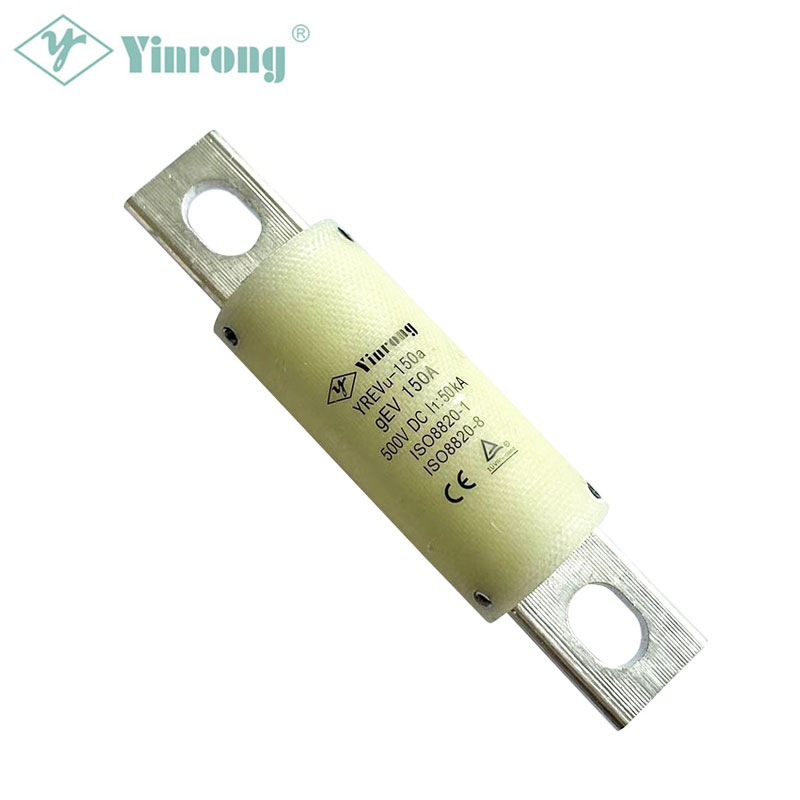

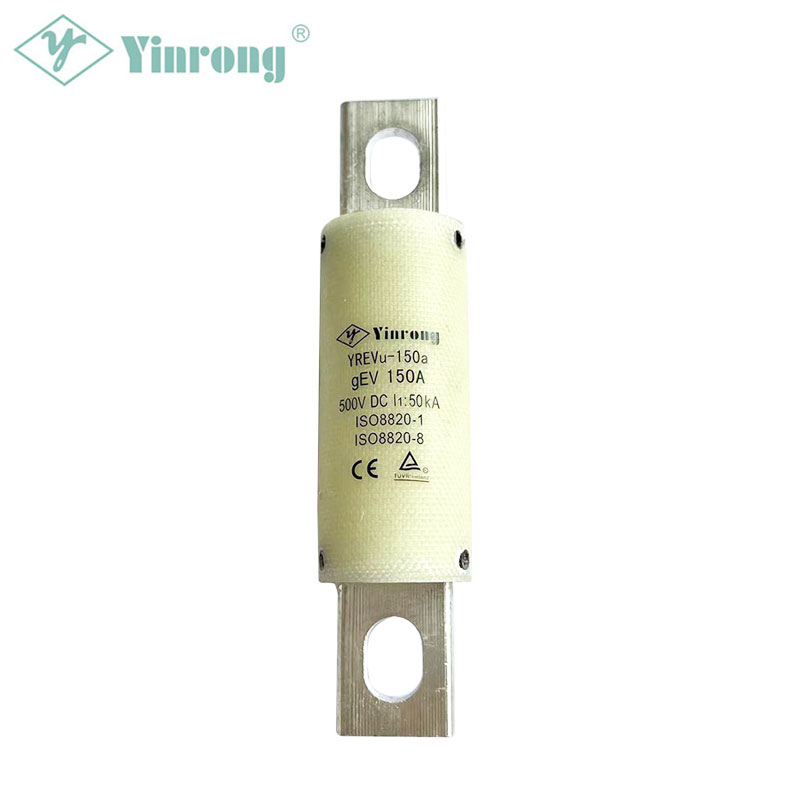

500VDC 150A HV Auto EVSE Fuse Link

Galaxy Fuse is a leading China 500VDC 150A HV Auto EVSE Fuse Link manufacturers. China fuse factory Galaxy Fuse (Yinrong) YREVu series gEV fuses are generally engineered to offer optimum auxiliary protection and high-performance protection in electrical systems and hybrid electrical vehicles, up to 500VDC in amperes from 60-150A. The YREVu-150a was also specifically designed from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Send Inquiry

Product Description

500VDC 150A HV Auto EVSE Fuse Link

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 500VDC electrical system available
• 60-150A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Central mount cylindrical configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size Rated Voltage (V) Rated Current (A) Breaking Capacity (kA) Overall Dimension
A B1 B2 C φd E F G×H
YREVu-150a 500VDC 60, 80, 100, 125, 150 50kA 101 83 79 56 26 3.2 18.2 8.5×10.5

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
