500VDC 200A HV Auto EVSE Fuse Link

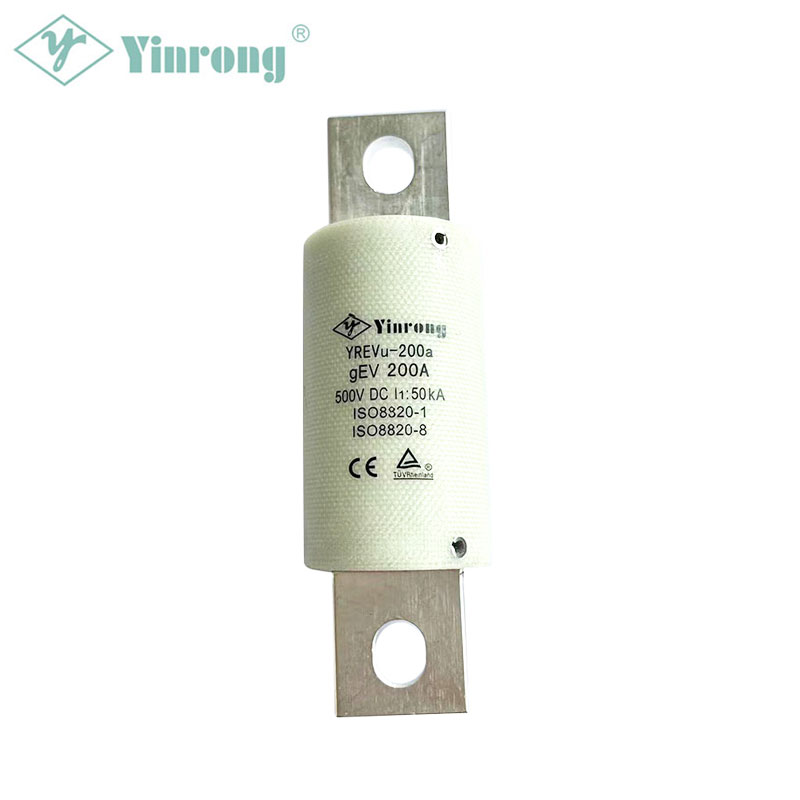

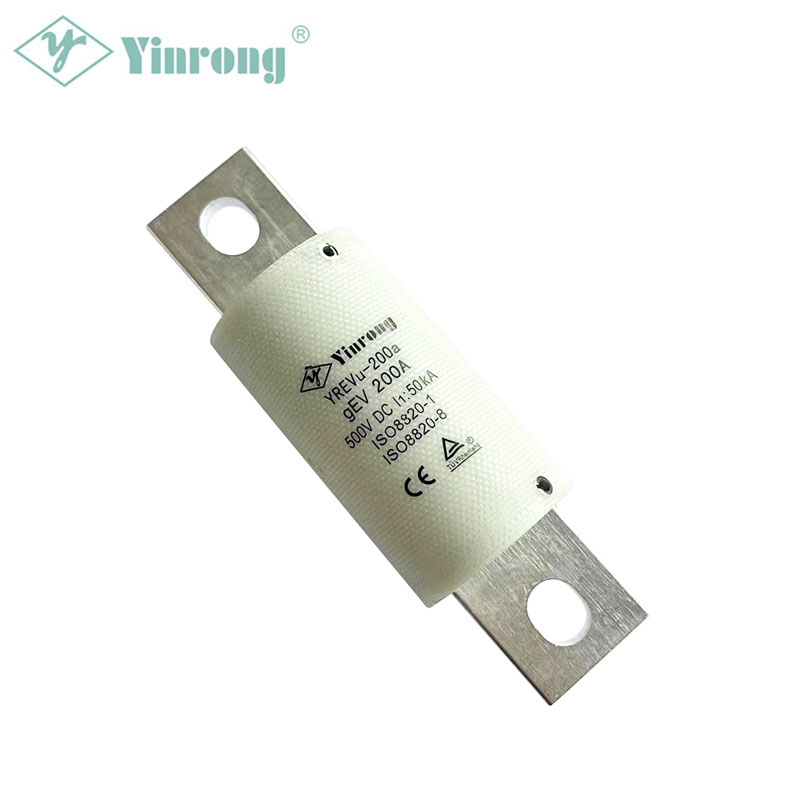

China fuse producer Galaxy Fuse (Yinrong) YREVu series gEV fuses are generally engineered to supply optimum auxiliary protection and high-performance protection in electrical systems and new energy electrical vehicles, up to 500VDC in amperes from 110-200A. The YREVu-200a was also specifically designed from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Send Inquiry

Product Description

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 500VDC electrical system available
• 110-200A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Central mount cylindrical configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size Rated Voltage (V) Rated Current (A) Breaking Capacity (kA) Overall Dimension
A B1 B2 C φd E F G×H
YREVu-200a 500VDC 110, 125, 150, 200 50kA 101 84.3 80.3 56 32 5 22 8.5×10.5

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
