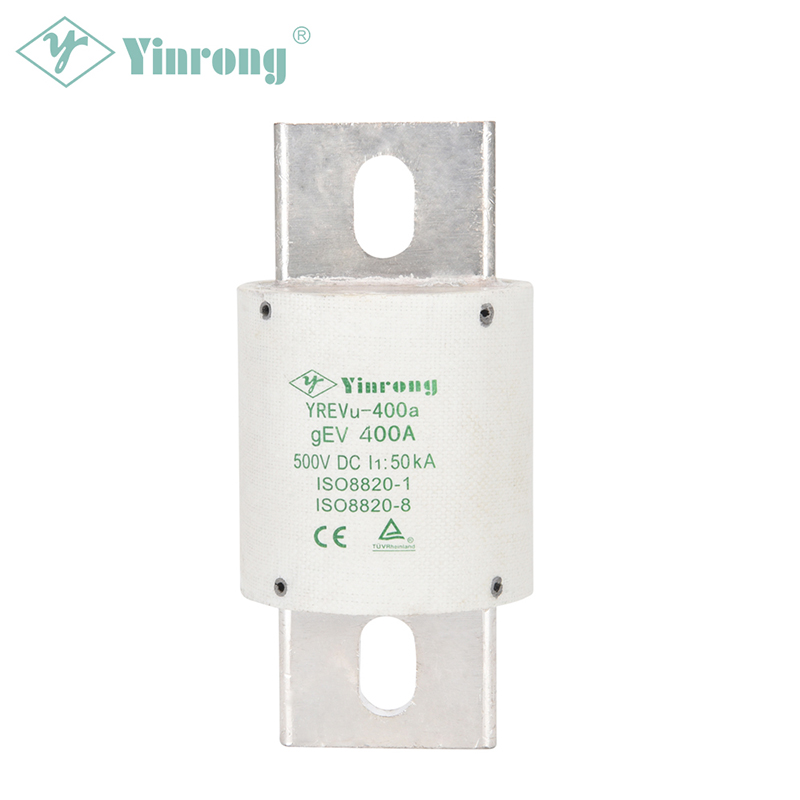

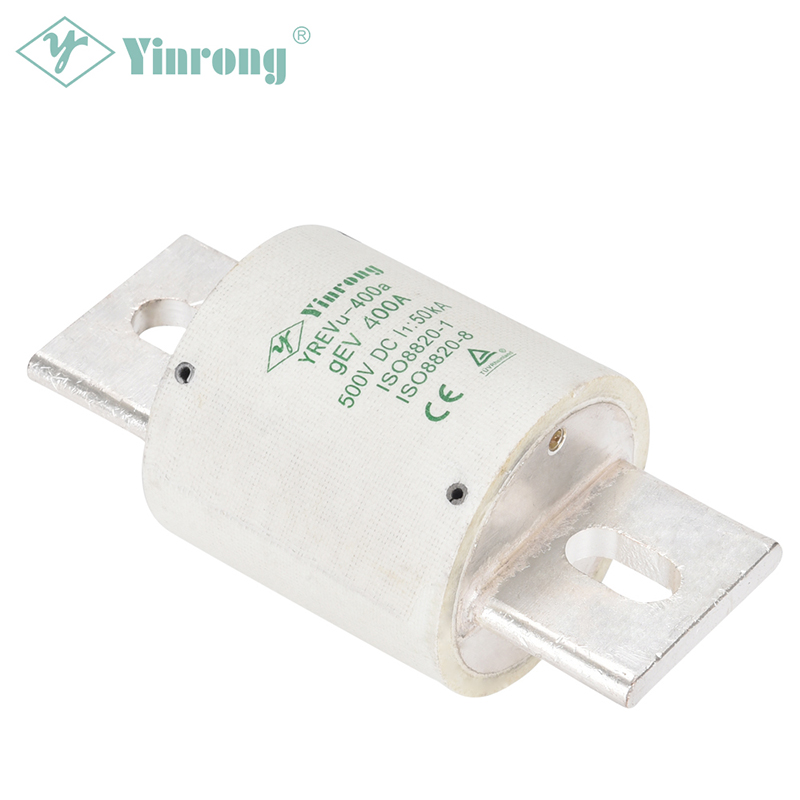

500VDC 400A HV Auto and EVSE Fuse Link

Galaxy Fuse (Yinrong) YREVu series gEV fuses are specially designed and tested to provide optimum auxiliary protection and high-performance protection in electrical systems and Hybrid Electrical Vehicles, up to 500VDC in amperes from 225-400A. The YREVu-500VDC 400A HV Auto and EVSE Fuse Link was specifically built from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Send Inquiry

Product Description

500VDC 400A HV Auto and EVSE Fuse Link

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 500VDC electrical system available
• 225-400A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Bolt mount round body configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size Rated Voltage (V) Rated Current (A) Breaking Capacity (kA) Overall Dimension
A B1 B2 C φd E F G×H
YREVu-400a 500VDC 225, 250, 300, 350, 400 50kA 113.5 90.9 76 56 57.6 6 39.7 10.5×18

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
