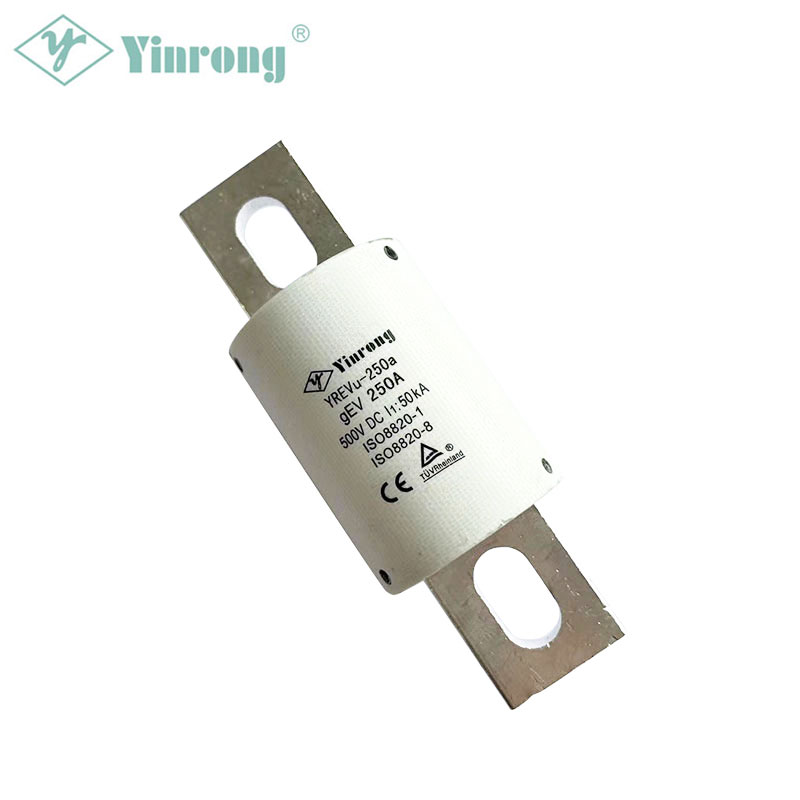

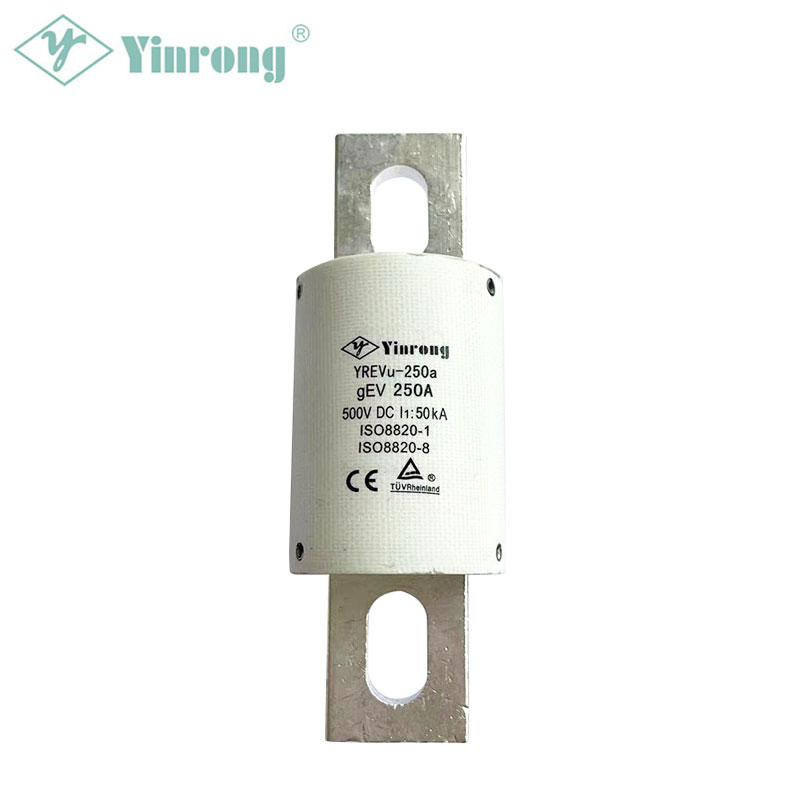

500VDC 250A HV Auto EVSE Fuse Link

YREVu-250a

Galaxy Fuse is a leading China 500VDC 250A HV Auto EVSE Fuse Link manufacturers. China fuse expert Galaxy Fuse (Yinrong) YREVu series gEV fuses are generally designed and tested to provide optimum auxiliary protection and high-performance protection in electrical systems and new energy electrical vehicles, up to 500VDC in amperes from 100-250A. The YREVu-250a was also specifically designed from the ground up to meet the automotive vibration requirements and standards of the new energy electric vehicle industry.

Model:YREVu-250a

Send Inquiry

Product Description

500VDC 250A HV Auto EVSE Fuse Link

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 500VDC electrical system available
• 110-200A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Central mount cylindrical configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	A	B1	B2	C	φd	E	F	G×H
YREVu-250a	500VDC	100, 125, 150, 200, 250	50kA	110	85.9	76.5	56	35.2	6	21	10.3×15

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
