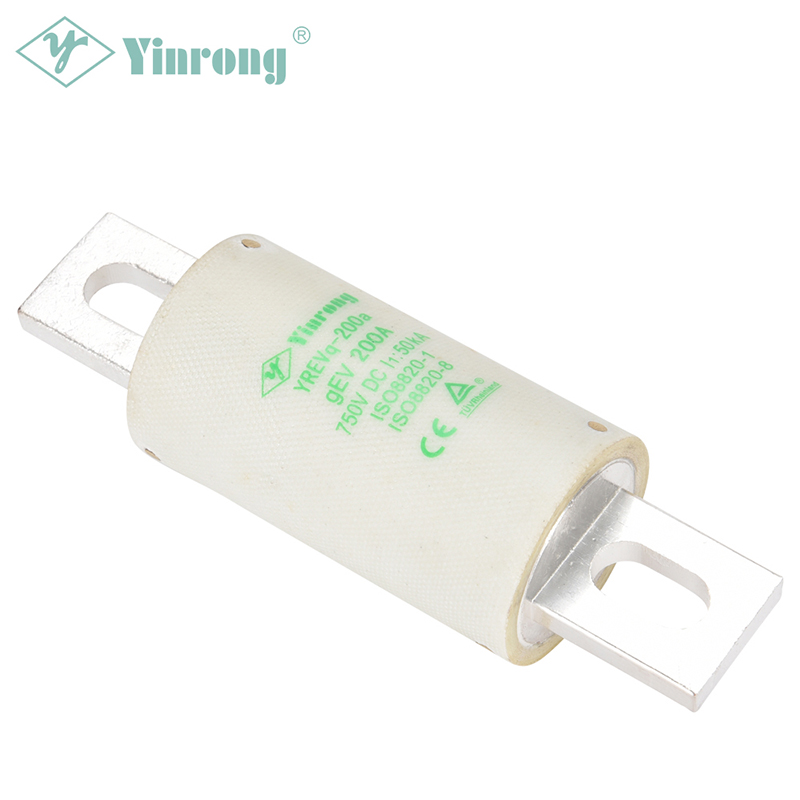

750VDC 200A EVSE Battery Cell Fuse Link

YREVq-200a

Galaxy Fuse is a leading China 750VDC 200A EVSE Battery Cell Fuse Link manufacturers. Galaxy Fuse (Yinrong) YREVq series gEV fuses are specially designed and tested to provide optimum auxiliary protection and high-performance protection in electrical systems and Hybrid Electrical Vehicles, voltage at 700VDC and 750VDC, currents from 125-200A. The YREVq-200a 750VDC was specifically built from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Model:YREVq-200a

Send Inquiry

Product Description

750VDC 200A EVSE Battery Cell Fuse Link

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 700VDC/750VDC electrical system available
• 125-200A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Bolt mount round shape configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	A	B1	B2	C	φd	E	F	G×H
YREVq-200a	750VDC	125, 150, 200	50kA	128.5	106.2	88.8	72.5	39.5	6	25.4	10.3×19

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
