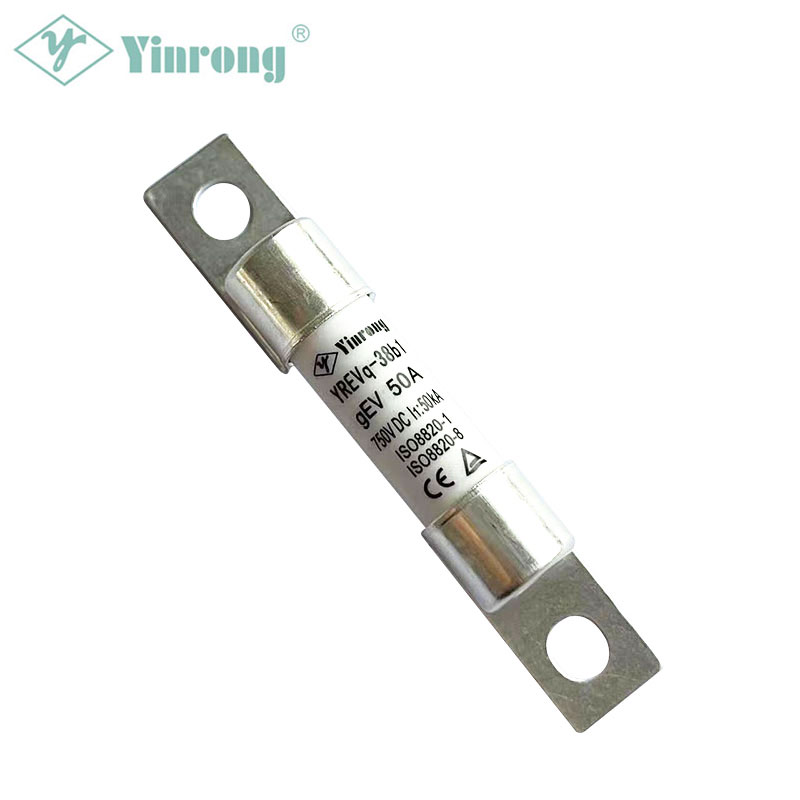

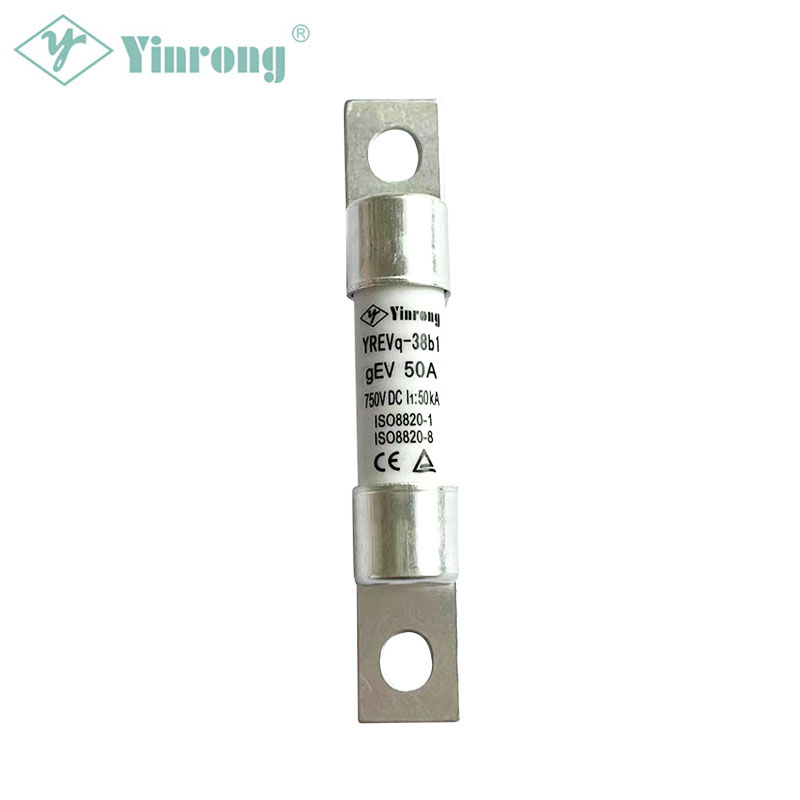

750VDC 50A EV Automotive EVSE Fuse Link

China fuse manufacturer Galaxy Fuse (Yinrong) YREVq series gEV fuses are specially engineered to provide optimum auxiliary protection and high-performance protection in electrical systems and new energy electrical vehicles, rated voltage at 700VDC and 750VDC, rated currents from 10-50A. The YREVq-38b1 was also built from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Send Inquiry

Product Description

Approvals & Standards

• GB/T31465.6
• ISO8820-1
• ISO8820-8
• UL248-1
• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 700VDC/750VDC electrical system available
• 10-50A ampere ratings available
• Conforms to ISO and IEC standards for global acceptance
• Bolt mount round shape configuration
• 50kA breaking capacity approved by TUV
• Low power dissipation and temperature rise for energy efficiency

Applications

• EV/HEV
• Power battery pack protection
• Power battery charging
• EV system high voltage distribution box PDU/BDU branch circuit protection
• EV system high voltage maintenance switch MSD
• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size Rated Voltage (V) Rated Current (A) Breaking Capacity (kA) Overall Dimension
A B C φd E F K G×H
YREVq-38b1 750VDC 10, 15, 20, 25, 30, 35, 40, 45, 50 50kA 66.3 54 38.8 10.5 0.78 10.4 12.7 5.4×6.1

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
