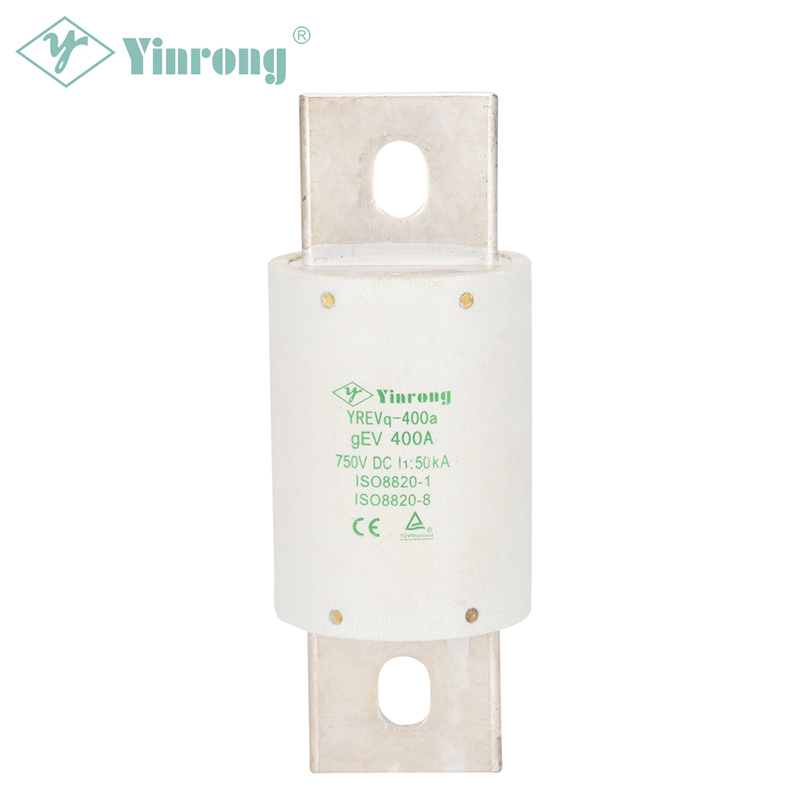

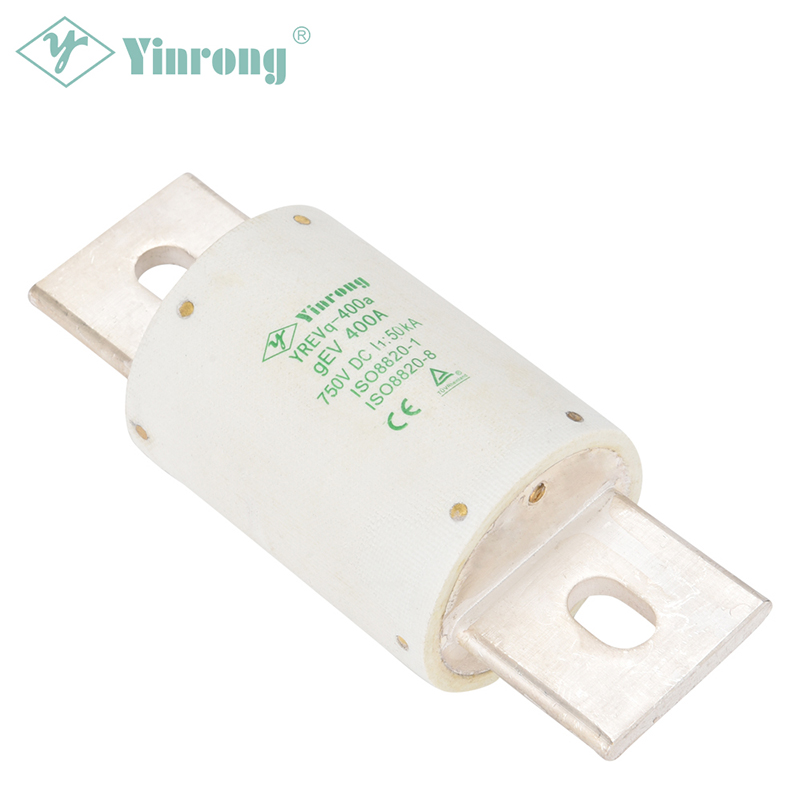

750VDC 400A EVSE Battery Fuse Link

YREVq

Galaxy Fuse (Yinrong) YREVq series gEV fuses are specially designed and tested to provide optimum auxiliary protection and high-performance protection in electrical systems and Hybrid Electrical Vehicles, voltage at 700VDC and 750VDC, currents from 225-400A. The YREVq-750VDC 400A EVSE Battery Fuse Link was specifically built from the ground up to meet the automotive vibration requirements and standards of the electric vehicle industry.

Model:YREVq

Send Inquiry

Product Description

750VDC 400A EVSE Battery Fuse Link

Approvals & Standards

• GB/T31465.6

• ISO8820-1

• ISO8820-8

• UL248-1

• IEC60269-7

Class of Operation

• gEV

Features & Benefits

• 700VDC/750VDC electricalsystem available

• 225-400A ampere ratings available

• Conforms toISO andIEC standards for global acceptance

• Bolt mount round shape configuration

• 50kA breaking capacity approved by TUV

• Low power dissipationand temperature rise for energy efficiency

Applications

• EV/HEV

• Power battery pack protection

• Power battery charging

• EV system high voltage distribution box PDU/BDU branch circuit protection

• EV system high voltage maintenance switch MSD

• Energy storage system

Country of Origin

• People's Republic of China

Parameters

Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	Overall Dimension
Model/Size	Rated Voltage (V)	Rated Current (A)	Breaking Capacity (kA)	A	B1	B2	C	φd	E	F	G×H
YREVq-400a	750VDC	225, 250, 300, 350, 400	50kA	130	107.3	92.3	72.5	53.2	6	39.8	10.5×18

Size (mm)

There may be deviations in dimensions, subject to the actual product dimensions.
