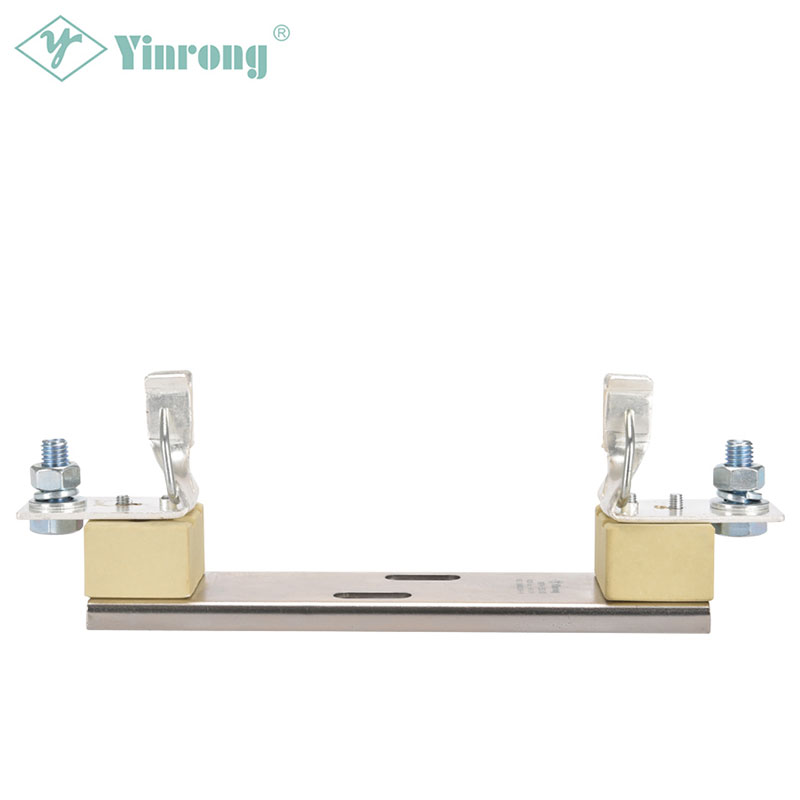

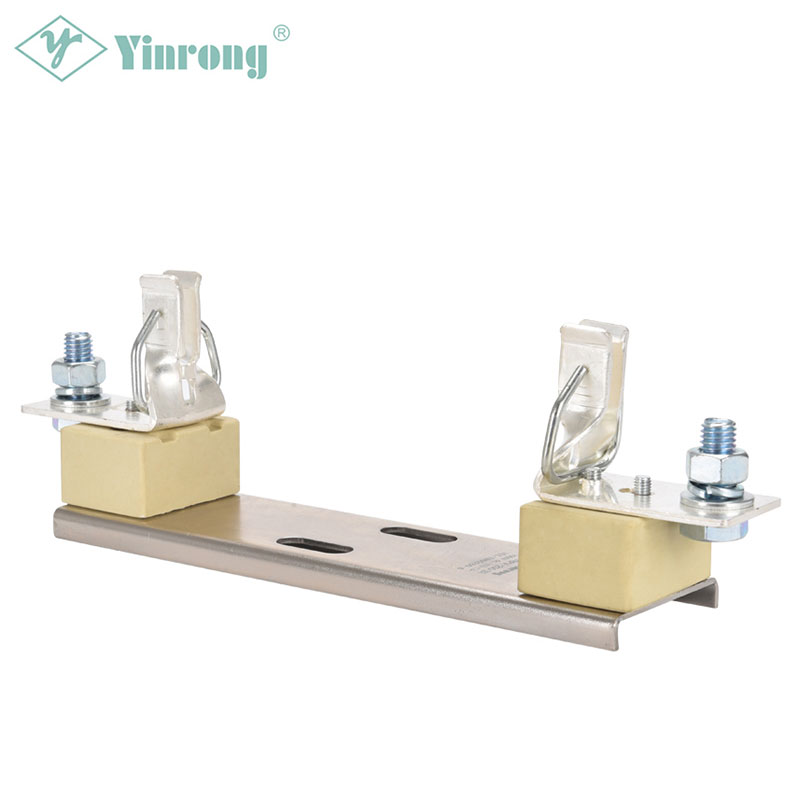

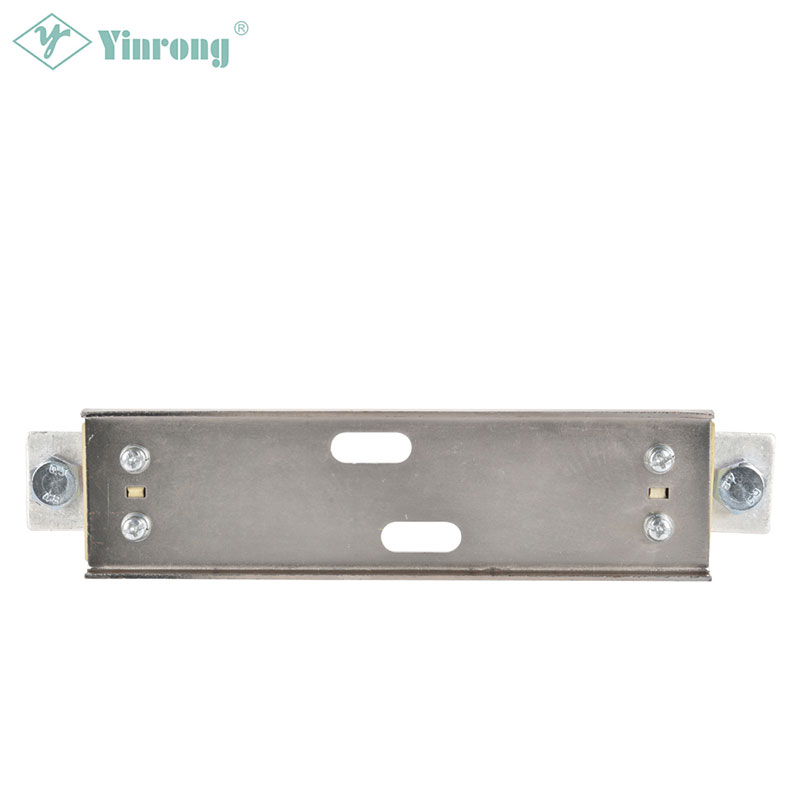

1500VDC 250A NH1XL Solar PV Fuse Base
  • 1500VDC 250A NH1XL Solar PV Fuse Base1500VDC 250A NH1XL Solar PV Fuse Base
  • 1500VDC 250A NH1XL Solar PV Fuse Base1500VDC 250A NH1XL Solar PV Fuse Base
  • 1500VDC 250A NH1XL Solar PV Fuse Base1500VDC 250A NH1XL Solar PV Fuse Base

1500VDC 250A NH1XL Solar PV Fuse Base

The YRPV-250D 1500VDC NH1XL PV Fuse Holder is specifically designed to protect and isolate Photovoltaic (PV) combiner boxes and other DC system. Fuse link size YRPV-250D 1500VDC NH1XL is recommended for the safe protection of 1500VDC Photovoltaic (PV) systems. YRPV-250D 1500VDC NH1XL PV Fuse is suitable for PV inverter protection and combiner boxes applications. YRPV-250D 1500VDC NH1XL PV Fuse is middle in size, has higher ampere ratings, and it also has high-strength steel plate. The NH screw mount is best placed in the cabinet of the Photovoltaic system.

Send Inquiry

Product Description


Approvals & Standards

• IEC60269-1
• EN60269-6

Class of Operation

• gPV

Features & Benefits

• YRPV-250D 1500VDC NH1XL Fuse Link recommended
• 1500VDC Photovoltaic (PV) system available
• 250A ampere ratings
• Meets IEC IEC60269-6 standard for global acceptance
• Steel plate enables high strength and durability
• Low temperature rise for better performance of the circuit protection
• NH screw mountable

Applications

• Combiner box
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection

Recommendations:

• Do not operate under load
• Use 75°C CU wire only

Country of Origin

• People's Republic of China


Parameters

Product code Rated current Rateed voltage Safety certificate Fitted with fuse-link model size Net weight
YRPV-250D 250A 1500Vdc YRPV-250D 0.59kg
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)
