DC Hrc Fuse Manufacturers

The YRPV-63 1000VDC 14×65mm PV Fuse Holder has been specifically designed for the protection of Photovoltaic (PV) systems. The recommended fuse link size is 14×65mm, which can safely protect 1000VDC Photovoltaic (PV) systems. YRPV-63 1000VDC 14×65mm PV Fuse offers higher amperage protection in less space. The most common applications of this YRPV-63 1000VDC 14×65mm PV Fuse are PV combiner boxes, inverters, PV string, PV array protection and so on. 1000VDC 63A 14×65mm Solar PV DIN Rail Fuse Holder was made of the flame-retardant shell with V0 standard, and the dead-front design made it available to fit most busbar mounting in the Photovoltaic (PV) system.

Zhejiang Galaxy Fuse Co., Ltd. (Yinrong)’s YRPV-20 1000VDC 20A 8×31.5mm Solar Light PV Fuse Holder has been engineered to meet the emerging circuit protection needs for the 1000VDC Photovoltaic (PV) system. The recommended fuse link size is 8×31.5mm, which can effectively protect 1000VDC Photovoltaic (PV) systems. The main application of this YRPV-20 1000VDC 8×31.5mm PV Fuse is Solar Photovoltaic (PV) Street Light (Lamp). YRPV-20 1000VDC 8×31.5mm PV Fuse Holder was made by the flame-retardant shell with V0 standard, and the compact design contributed to low-temperature rise when the holder was installed into a Photovoltaic (PV) system.

Galaxy Fuse’s (Yinrong) XRNP type high voltage HRC current limiting fuses are designed with insert installation, which is convenient for installation and removal. The 12kV 15A XRNP Current Limiting Fuse is made of high-resistance metal wire and low-resistance metal wire. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand. The fuse tube is made from heat resistance, high-duty ceramic or epoxy glass. When a fault circuit happens and causes an arc, quartz sand will extinguishes the arc immediately.

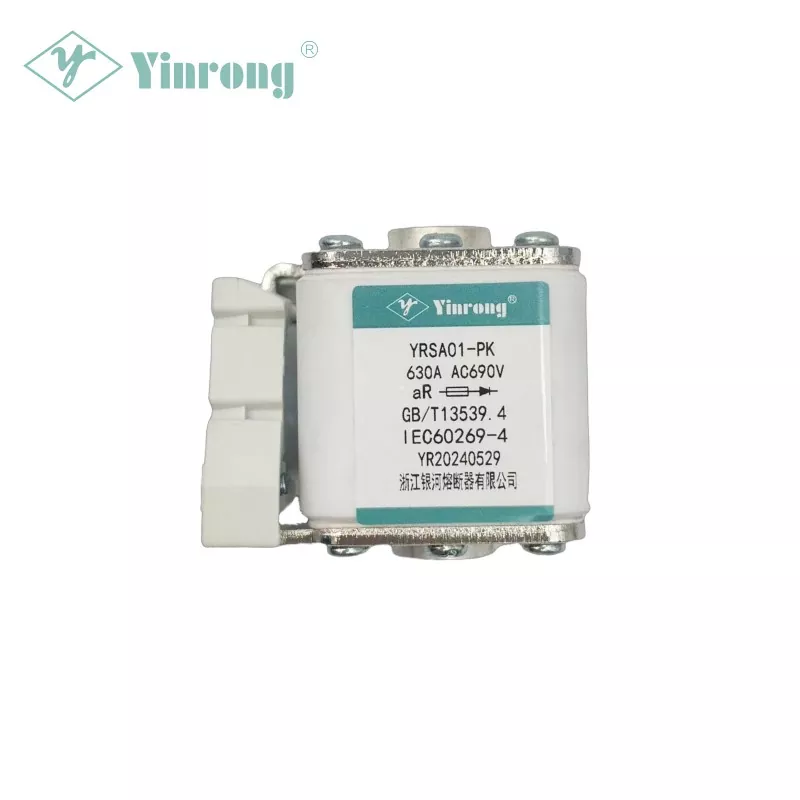

Galaxy Fuse is a leading China 1000V DIN Blade Square Body High Speed Fuse manufacturers. China semiconductor fuse manufacturer Galaxy Fuse (Yinrong)’s YRSA1-GK square body high speed fuse provides flexibility in equipment design and circuit protection for power conversion equipment. YRSA square body fuses are available in two different operation classes gR and aR. YRSA1-GK gR fuse is designed for both overload and short-circuit protection. YRSA1-GK aR fuse is designed for short-circuit protection only. YRSA1-GK Square body semiconductor fuse is specially designed to protect semiconductor devices, which provides a wide amperage rating of 160-630A under the rated voltage of 1250VAC/1000VDC, and can fit most semiconductor devices. This YRSA1-GK Square body high speed fuse conformed to the nation standard GB13539.4 and the international electrical committee standard IEC60269-4. This square series of fuses for semiconductor equipment protection has low I²t value, high current limiting capability and high breaking capability. Galaxy Fuse (Yinrong) also affords various kinds of high speed fuses to meet customers’ requirements.

Galaxy Fuse’s (Yinrong) 690VAC 160A NT00 HRC Fuse is generally designed to cover a wide range of protection for most of industrial applications with different operating class such as gG/gL, aM and aR. This square body with blade terminals fuse was made in a standardized configuration for global acceptance. 690VAC 160A NT00 HRC Fuse is available in multiple ampere ratings from 4A up to 160A, which helps match specific requirements in various industrial applications, such as motors, transformers, low voltage distribution, control circuits and so on.

YRPV-40 1000VDC Solar PV Fuse Link was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings. This cylindrical style fuse link with a 14×51mm compact size can protect 1000VDC Photovoltaic (PV) systems safely. 1000VDC 40A 14×51mm Solar PV Thermal Fuse Link offers multiple ampere ratings from 10A to 40A, which are capable of interrupting overload current associated with faulted Photovoltaic (PV) systems. Zhejiang Galaxy Fuse Co., Ltd. (Yinrong), a front-line Chinese Solar PV Fuse manufacturer, aims to provide customers with safer circuit protection.
