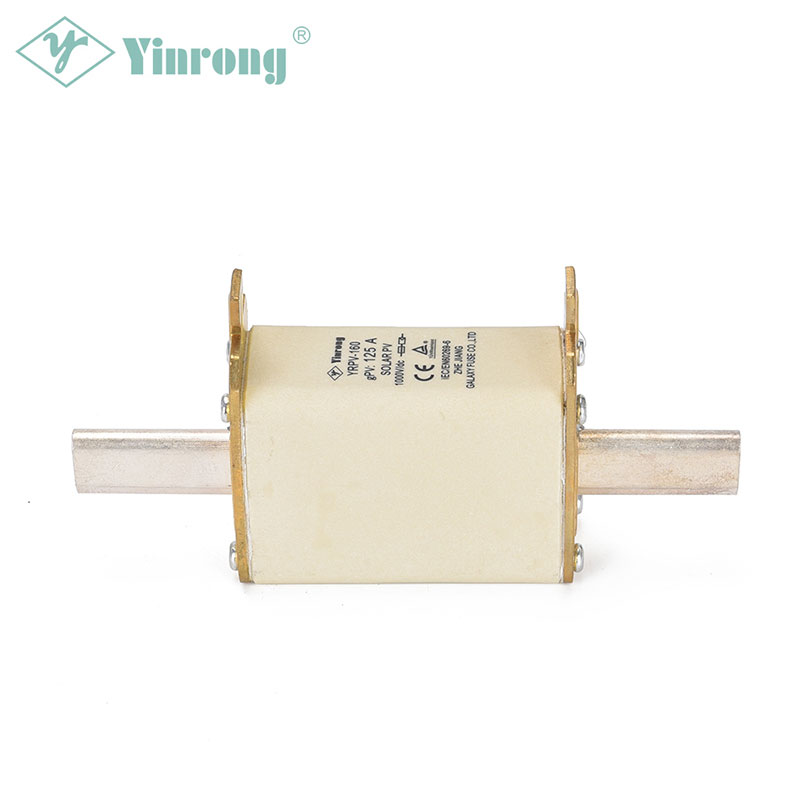

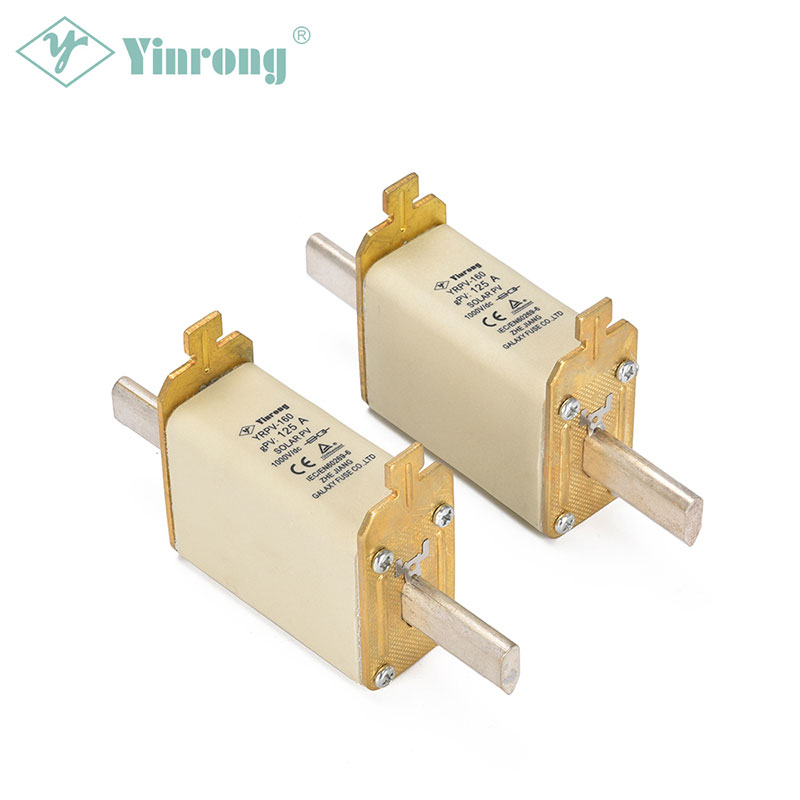

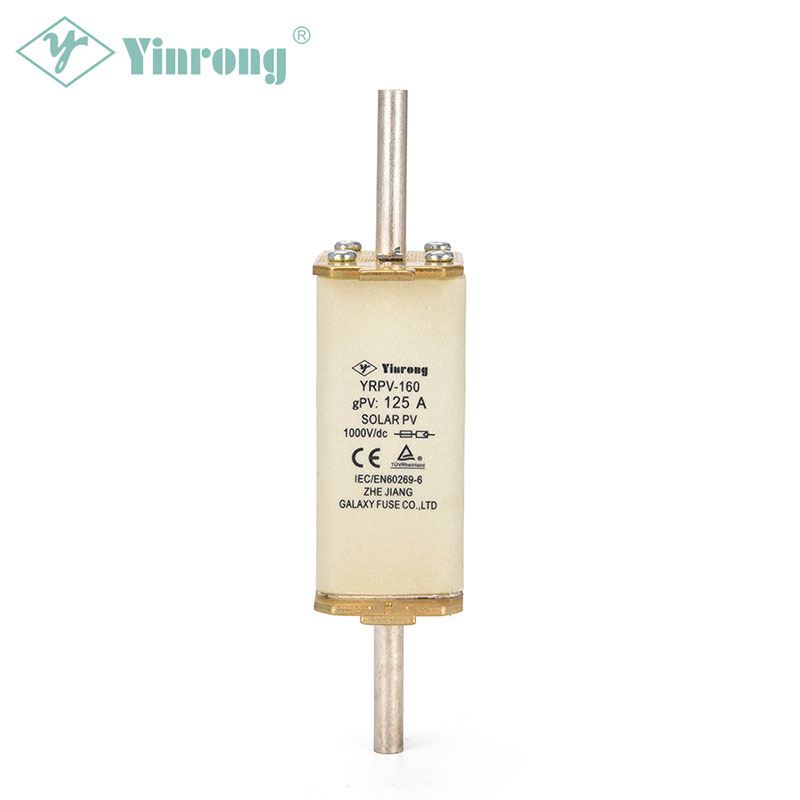

1000VDC 160A NH0 Solar PV Fuse Link
  • 1000VDC 160A NH0 Solar PV Fuse Link1000VDC 160A NH0 Solar PV Fuse Link
  • 1000VDC 160A NH0 Solar PV Fuse Link1000VDC 160A NH0 Solar PV Fuse Link
  • 1000VDC 160A NH0 Solar PV Fuse Link1000VDC 160A NH0 Solar PV Fuse Link
  • 1000VDC 160A NH0 Solar PV Fuse Link1000VDC 160A NH0 Solar PV Fuse Link

1000VDC 160A NH0 Solar PV Fuse Link

Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) is a Chinese fuse expert, who developed Solar PV Fuse independently to meet the emerging needs of the Photovoltaic (PV) industry worldwide. YRPV-160 1000VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced NH construction fuse link with an NH0 size can effectively protect 1000VDC Photovoltaic (PV) systems. YRPV-160 1000VDC Solar PV Fuse Link provides various ampere ratings from 40-160A, which helps to meet specific situations in different Photovoltaic (PV) applications, such as PV combiner box and PV inverter.

Send Inquiry

Product Description

Approvals & Standards

• IEC60269-6
• GB/T13539.6

Class of Operation

• gPV

Features & Benefits

• 1000VDC Photovoltaic (PV) system available
• 40-160A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized NH0 construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• 20kA breaking capacity approved by TUV, CE

Applications

• Combiner box
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection

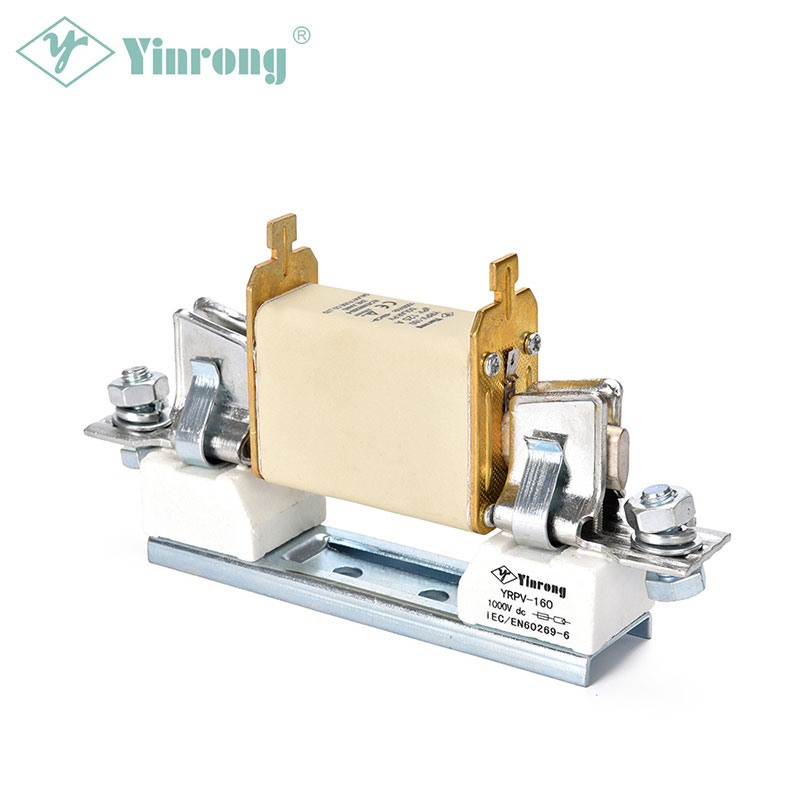

Recommended Fuse Holder

• YRPV-160 1000VDC Fuse Base

Country of Origin

• People's Republic of China

Parameters

Product code Rated current Breaking capactity Safety certificate Power loss1.0In(W) Net weight
YRPV160/40NH 40A 1000Vdc
TUV&CE:20kA
5.5 0.275kg
YRPV160/50NH 50A 6.2
YRPV160/63NH 63A 7
YRPV160/80NH 80A 8.4
YRPV160/100NH 100A 10.8
YRPV160/125NH 125A 13.6
YRPV160/160NH 160A 17.4
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)

Model Explanation

① ……Galaxy fuse code……YR
②……“Photovoltaic”……PV
③……Maximum rated current of fuse……160A
④ ……Rated current of fuse link……E.g:100A

Time-current Curve
