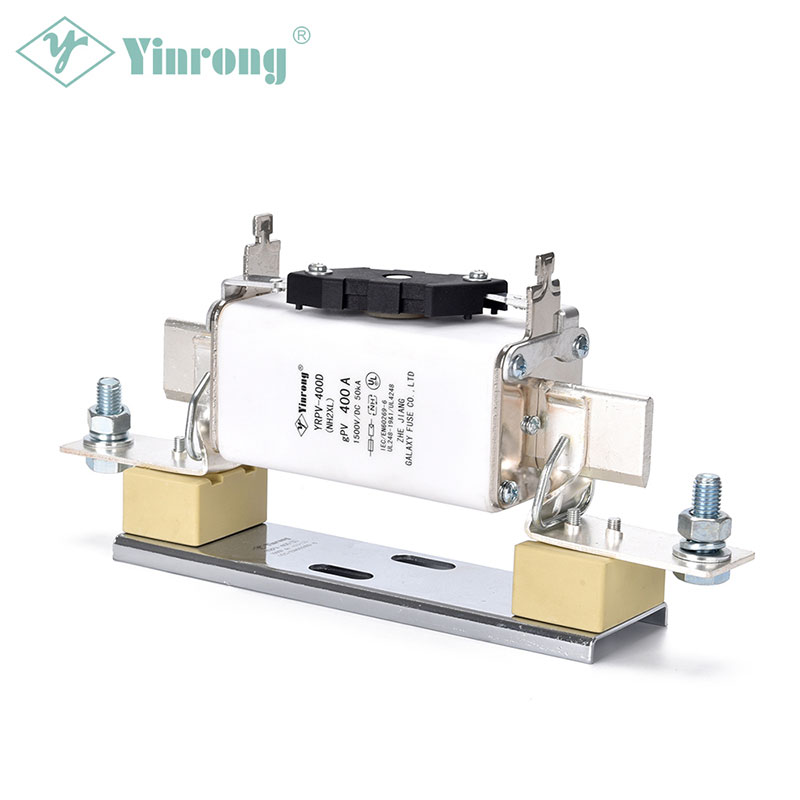

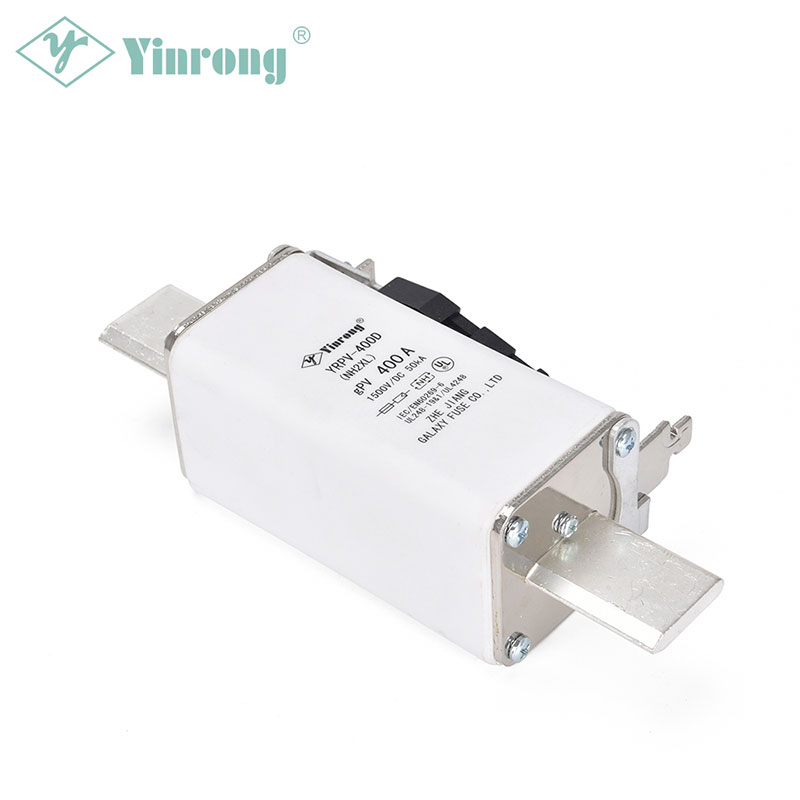

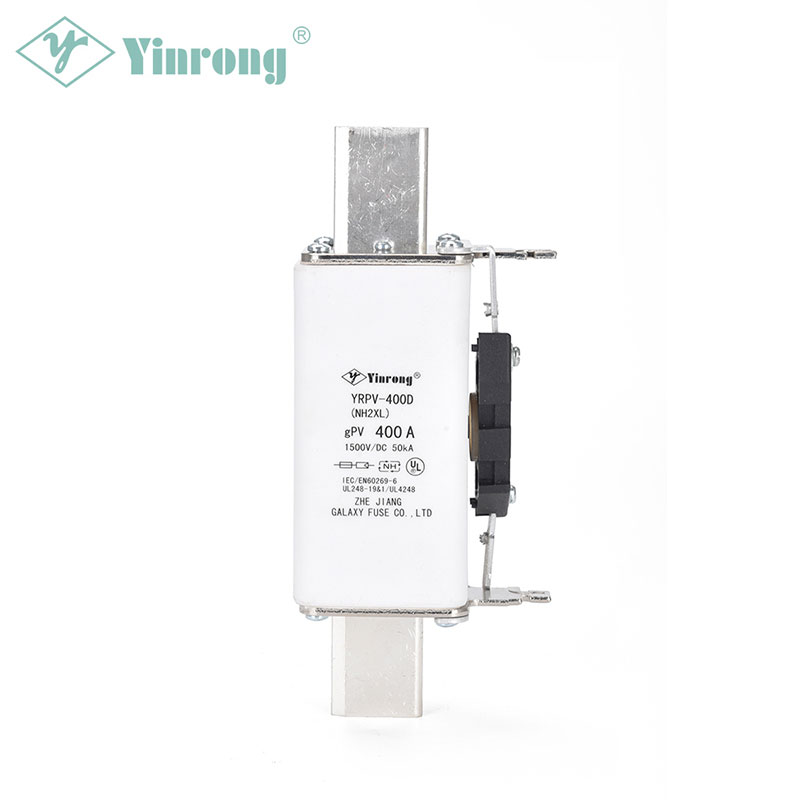

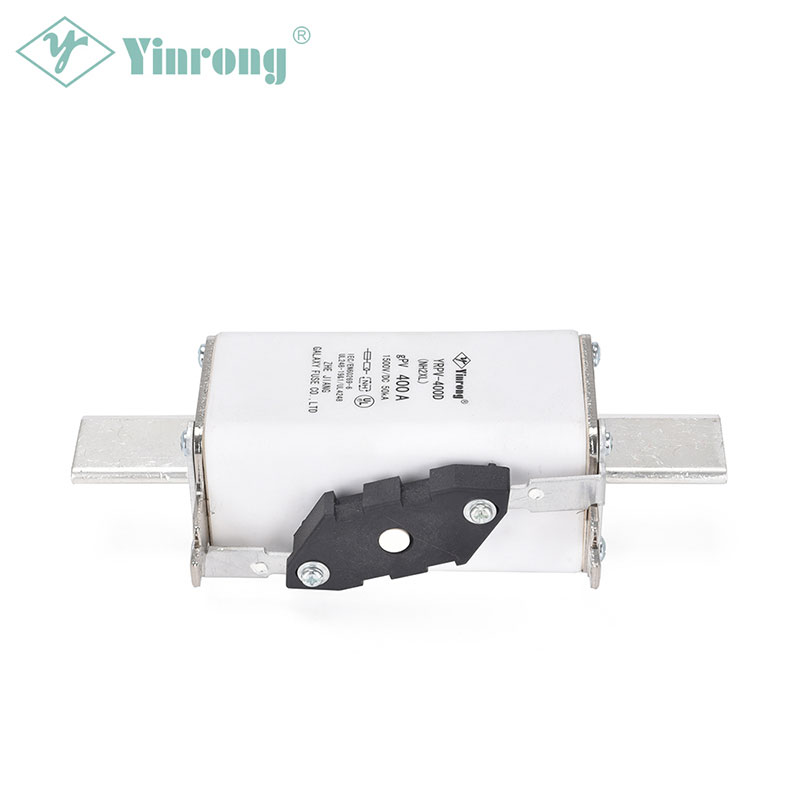

1000VDC 400A NH2XL Solar PV Fuse Link with Striker
  • 1000VDC 400A NH2XL Solar PV Fuse Link with Striker1000VDC 400A NH2XL Solar PV Fuse Link with Striker
  • 1000VDC 400A NH2XL Solar PV Fuse Link with Striker1000VDC 400A NH2XL Solar PV Fuse Link with Striker
  • 1000VDC 400A NH2XL Solar PV Fuse Link with Striker1000VDC 400A NH2XL Solar PV Fuse Link with Striker
  • 1000VDC 400A NH2XL Solar PV Fuse Link with Striker1000VDC 400A NH2XL Solar PV Fuse Link with Striker

1000VDC 400A NH2XL Solar PV Fuse Link with Striker

YRPV-400D 1000VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced construction fuse link with an NH2XL standardized size can protect 1000VDC Photovoltaic (PV) systems effectively. 1000VDC 400A NH2XL Solar PV Fuse Link with Striker offers various ampere ratings from 125A to 400A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV array protection, PV Inverter DC input protection. Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) is developing new Solar PV Fuse products constantly to meet the emerging needs of the Photovoltaic (PV) industry.

Send Inquiry

Product Description

1000VDC 400A NH2XL Solar PV Fuse Link with Striker

Approvals & Standards

• IEC60269-6
• GB/T13539.6

Class of Operation

• gPV

Features & Benefits

• 1000VDC Photovoltaic (PV) system available
• 125-400A ampere ratings available
• Meets IEC IEC60269-6 standard for global acceptance
• Standardized NH2XL construction
• Low power dissipation design for high energy efficiency
• NH screw mountable
• 30kA breaking capacity approved by TUV, CE
• Striker and microswitch available

Applications

• Combiner box
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection

Recommended Fuse Holder

• YRPV-400D 1000VDC Fuse Base

Optional Accessories

• Striker
• Microswitch

Country of Origin

• People's Republic of China

Parameters

Product code Rated current Breaking capacity Safety certificate Power loss
1.0In(W)
Net weight



YRPV400(D)/125NH 125A 1000Vdc
TUV&CE:30kA
21.0 1.25kg
YRPV400(D)/160NH 160A 29.5
YRPV400(D)/200NH 200A 35.6
YRPV400(D)/250NH 250A 37.5
YRPV400(D)/315NH 315A 46.3
YRPV400(D)/350NH 350A 53.8
YRPV400(D)/400NH 400A 62.4

Note:DENOTES FOR CERTIFICATION APPROVED;DENOTES FOR PENDING CERTIFICATION

Size (mm)

Model Explanation

① ……Galaxy fuse code……YR

②……“Photovoltaic”……PV

③……Maximum rated current of fuse……400A

④ ……Rated current of fuse link……E.g:315A

Time-current Curve

We reserve the right to make technical alterations
