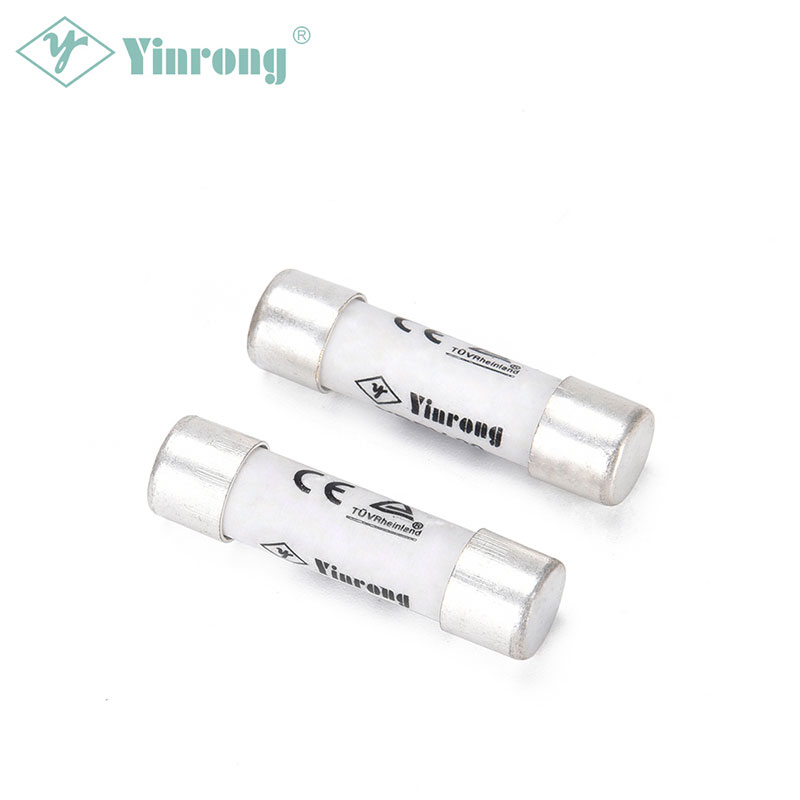

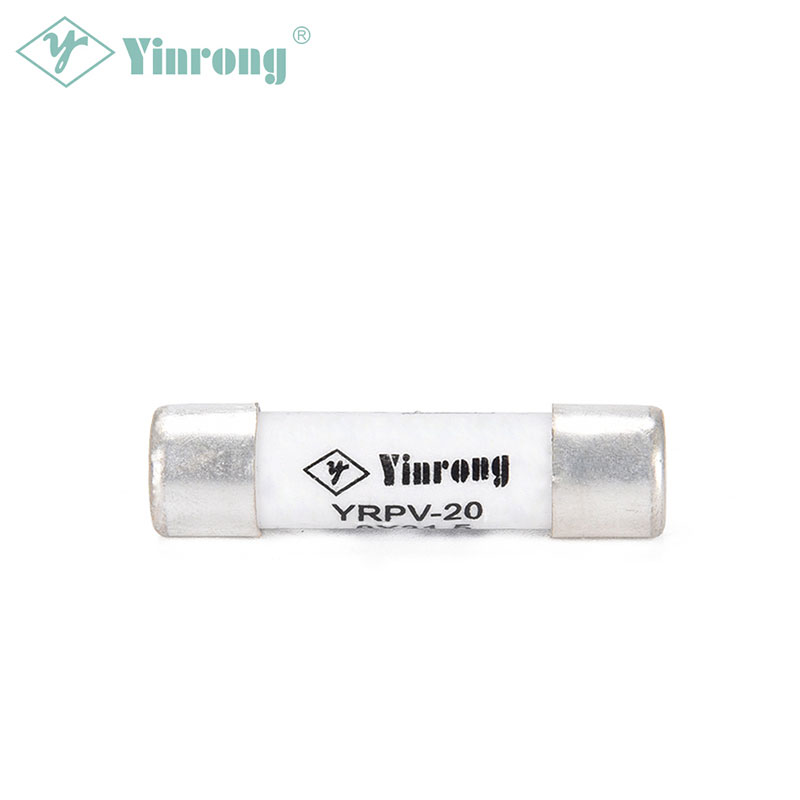

1000VDC 20A 8×31.5mm Solar Light PV Fuse Link

YRPV-20

YRPV-20 1000VDC Solar PV Fuse Link has been engineered to meet the emerging circuit protection needs for 1000VDC Photovoltaic (PV) system. This cylindrical style fuse link with an 8×31.5mm standardized size can protect 1000VDC Photovoltaic (PV) systems effectively. 1000VDC 20A 8×31.5mm Solar Light PV Fuse Link provides multiple ampere ratings from 2A to 20A, which is specifically applied to the circuit of the Solar Photovoltaic (PV) street light (lamp). As a Chinese Solar Photovoltaic (PV) Fuse manufacturer, Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) strictly follow industry standards and quality systems in design and production.

Model:YRPV-20

Send Inquiry

Product Description

1000VDC 20A 8×31.5mm Solar Light PV Fuse Link

Approvals & Standards

• IEC60269-6
• GB/T13539.6

Class of Operation

• gPV

Features & Benefits

• 1000VDC Photovoltaic (PV) system available
• 2-20A ampere ratings available
• Meets IEC60269-6 standard for global acceptance
• Midget size for space-saving
• Durable cylindrical construction
• Low temperature rise for better electric performance
• DIN Rail mountable
• 10kA breaking capacity approved by TUV, CE

Applications

• Solar Photovoltaic (PV) Street Light (Lamp)

Recommended Fuse Holder

• YRPV-20 1000VDC Fuse Holder

Country of Origin

• People's Republic of China

Parameters

Product code	Rated current	Breaking capacity	Safety certificate			Power loss 1.0In(W)	Net weight
Product code	Rated current	Breaking capacity				Power loss 1.0In(W)	Net weight
YRPV20/02NF	2A	1000Vdc TUV&CE:10kA	●	●	○	1.85	4.8g
YRPV20/03NF	3A		●	●	○	2.2
YRPV20/05NF	5A		●	●	○	2.7
YRPV20/06NF	6A		●	●	○	2.9
YRPV20/08NF	8A		●	●	○	1.4
YRPV20/10NF	10A		●	●	○	1.6
YRPV20/12NF	12A		●	●	○	1.8
YRPV20/15NF	15A		●	●	○	2.0
YRPV20/20NF	20A		●	●	○	2.3

Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION

Size (mm)

Model Explanation

① ……Galaxy fuse code……YR

②……“Photovoltaic”……PV

③……Maximum rated current of fuse……40A

④ ……Rated current of fuse link……E.g:15A

Time-current Characteristic

Standard:IEC60269-6 & GB/T 13539.6
113% In	145% In
>1h non fusing	<1h fusing

Time-current Curve

We reserve the right to make technical alterations
