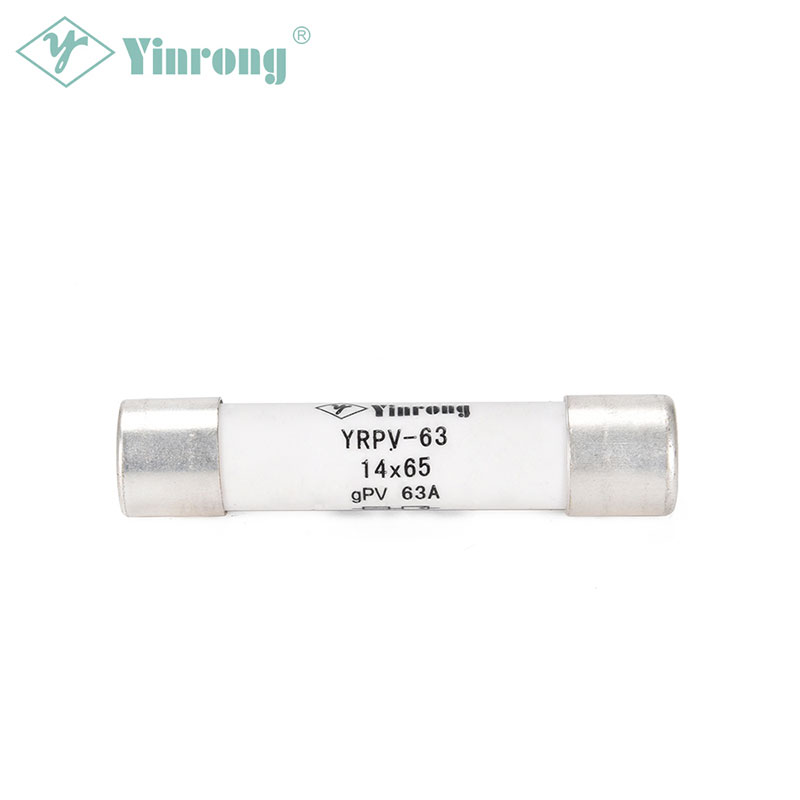

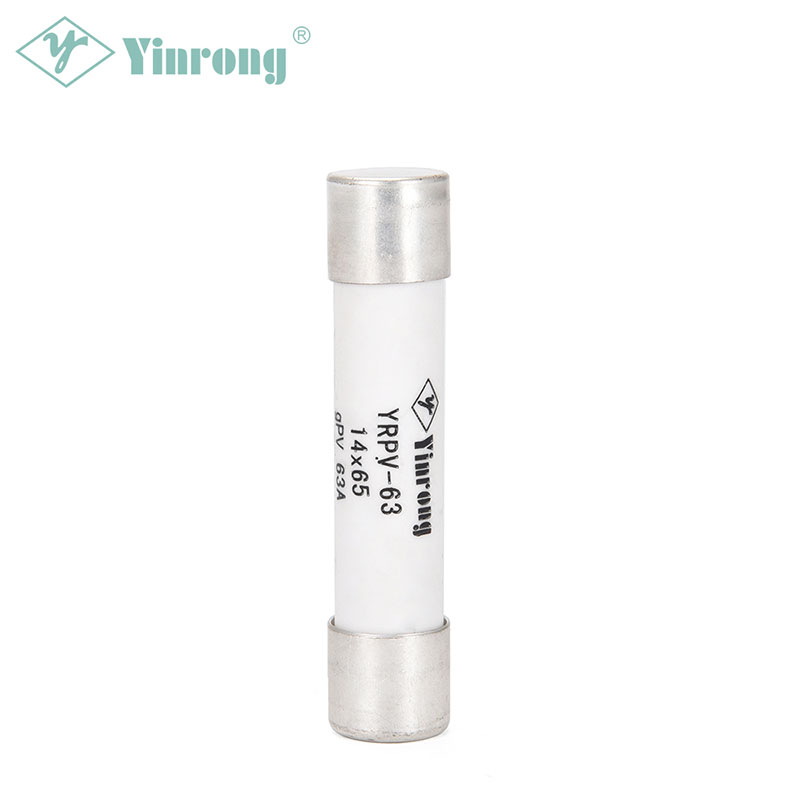

1000VDC 63A 14×65mm Solar PV Fuse Link
YRPV-63
YRPV-63 1000VDC Solar PV Fuse Link has been specifically designed for the protection of Photovoltaic (PV) systems. This unique cylindrical fuse link with a 14×65mm size makes it ideal for continuous current cycling and effectively protects 1000VDC Photovoltaic (PV) systems. 1000VDC 63A 14×65mm Solar PV Fuse Link provides high ampere rating protection from 10A to 63A in less space for increased application flexibility. Owe to the professional R＆D capacity and quality control, Zhejiang Galaxy Fuse Co., Ltd. (Yinrong) continuously innovates the Solar PV Fuse and aims to commit to a safer circuit worldwide.
Model:YRPV-63
Send Inquiry
Product Description
1000VDC 63A 14×65mm Solar PV Fuse Link
Approvals & Standards
• UL248-19Class of Operation
• gPVFeatures & Benefits
• 1000VDC Photovoltaic (PV) system available• 10-63A ampere ratings available
• Meets UL248-19 Photovoltaic standard for global acceptance
• Unique cylindrical construction(14×65mm) offers maximum 63A in smaller dimension
• High energy efficiency with low power dissipation performance
• DIN Rail mountable
Applications
• Combiner box• PV string, PV array protection
• Inverters
• Battery charge controllers
• In-line PV module protection
Recommended Fuse Holder
• YRPV-63 1000VDC Fuse HolderCountry of Origin
• People's Republic of China
Parameters
| Product code | Rated current | Breaking capacity | Safety certificate |
Power loss 1.0In(W) |
Net weight | ||
|---|---|---|---|---|---|---|---|
 |
 |
 |
|||||
| YRPV63NF | 63A | 1000Vdc:25kA | ○ | ○ | ○ | 9.7 | 31g |
Note:●DENOTES FOR CERTIFICATION APPROVED;○DENOTES FOR PENDING CERTIFICATION
Size (mm)
Model Explanation
① ……Galaxy fuse code……YR
②……“Photovoltaic”……PV
③……Maximum rated current of fuse……63A
④ ……Rated current of fuse link……E.g:15A
Time-current Characteristic
| UL248-19 | IEC60269-6 | |||
| 135% In | 200% In | 113% In | 145% In | |
| <1h fusing | <240s fusing | <360s fusing | >1h non fusing | 1h fusing |
Time-current Curve
We reserve the right to make technical alterations
