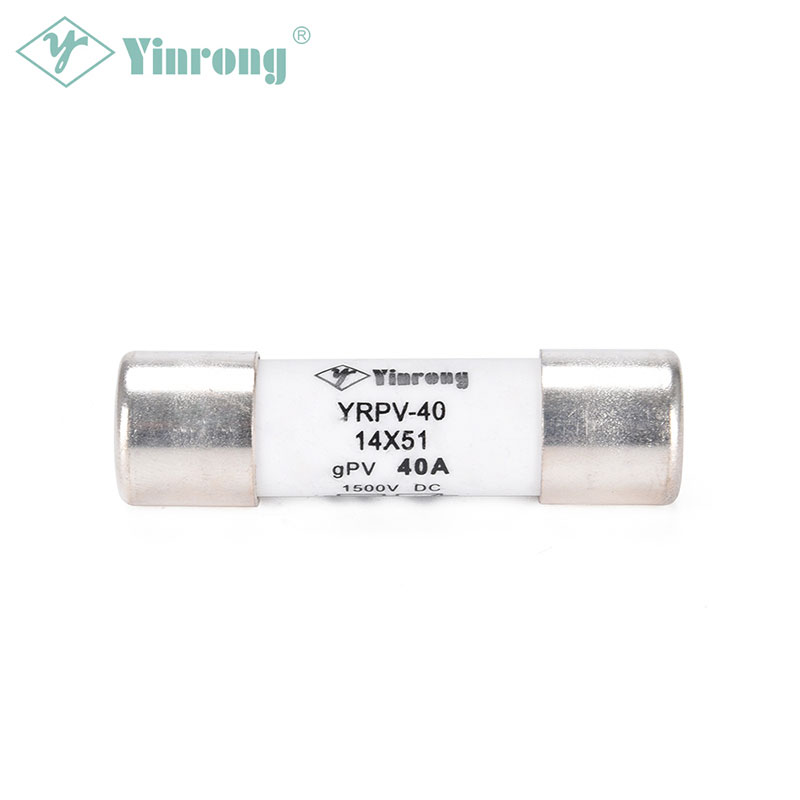

1000VDC 40A 14×51mm Solar PV Thermal Fuse Link
  • 1000VDC 40A 14×51mm Solar PV Thermal Fuse Link1000VDC 40A 14×51mm Solar PV Thermal Fuse Link
  • 1000VDC 40A 14×51mm Solar PV Thermal Fuse Link1000VDC 40A 14×51mm Solar PV Thermal Fuse Link
  • 1000VDC 40A 14×51mm Solar PV Thermal Fuse Link1000VDC 40A 14×51mm Solar PV Thermal Fuse Link
  • 1000VDC 40A 14×51mm Solar PV Thermal Fuse Link1000VDC 40A 14×51mm Solar PV Thermal Fuse Link

1000VDC 40A 14×51mm Solar PV Thermal Fuse Link

YRPV-40 1000VDC Solar PV Fuse Link was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings. This cylindrical style fuse link with a 14×51mm compact size can protect 1000VDC Photovoltaic (PV) systems safely. 1000VDC 40A 14×51mm Solar PV Thermal Fuse Link offers multiple ampere ratings from 10A to 40A, which are capable of interrupting overload current associated with faulted Photovoltaic (PV) systems. Zhejiang Galaxy Fuse Co., Ltd. (Yinrong), a front-line Chinese Solar PV Fuse manufacturer, aims to provide customers with safer circuit protection.

Send Inquiry

Product Description

1000VDC 40A 14×51mm Solar PV Thermal Fuse Link

Approvals & Standards

• IEC60269-6
• GB/T13539.6

Class of Operation

• gPV

Features & Benefits

• 1000VDC Photovoltaic (PV) system available
• 10-40A ampere ratings available
• Meets IEC60269-6 standard for global acceptance
• Compact cylindrical construction
• Low power dissipation and temperature rise features for longer life cycle
• DIN Rail mountable

Applications

• Inverters
• Combiner boxes
• Battery charge controllers

Recommended Fuse Holder

• YRPV-40 1000VDC Fuse Holder

Country of Origin

• People's Republic of China

Parameters

Product code Rated current Breaking capacity Safety certificate Power loss
1.0In(W)
Net weight



YRPV40NF 10-40A 1000Vdc:25kA 6.3 24.5g

Note:DENOTES FOR CERTIFICATION APPROVED;DENOTES FOR PENDING CERTIFICATION

Size (mm)

Model Explanation

① ……Galaxy fuse code……YR

②……“Photovoltaic”……PV

③……Maximum rated current of fuse……40A

④ ……Rated current of fuse link……E.g:15A

Time-current Characteristic

Standard:IEC60269-6 & GB/T 13539.6
113% In 145% In
>1h non fusing <1h fusing

Time-current Curve

We reserve the right to make technical alterations
